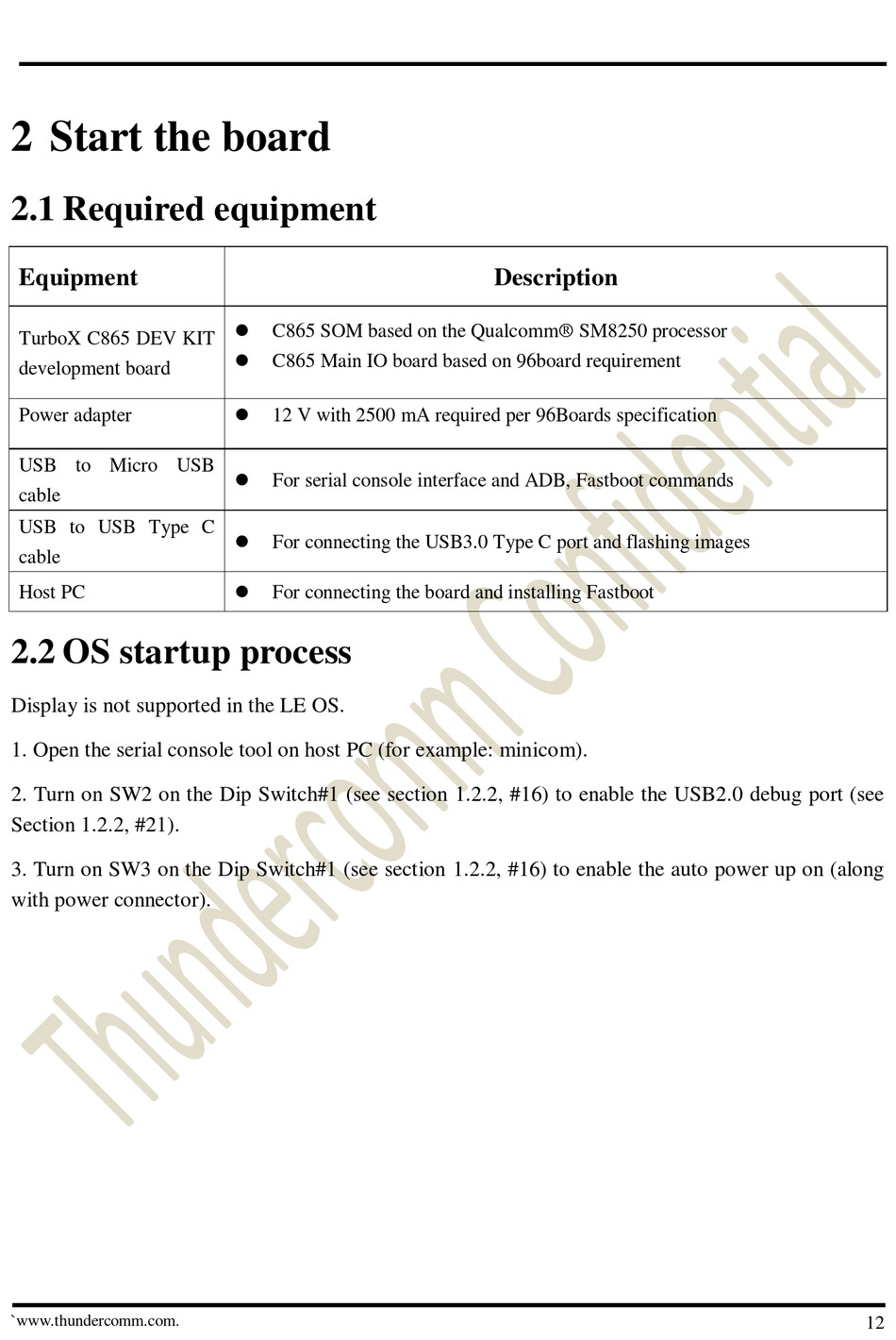

2 Start the board

2.1 Required equipment

Equipment
TurboX C865 DEV KIT
development board
Power adapter
USB to Micro USB
cable
USB to USB Type C
cable
Host PC

2.2 OS startup process

Display is not supported in the LE OS.
1. Open the serial console tool on host PC (for example: minicom).
2. Turn on SW2 on the Dip Switch#1 (see section 1.2.2, #16) to enable the USB2.0 debug port (see
Section 1.2.2, #21).
3. Turn on SW3 on the Dip Switch#1 (see section 1.2.2, #16) to enable the auto power up on (along
with power connector).
`www.thundercomm.com.

C865 SOM based on the Qualcomm® SM8250 processor

C865 Main IO board based on 96board requirement

12 V with 2500 mA required per 96Boards specification

For serial console interface and ADB, Fastboot commands

For connecting the USB3.0 Type C port and flashing images

For connecting the board and installing Fastboot
Description
