- Page 1 Thundercomm TurboX C410/610 Open Kit Quick Start Guide Rev. V1.1.2 tc-g-2111.2...
-
Page 2: Package List
(1). Due to PSE regulations, there is no inbox adapter for the products sold to Japan. Please contact your distributor if you have any needs. Voltage input to DK: typical 12V. Power adapter: ≥ 2A. DC in jack size: 2.5mm x 5.5mm (inner diameter x outer diameter). Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved. -

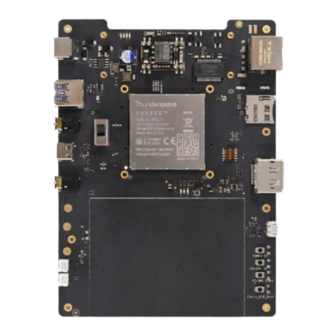

Page 3: Board Layout
10. BAT thermal pad 22. JTAG debug connector 34. Camera MEZZ board connector 11. VBAT - pad 23. Micro SD card slot 35. Digital microphone 6 12. Speaker connector 1 24. Wi-Fi/BT antenna connector Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved. - Page 4 System File Access Sequence 1. eMMC 2. Micro SD on SDC2 3. USB on USB3.1 (SS/FS/FS) 1. Micro SD on SDC2 2. eMMC Micro SD on SDC2 USB on USB3.1 (SS/FS/FS) UFS HS-G1 3.1 Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved.
-
Page 5: Let's Get Started
7. Press the power on button (connector 17) to boot up the device. NOTE: Connect the board to PC through USB 3.1 Gen1 USB Type-C connector (connector 7) if you need the adb function. Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved. - Page 6 Optional Camera Modules Sony IMX577 Camera Module Kit Sony IMX415 Camera Module Kit Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved.
- Page 7 Step 2. Follow the sub-steps below. 1) Align the location holes of the four screws (M1.4) of Mezz A board to the screw holes of four copper nuts of the Open Kit board. Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved.
- Page 8 2) Press the nuts to fasten the connection of high-speed connectors. 3) Fix the mezzanine board with screws. Step 3. Preview the camera stream on the Snapdragon camera App. Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved.
- Page 9 Step 2. Follow the sub-steps below. 1) Align the location holes of the four screws (M1.4) of Mezz B board to the screw holes of four copper nuts of the Open Kit board. Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved.
- Page 10 2) Press the nuts to fasten the connection of high-speed connectors. 3) Fix the mezzanine board with screws. Step 3. Preview the camera stream on the Snapdragon camera App. Step 4. Test HDMI IN feature with the hdminin_1920x1080 App. Copyright© 2024 Thundercomm Technology Co., Ltd. All rights reserved.
- Page 11 The products described in this document are not intended for use in implantation or other life support applications failure to claim or delay in claiming such rights shall not be deemed to be a waiver of such rights by Thundercomm.
