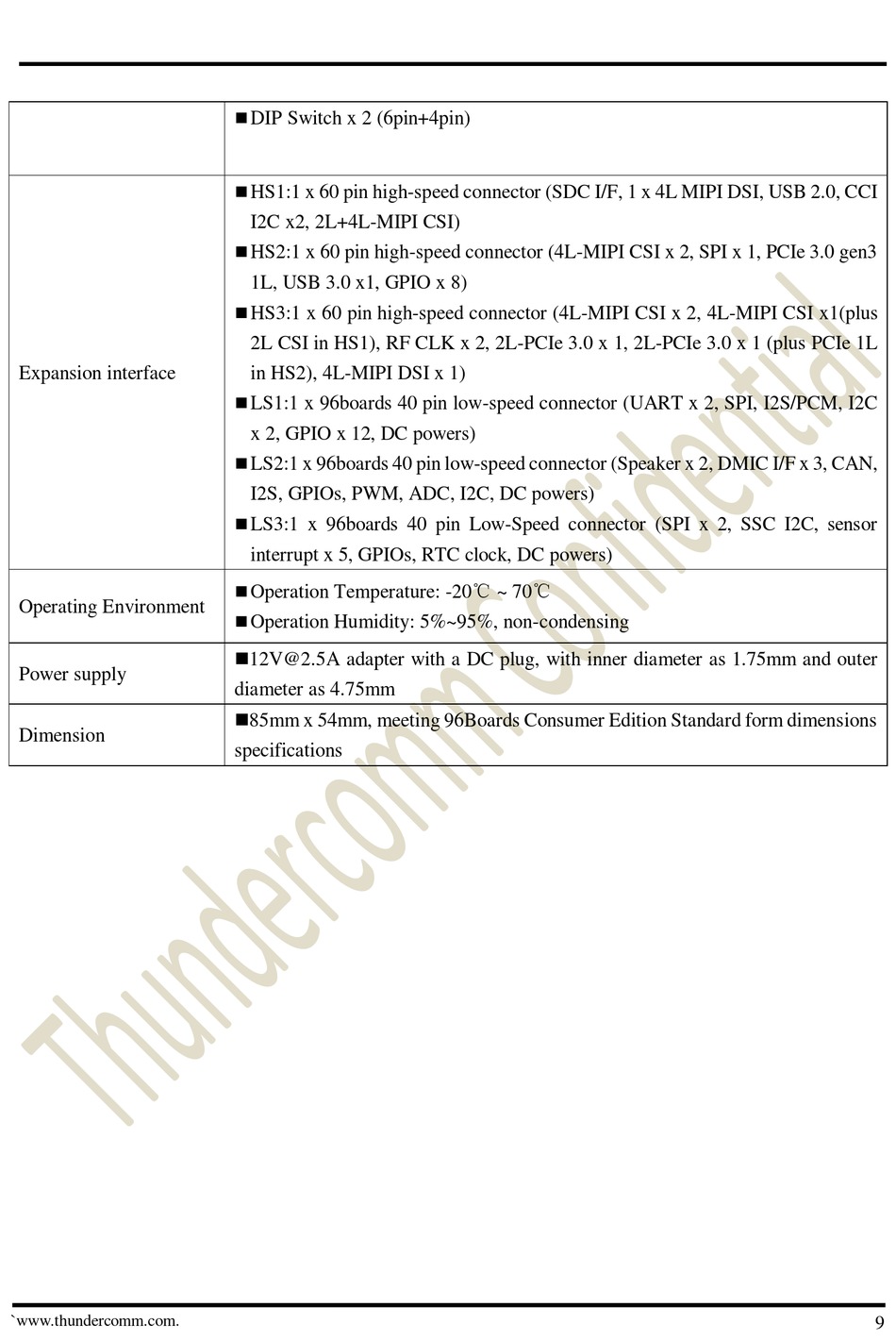

Thundercomm TurboX C865 Dev Kit Hardware User's Manual page 9

Expansion interface
Operating Environment
Power supply
Dimension
`www.thundercomm.com.

DIP Switch x 2 (6pin+4pin)

HS1:1 x 60 pin high-speed connector (SDC I/F, 1 x 4L MIPI DSI, USB 2.0, CCI
I2C x2, 2L+4L-MIPI CSI)

HS2:1 x 60 pin high-speed connector (4L-MIPI CSI x 2, SPI x 1, PCIe 3.0 gen3
1L, USB 3.0 x1, GPIO x 8)

HS3:1 x 60 pin high-speed connector (4L-MIPI CSI x 2, 4L-MIPI CSI x1(plus
2L CSI in HS1), RF CLK x 2, 2L-PCIe 3.0 x 1, 2L-PCIe 3.0 x 1 (plus PCIe 1L
in HS2), 4L-MIPI DSI x 1)

LS1:1 x 96boards 40 pin low-speed connector (UART x 2, SPI, I2S/PCM, I2C
x 2, GPIO x 12, DC powers)

LS2:1 x 96boards 40 pin low-speed connector (Speaker x 2, DMIC I/F x 3, CAN,
I2S, GPIOs, PWM, ADC, I2C, DC powers)

LS3:1 x 96boards 40 pin Low-Speed connector (SPI x 2, SSC I2C, sensor
interrupt x 5, GPIOs, RTC clock, DC powers)

Operation Temperature: -20℃ ~ 70℃

Operation Humidity: 5%~95%, non-condensing
12V@2.5A adapter with a DC plug, with inner diameter as 1.75mm and outer
diameter as 4.75mm
85mm x 54mm, meeting 96Boards Consumer Edition Standard form dimensions
specifications
