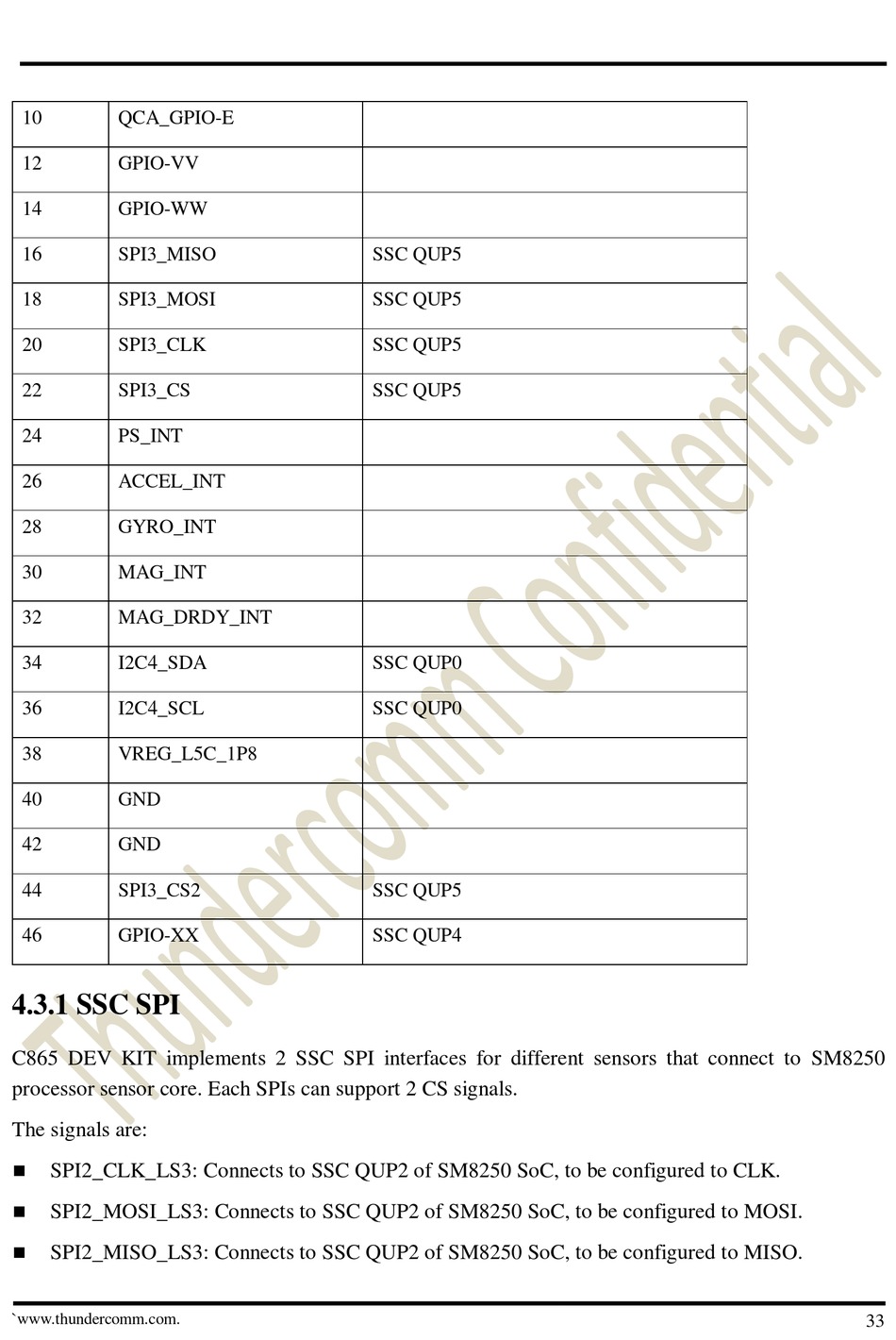

Ssc Spi - Thundercomm TurboX C865 Dev Kit Hardware User's Manual

10 QCA_GPIO-E
12 GPIO-VV
14 GPIO-WW
16 SPI3_MISO
18 SPI3_MOSI
20 SPI3_CLK
22 SPI3_CS
24 PS_INT
26 ACCEL_INT
28 GYRO_INT
30 MAG_INT
32 MAG_DRDY_INT
34 I2C4_SDA
36 I2C4_SCL
38 VREG_L5C_1P8
40 GND
42 GND
44 SPI3_CS2
46 GPIO-XX

4.3.1 SSC SPI

C865 DEV KIT implements 2 SSC SPI interfaces for different sensors that connect to SM8250
processor sensor core. Each SPIs can support 2 CS signals.
The signals are:

SPI2_CLK_LS3: Connects to SSC QUP2 of SM8250 SoC, to be configured to CLK.

SPI2_MOSI_LS3: Connects to SSC QUP2 of SM8250 SoC, to be configured to MOSI.

SPI2_MISO_LS3: Connects to SSC QUP2 of SM8250 SoC, to be configured to MISO.
`www.thundercomm.com.
SSC QUP5
SSC QUP5
SSC QUP5
SSC QUP5
SSC QUP0
SSC QUP0
SSC QUP5
SSC QUP4
33
