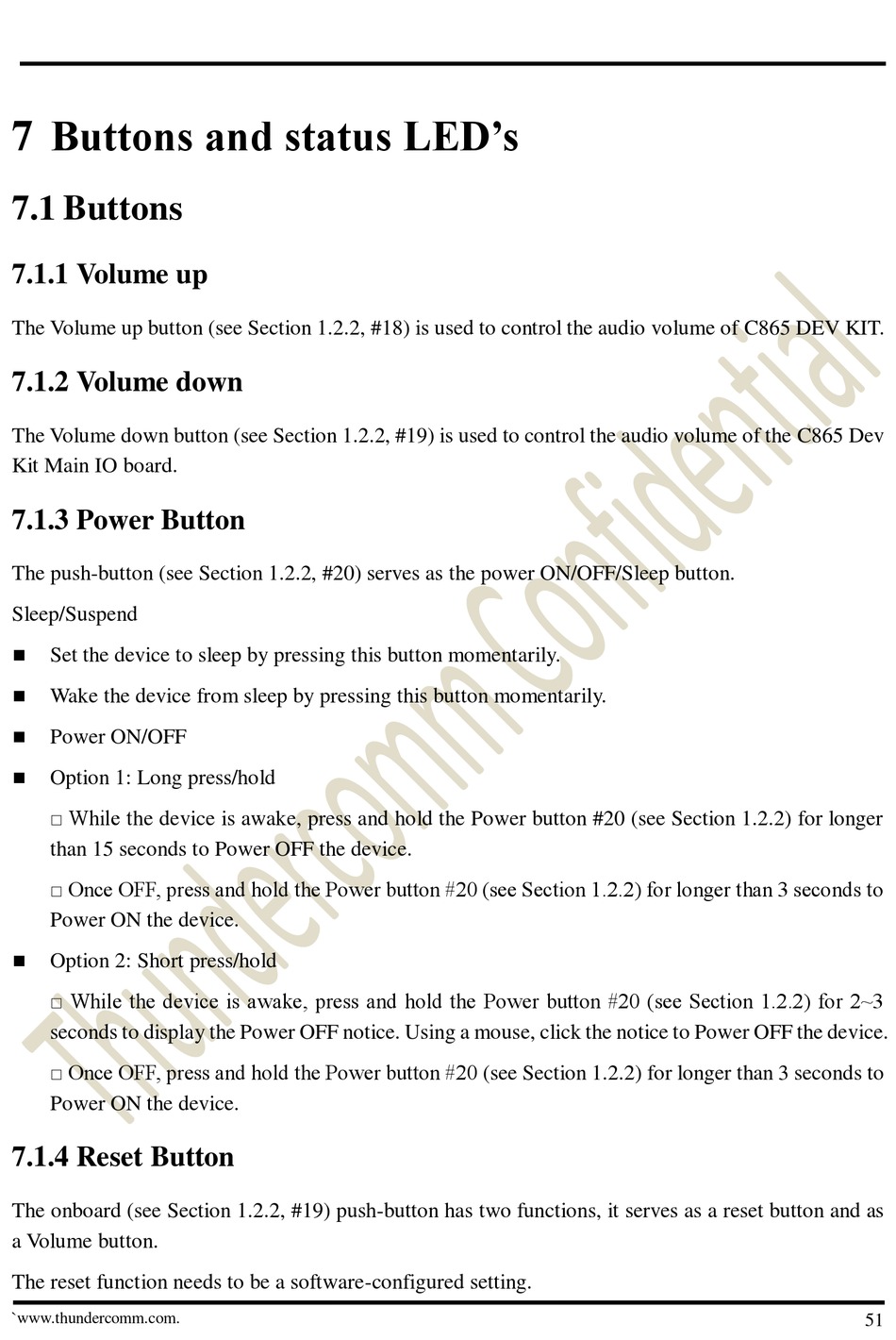

7 Buttons and status LED's

7.1 Buttons

7.1.1 Volume up

The Volume up button (see Section 1.2.2, #18) is used to control the audio volume of C865 DEV KIT.

7.1.2 Volume down

The Volume down button (see Section 1.2.2, #19) is used to control the audio volume of the C865 Dev
Kit Main IO board.

7.1.3 Power Button

The push-button (see Section 1.2.2, #20) serves as the power ON/OFF/Sleep button.
Sleep/Suspend

Set the device to sleep by pressing this button momentarily.

Wake the device from sleep by pressing this button momentarily.

Power ON/OFF

Option 1: Long press/hold
□ While the device is awake, press and hold the Power button #20 (see Section 1.2.2) for longer
than 15 seconds to Power OFF the device.
□ Once OFF, press and hold the Power button #20 (see Section 1.2.2) for longer than 3 seconds to
Power ON the device.

Option 2: Short press/hold
□ While the device is awake, press and hold the Power button #20 (see Section 1.2.2) for 2~3
seconds to display the Power OFF notice. Using a mouse, click the notice to Power OFF the device.
□ Once OFF, press and hold the Power button #20 (see Section 1.2.2) for longer than 3 seconds to
Power ON the device.

7.1.4 Reset Button

The onboard (see Section 1.2.2, #19) push-button has two functions, it serves as a reset button and as
a Volume button.
The reset function needs to be a software-configured setting.
