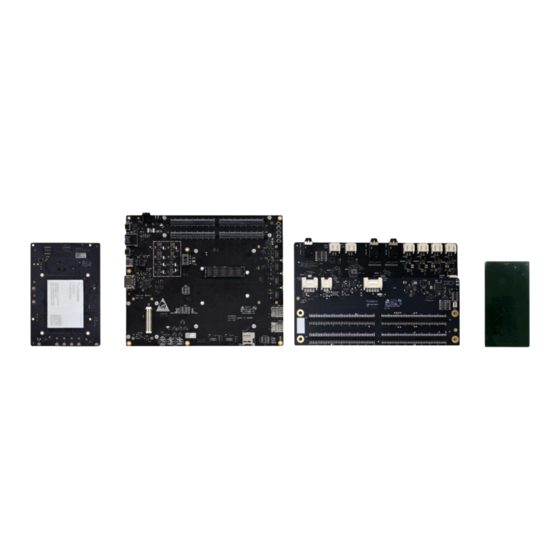

- Page 1 Thundercomm TurboX CT4490-CN Development Kit Quick Start Guide Rev. V1.0 tc-T-2110...
-
Page 2: Package List
LCD Touch Panel* Antenna (x 8) Speaker (x 2) Camera Module Power Adapter *NOTE: All parts are included in advanced DK package. Parts marked * are not included in standard DK package. Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. -
Page 3: Interface List
6. PCIe connector 13. Wi-Fi/BT/GPS antenna slot 1 20. Power on button 7. SIM card slot 2 14. Camera module connector 0 21. Speaker connector 2 * Currently unavailable on CT4490-CN. Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. -
Page 4: Let's Get Started
Type-C USB connector (connector 4) if adb tool is needed. Micro USB connector (for UART debug) (connector 1) if debug function is needed. 5. Long-press Power on button (connector 20) to boot up the device. Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. - Page 5 The products described in this document are not intended for use in implantation or other life support applications failure to claim or delay in claiming such rights shall not be deemed to be a waiver of such rights by Thundercomm.
