- Page 1 Thundercomm TurboX CT7280 Development Kit Quick Start Guide Rev. V1.0 tc-M2-2110...
-
Page 2: Package List

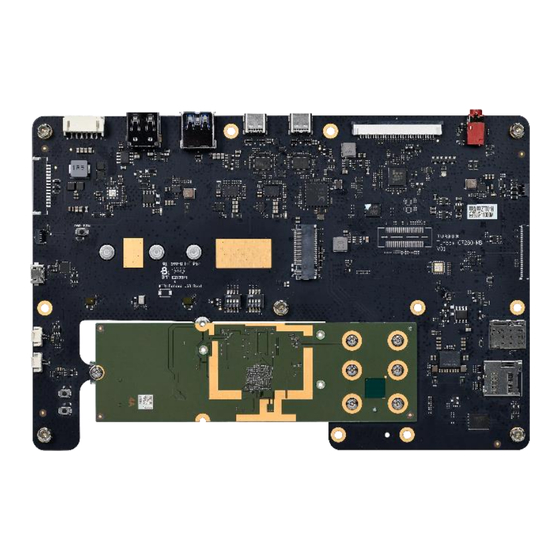

Package List CT7280 Main Board + SC7280 QCARD Speaker (x2) Wi-Fi/BT Antenna (x2) Cellular Antenna (x4) Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. - Page 3 11. TF card slot 25. Red LED 12. SIM card slot 26. Type-A USB 2.0 connector 13. DIP switch 2 (SW4402) 27. Battery connector 14. DIP switch 1 (SW4401) 28. EDP CSI connector Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved.
-
Page 4: Let's Get Started
A USB keyboard and mouse can be used for Windows operations. The TYPE-C port can be used to power the system or charge the battery. Please use normal shutdown process to avoid forced power off. Copyright© 2023 Thundercomm Technology Co., Ltd. All rights reserved. - Page 5 The products described in this document are not intended for use in implantation or other life support applications failure to claim or delay in claiming such rights shall not be deemed to be a waiver of such rights by Thundercomm.
