- Page 1 Thundercomm TurboX C2210 Development Kit Quick Start Guide Rev. V1.0 tc-y-2110...
-
Page 2: Package List
Audio Board + Senser Board (assembly) Power Adapter Wi-Fi/BT Antenna GPS Antenna Speaker (x2) Camera Module NOTE: All parts are included in advanced DK package. Parts marked are not included in standard DK package. Copyright© 2022 Thundercomm Technology Co., Ltd. All rights reserved. -

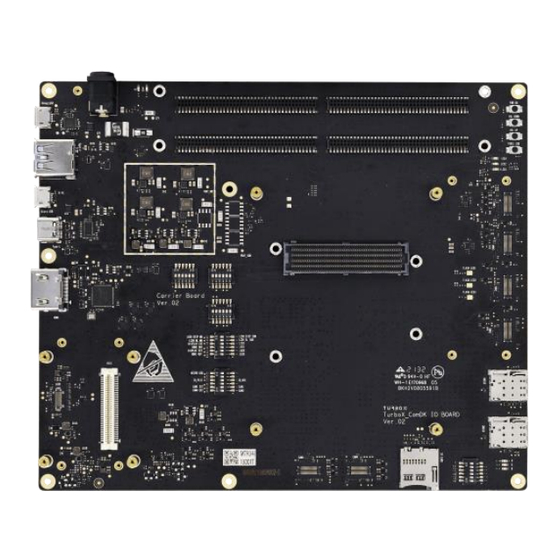

Page 3: Interface List
* indicates that these interfaces are unavailable on C2210. The above board layout is compliant with Common DK HW version v02. For v01 relevant quick start guide, please contact us at service@thundercomm.com. Copyright© 2022 Thundercomm Technology Co., Ltd. All rights reserved. -
Page 4: Let's Get Started
Type-C USB port (connector 25) if adb tool is needed. Micro USB port (for UART debug) (connector 28) if debug function is needed. 6. Press Power on button (connector 1) to boot up the device. Copyright© 2022 Thundercomm Technology Co., Ltd. All rights reserved. - Page 5 The products described in this document are not intended for use in implantation or other life support applications failure to claim or delay in claiming such rights shall not be deemed to be a waiver of such rights by Thundercomm.
