the low-speed expansion connector to meets the 96Boards requirements.

DC12V: DC jack input can serve as the main power source.

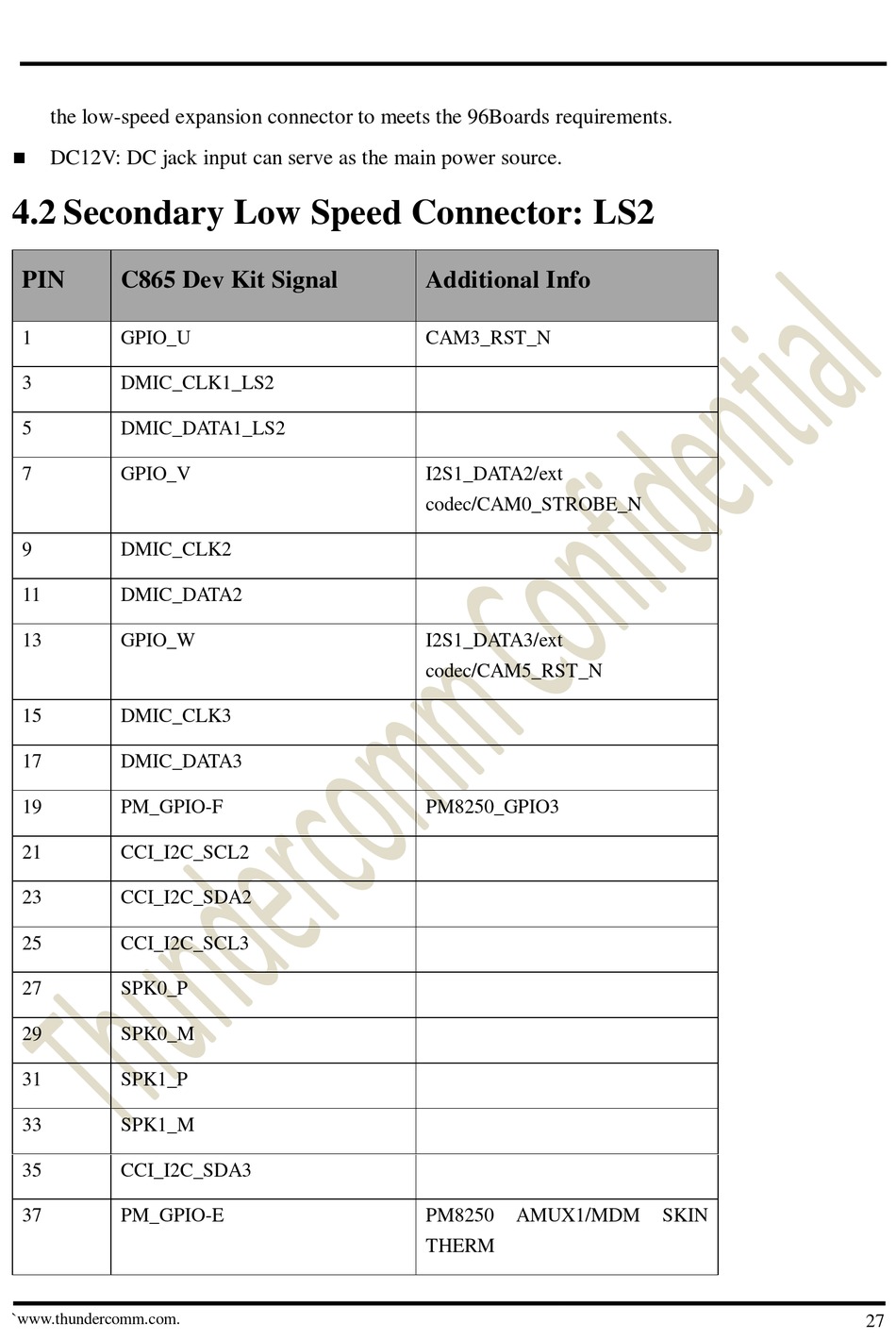

4.2 Secondary Low Speed Connector: LS2

PIN C865 Dev Kit Signal
1 GPIO_U
3 DMIC_CLK1_LS2
5 DMIC_DATA1_LS2
7 GPIO_V
9 DMIC_CLK2
11 DMIC_DATA2
13 GPIO_W
15 DMIC_CLK3
17 DMIC_DATA3
19 PM_GPIO-F
21 CCI_I2C_SCL2
23 CCI_I2C_SDA2
25 CCI_I2C_SCL3
27 SPK0_P
29 SPK0_M
31 SPK1_P
33 SPK1_M
35 CCI_I2C_SDA3
37 PM_GPIO-E
`www.thundercomm.com.
Additional Info
CAM3_RST_N
I2S1_DATA2/ext
codec/CAM0_STROBE_N
I2S1_DATA3/ext
codec/CAM5_RST_N
PM8250_GPIO3
PM8250 AMUX1/MDM
THERM
SKIN
