OPTIONAL COMPONENTS

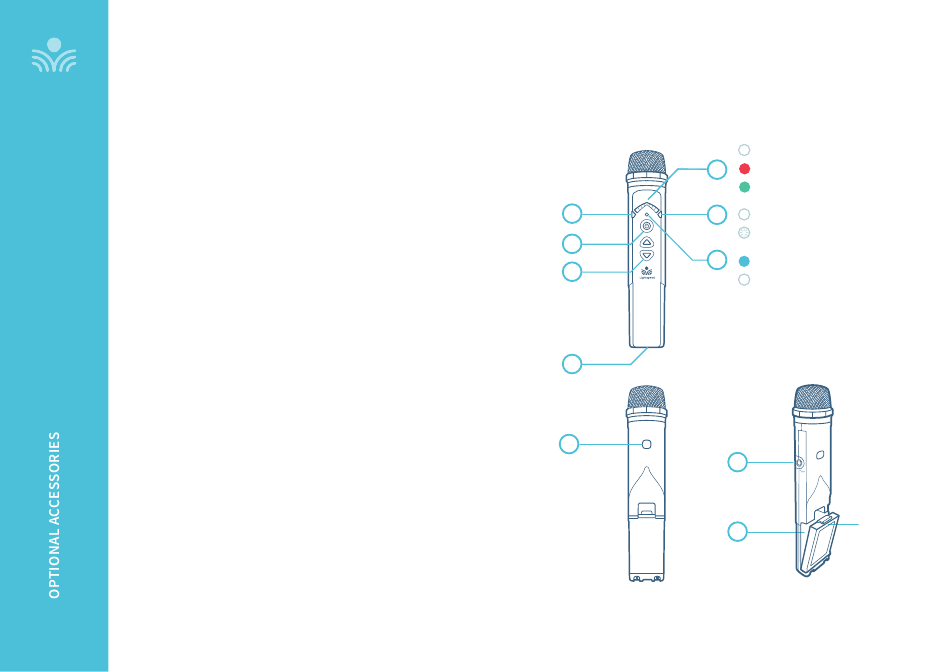

Sharemike Controls and Connections

1. POWER BUTTON
2. POWER STATUS LIGHT
Red light: During operation, turns red to indicate low battery
White light: Normal operation
When charging in Cradle Charger:
Red light: Charging
Green light: Charging complete
MIC 1 STATUS: Lighted to indicate microphone is registered as Mic 1
3.
White: solid = Normal operation
White: flashing = Linking in process
MIC 2 STATUS: Lighted to indicate microphone is registered as Mic 2
4.
White: solid = Normal operation
White: flashing = Linking in process
5. MUTE/TALK STATUS LIGHT
Blue: solid = Talk
White: solid = Mute
6. MICROPHONE VOLUME UP/DOWN
USB INPUT: Connect audio source to send to 975. USB input can
7.
also be used for charging.
IR TRANSMITTER: For pairing to base unit
8.
9. AUDIO INPUT: Plug a laptop or other audio device into this jack to
wirelessly transmit the audio signal to be played through the system.
10. VOLUME LOCK: Disables volume controls.
26
2
3
4
1
5
6
7
8
9
10
UNDER
BATTERY
PACK
normal operation
charging in progress
charging complete
normal operation
linking in progress (flashing)
TALK
mute
BATTERY
REMOVAL
LATCH
