Activate Station: Controls and Connections

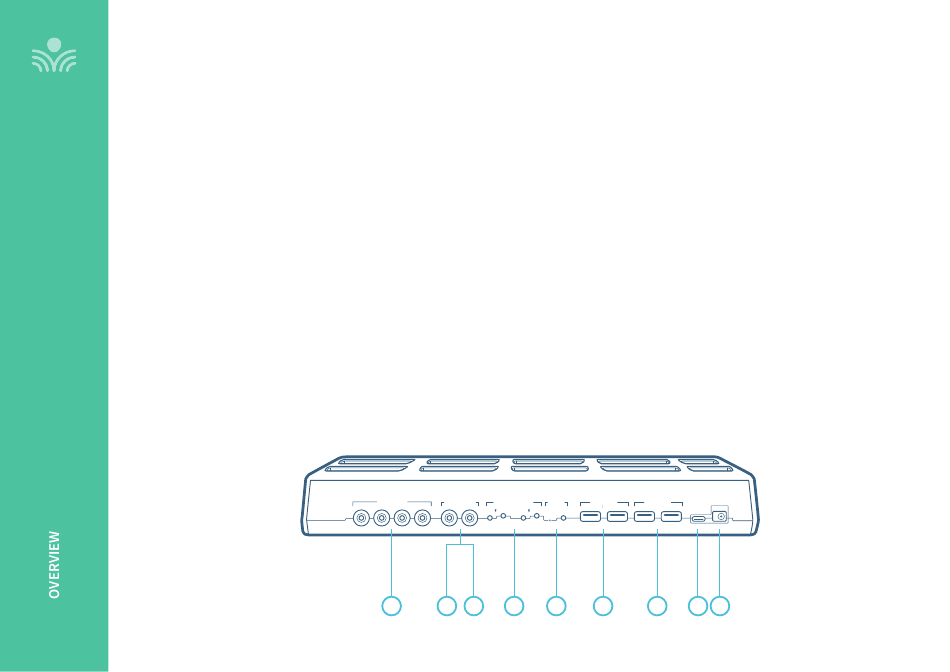

BACK PANEL
1. AUDIO INPUTS (1-4): Connect a multimedia audio source to wirelessly
send the audio to be played through the whole classroom speaker(s).
2. AUDIO OUTPUT (ALD): Connect Assistive Listening Device to send the
whole classroom audio to an individual student's device.
3. AUDIO OUTPUT (REC): Connect recording device to capture whole
classroom audio from the teachers' microphone. When Record is toggled
on in the app, the output provides a fixed level that does not change when
the Audio Out volume is adjusted.
BLUETOOTH PAIRING (1-2): Press this button to pair Activate to a mobile
4.
device. Download the Lightspeed Activate app from the iOS App Store or
Google Play for complete instructions.
8
5.
6.
7.
8.
9.
Access
Audio Inputs Audio Outputs Bluetooth Pairing
Pair
1 2
1 2 3 4 5
ACCESS PAIR: This button is used to pair the Activate Station with the
classroom audio system. If purchased together this is done by default at
the factory.
USB CHARGE OUTPUTS (PHONE/PODS): Use the first two USB ports to
charge a mobile phone or additional Pods.
USB CHARGE OUTPUTS (PODS): Use these two USB ports to charge
additional Pods.
AUX POWER INPUT: 5V USB power from a laptop or USB power pack can
be used in a portable application to power the Activate Station wireless
audio functions (in place of the standard 24V power supply). Note :
Charging is disabled when auxiliary power is used.
POWER: Plug the primary 24V/1.75A power supply into this jack.
Charge Out (5V USB
Charging Disabled When Aux Power Used
Power
Phone/Pods Pods/Remote
24VDC/1.75A
Aux
1.0A 500mA
Power Input
5VDC/0.3A
6 7 8 9
