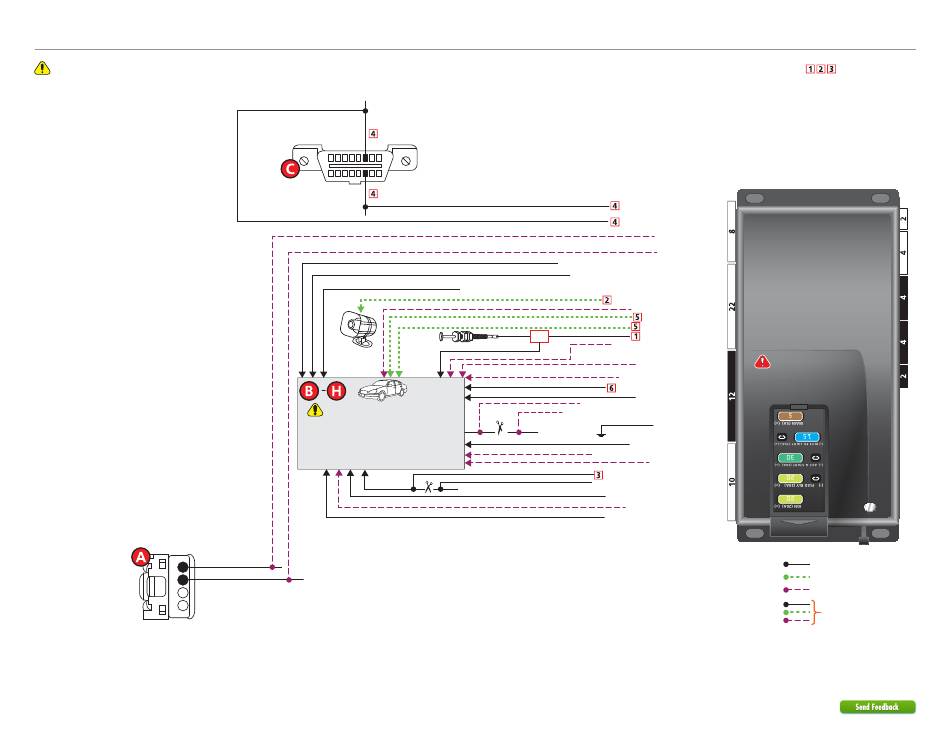

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
RX: Gray/Red, pin 4
4
3
TX: White/Red, pin 3
2
1
PATS Transceiver
(black conn.
on ignition switch)
5 933.FORD1 4.17.193.2 2005 Lincoln LS
©2021 VOXX•DEI LLC. All rights reserved.
OBDII Diagnostic Connector,
under Driver Dash
HS CAN High: Gray/Red, pin 6
(connector side view)
1 8
9 16
HS CAN Low: Blue/Red, pin 14
Hood Pin
Siren
Refer to Vehicle Connections
or go to www.directechs.com for
more information on
vehicle-specific wiring
connections.
CUT
HS CAN Low: Orange/Brown: 3
HS CAN High: Orange/Green: 4
(-) Factory Alarm Arm Output: Lt.Green/Black: 1
(-) Trunk/Hatch Release Output: Red/White: 4
(-) Factory Alarm Disarm Output (flashed for double pulse): Lt.Blue/Black: 10
(+) Siren Output: Brown/Red: 11
(+) Brake Input: Brown: 14
OR
(AC) Tach Input: Violet/White: 22
(+) 12V Input: Blue/Red: 2
(+) Accessory 3 Output: Blue: 3
(-) Parking Lights: White: 5 & 11
(+) 12V Input: Red: 6 & 12
RAP Off Interrupt (conn. side): Lt. Green: 8
CUT
RAP Off Interrupt (veh. side): Lt. Green/White: 9
Driver Door
Trigger
(+) 12V Input: Red/Black: 2
(+) Accessory 2 Output: Pink/White: 4
Starter Input (conn. side): Green: 6
(+) Starter Output (veh. side): Violet: 7
(+) Accessory 1 Output: Orange: 8
(+) 12V Input: Red/White: 9
(+) Ignition Input/Ouput: Pink: 10
RX: Orange/Black: 7
TX: Yellow/Black: 8
(-) Trunk Input: Blue: 19
(-) Door Input: Green: 20
(-) Hood Input: Gray: 21
IMPORTANT:
Position the
fuses correctly!
(-) Ground: Black: 10
(+) 12V Input: Red: 5
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
).
