RF Systems

An RF System consists of one or multiple remotes, a Control Center (antenna), and an antenna cable – various combinations exist.
An RF System allows the vehicle owner to control the system with enhanced range. Two-way models are available. Please follow
the instructions included with the kit for appropriate installation and programming information.

When used in conjunction with SmartStart

To enable D2D communication between the DS3+/DS4+ and the SmartStart one of the following actions must be performed
before providing power to the SmartStart unit:

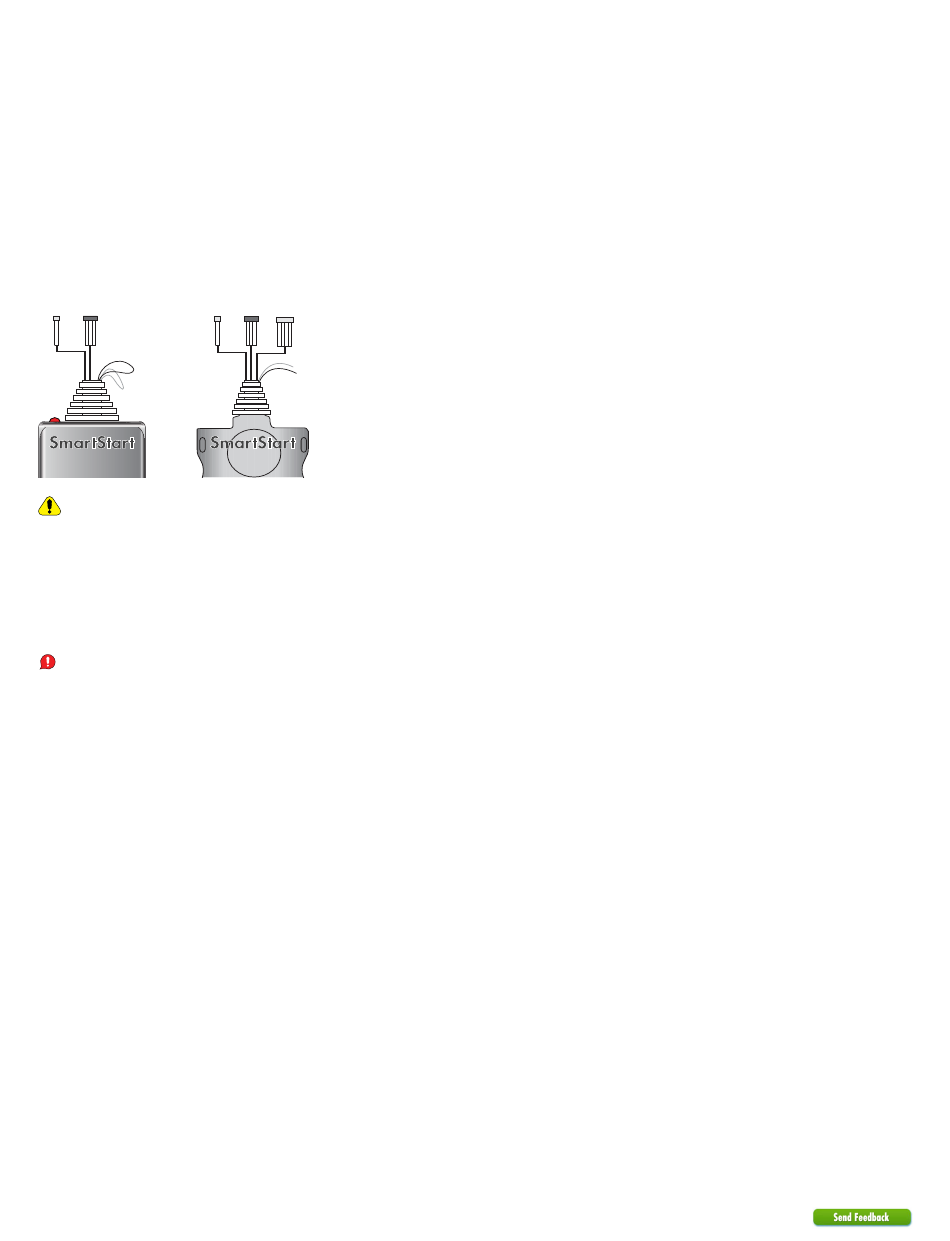

• SmartStart with Loops – The brown loop must be cut.
• SmartStart with Pigtails – The gray wire must be connected to a ground source.
Loops
DO NOT connect the SmartStart 2-pin power harness when using the DS3+/DS4+. Power and ground will be provided by
the D2D connector on the module. Refer to the SmartStart documentation for further details.

D2D port configuration

Caution! Do not connect the Control Center (antenna) or any digital sensors (8504D) to the white D2D1 port.
The white D2D1 port is reserved ONLY for SmartStart, Module flashing or 3rd Party bypass. The two black D2D2 ports are reserved for the
Control Center (antenna) and digital sensors (8504D).
11
933.FORD1 4.17.193.2 2005 Lincoln LS
©2021 VOXX•DEI LLC. All rights reserved.
Pigtails
