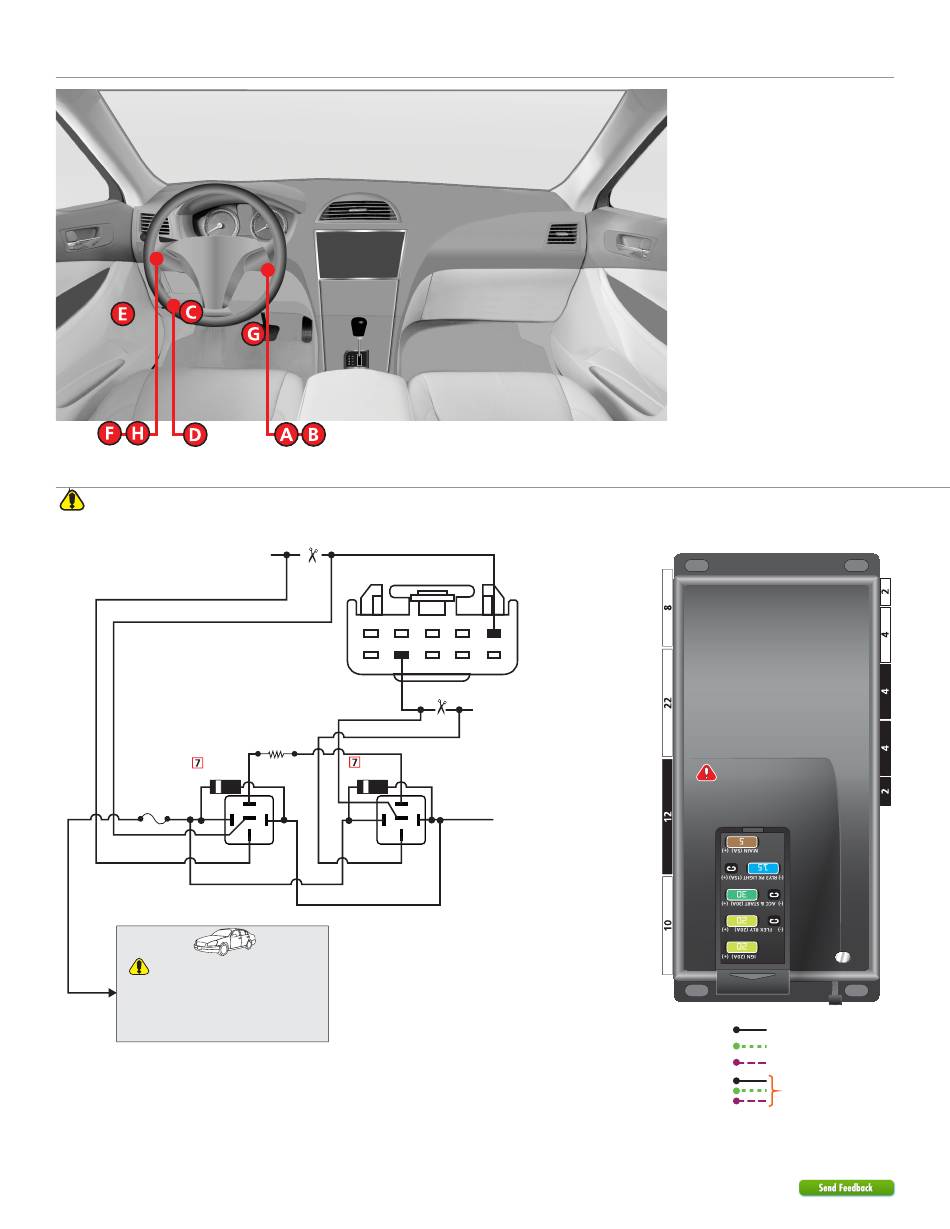

Locating components in the vehicle

Parking light connections
When using an external relay, use a 1N4002 diode or larger.
1A diode
[1N4002+]
Fuse 10A
86
Refer to Vehicle Connections
or go to www.directechs.com for
more information on
vehicle-specific wiring
connections.
6
933.FORD1 4.17.193.2 2005 Lincoln LS
©2021 VOXX•DEI LLC. All rights reserved.
CUT
(-) Parking Lights: White/Blue or White/Green, pin 5
1
6
Resistor 1800Ω
1A diode
[1N4002+]
87 86 87
85 85
87a 87a
30 30
5
10
(-) Parking Lights:
CUT
Brown/Green, pin 7
(-) Parking Lights Ouptut: White: 5 & 11
IMPORTANT:
Position the
fuses correctly!
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
