3 INSTALLATION
3.1 Preparation
If you received your Smart Coin System already mounted on the baseplate, remove it.
3.2 Baseplate Mounting Requirements

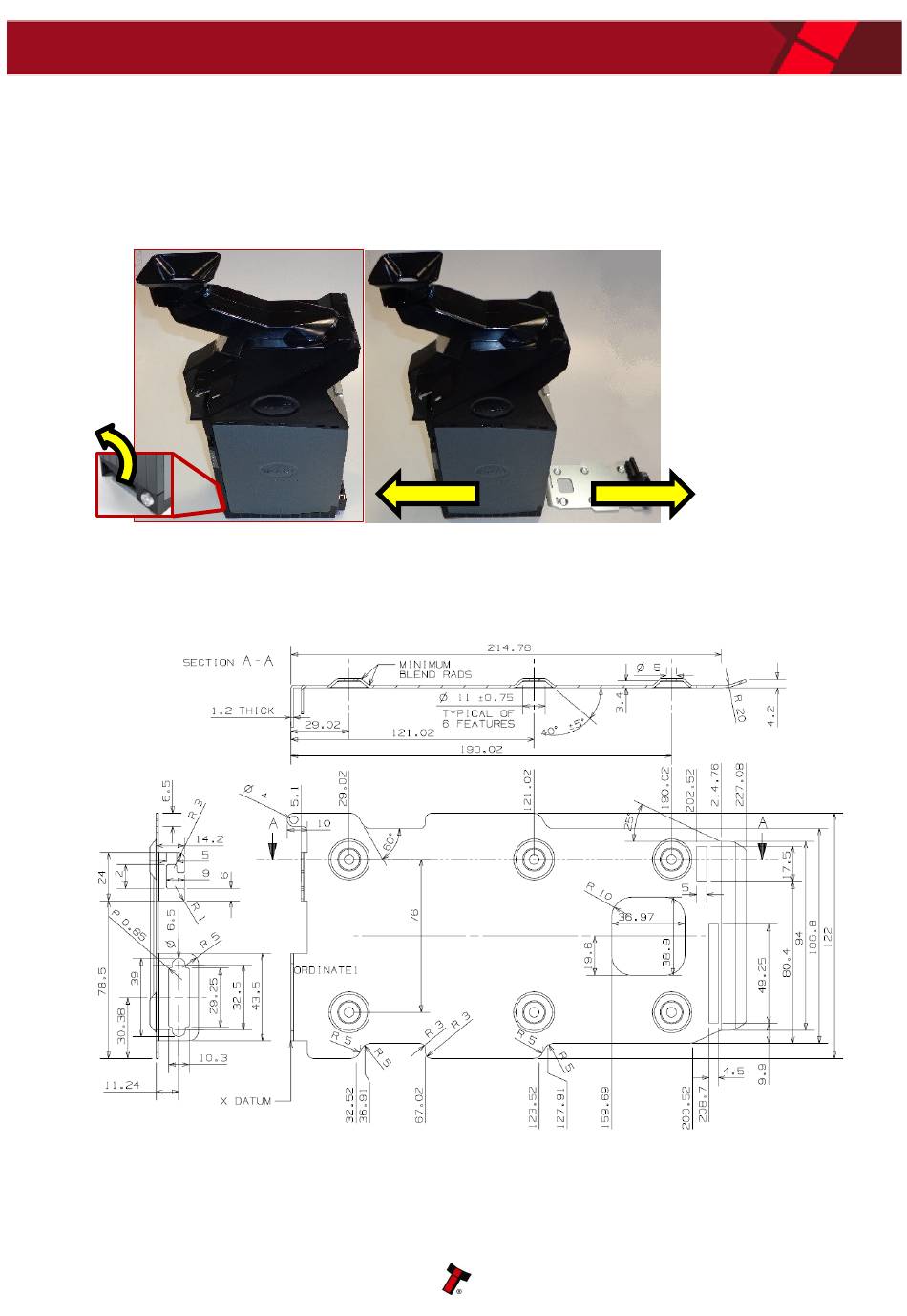

Ensure that the mounting position and note exit hole meets the dimensional
requirements as shown below (all dimensions are in millimetres mm):
The coins fall from the cashbox exit chute and are intended to be caught in the host
machine cashbox.
GA02033
