Smart Coin System User Manual
3.4 Connect the unit
Connect the cable from the host machine to the connector on the rear of the
mounting plate. See Mechanical & Electrical Documentation for connection details.
Apply power to the unit (host machine).

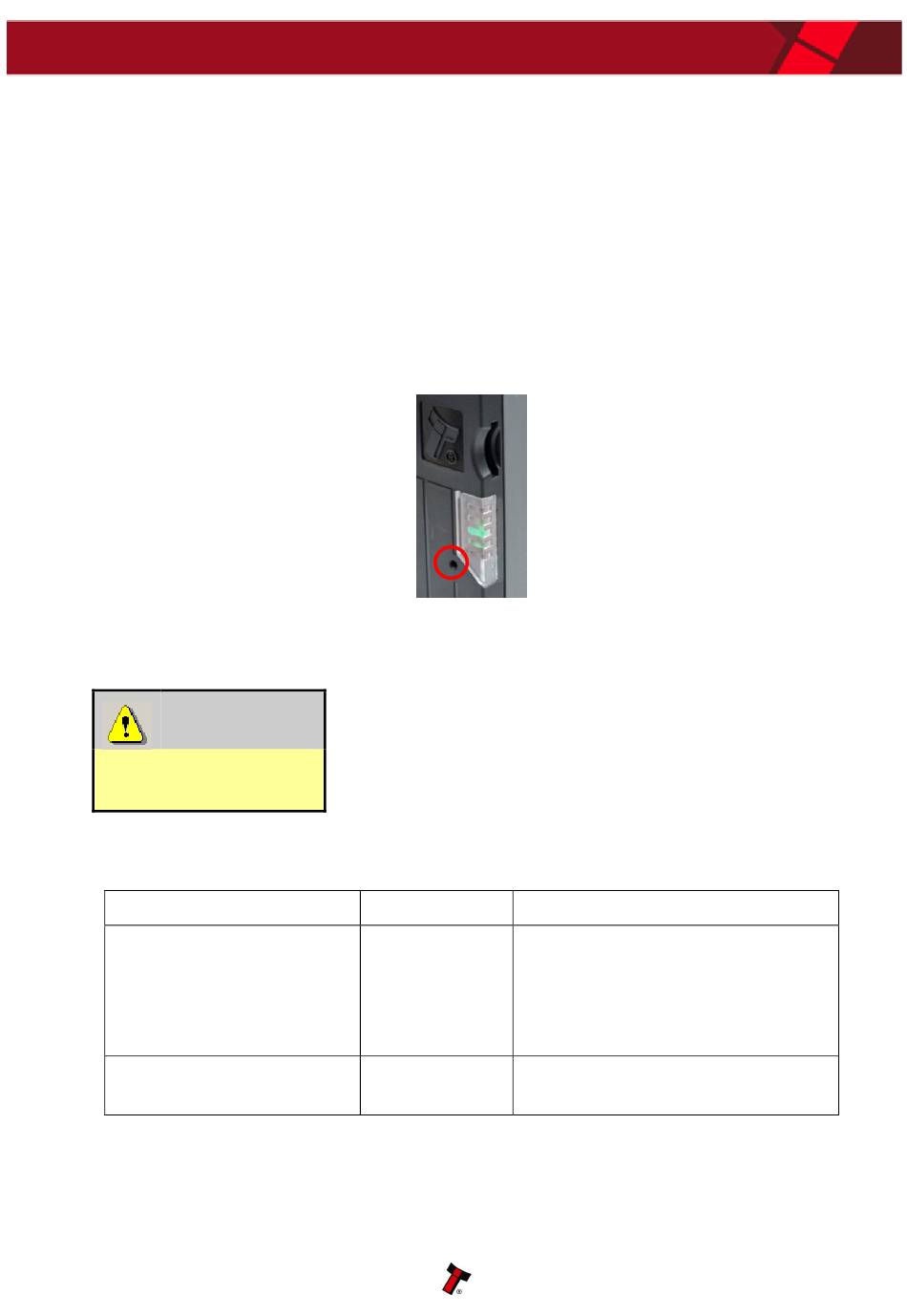

3.5 Configuration
The SMART Coin System does not use DIP switches to configure the unit –
configuration and setting is carried out by use of a Configuration Button on the front
of the SMART Coin System body (below/left of the Led cluster):
There are several functions available when using the Configuration Button, and these
are listed in the next table:
WARNING!
Risk of unit damage
3.5.1 Configuration Button Functions
Action
Press the button, then
press the button again
within 5 seconds (do not
double click a pause in
press is required)
Press and hold for longer
than 5 seconds
Copyright © Innovative Technology Ltd 2015
When in programming mode, do not turn off the
power before the operation is complete as this will
make the unit unusable.
Power Status Function
Powered ON
Switches interface between SSP
and CC2.
Powered ON
Switch between USB mode (CDE &
HID)
Page 8 of 28
GA02033
