4.3 Clearing a Jam from the Feeder

Before attempting to clear the jam you
must ensure the power has been
removed.
1. Empty all coins from the funnel.
2. Lift the catch on the front of the
feeder and lift the lid back.
3. Clear the jammed coin from the
disk and ensure it is free to rotate.
4. Wipe the track of any coin dust.
5. Ensure the diverter flap is able to
move, the flap should be capable
of opening onto the coin path.
6. Once all of the coins have been
cleared ensure the drive gear isn't
impeded.
7. Close the lid of the feeder and
reapply power.
8. Check for normal operation.
Copyright © Innovative Technology Ltd 2015

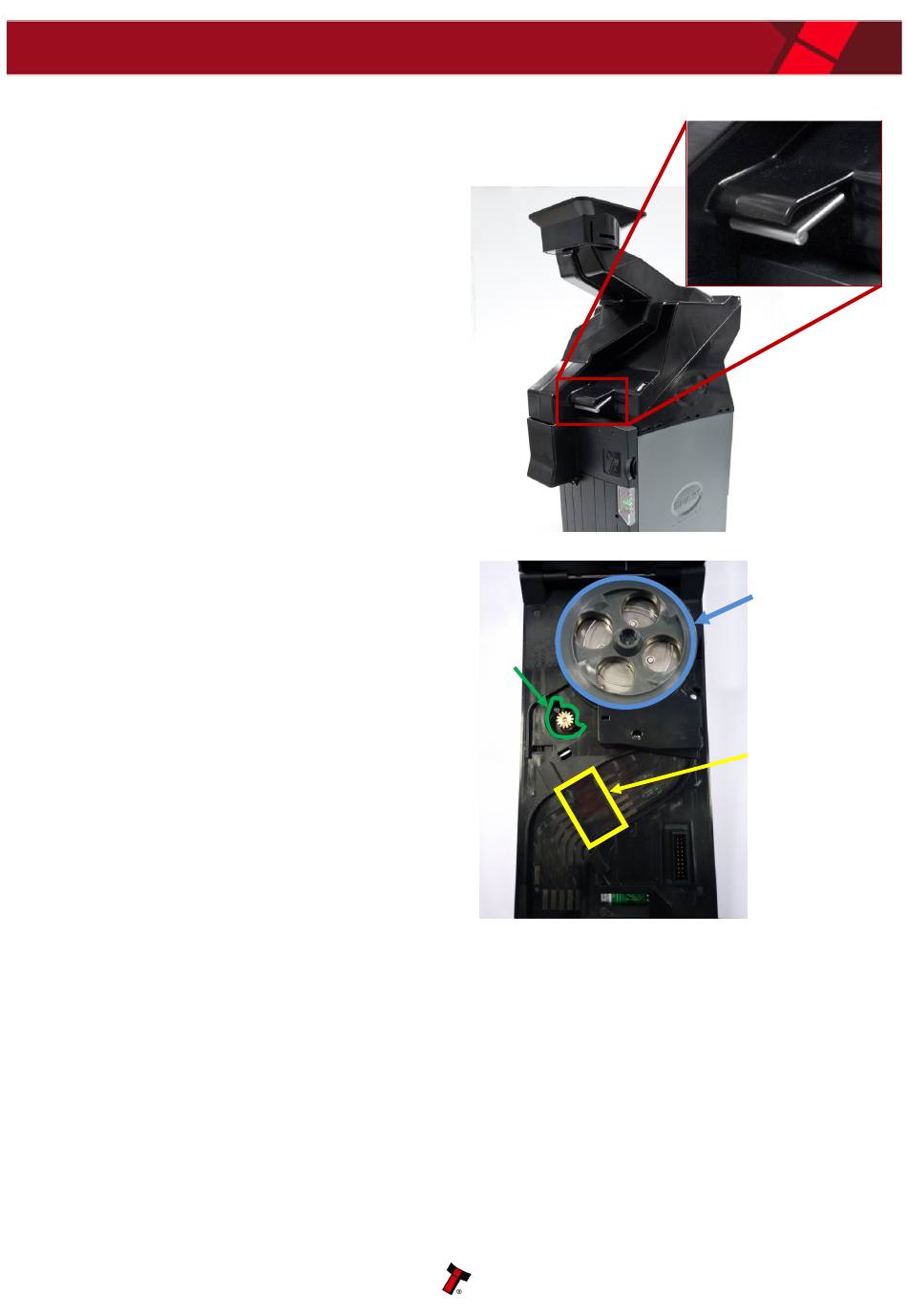

Drive
Gear
Page 15 of 28
Coin Disk
Diverter flap
GA02033
