Smart Coin System User Manual

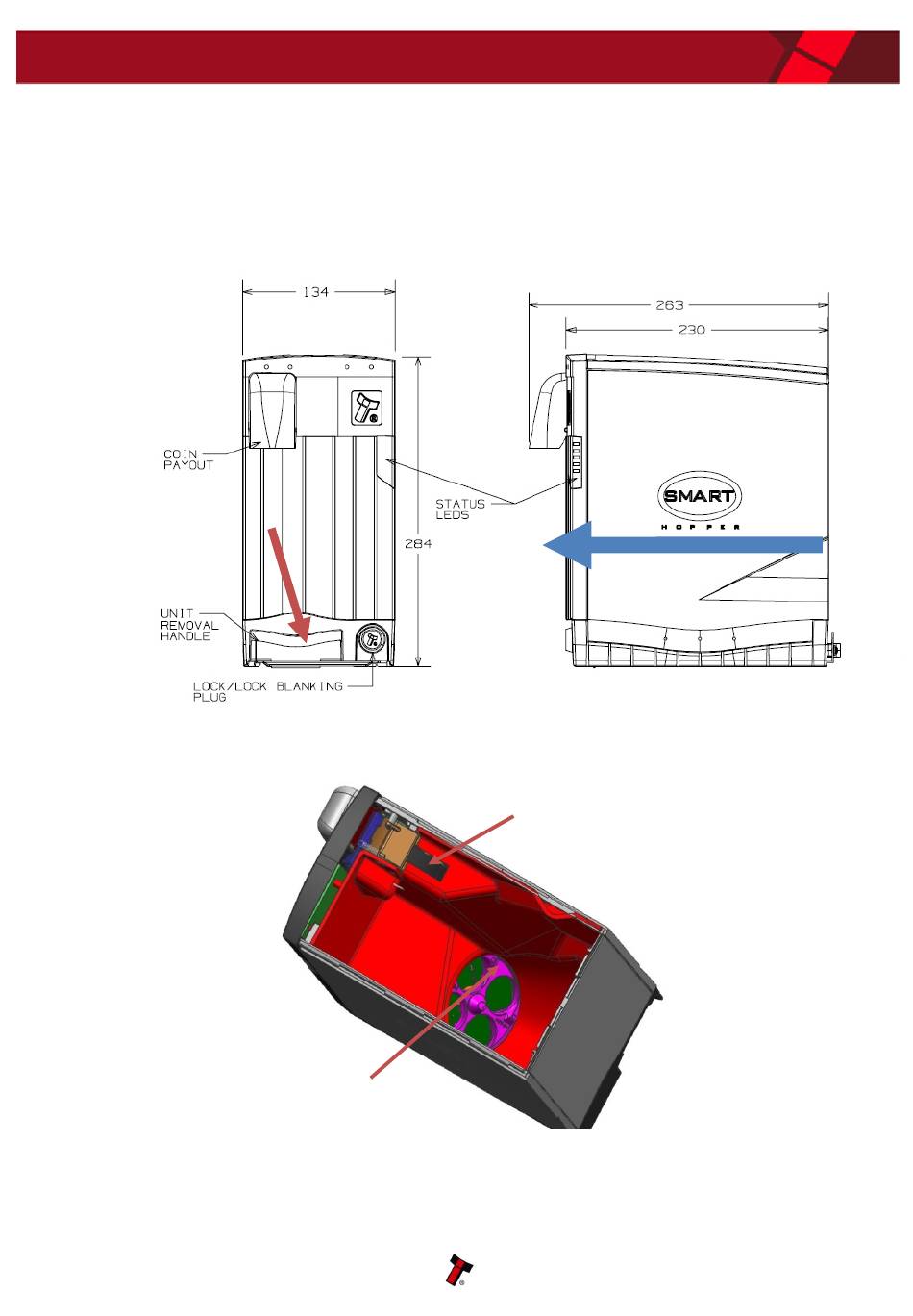

4.2 Clearing a Jam from the Hopper
1. Power off the SCS and remove 24volt 4 way power cable.
2. Remove the hopper from the mounting plate
3. Empty all coins from the coin bowl
4. Clear the jammed coin from the disk
Turn coil anti-clockwise but
be cautious to avoid harm.
Copyright © Innovative Technology Ltd 2015
Coins will
drop out
here
Page 12 of 28
GA02033
