DPC-2 CONTROL KIT Manual #50-06
b. All CHANNEL parameters are stored in "non-volatile" memory, the settings are
retained even when DPC-2 Control Unit input power is lost or the power switch is turned
off.
c. Modification to CHANNEL parameters may only be undertaken when Programming
Security is in the UNLOCKED position.
d. CHANNEL 1 and CHANNEL 2 parameters are independent of each other, however the
programming procedure for each CHANNEL is exactly the same.

Event

Each CHANNEL of each Program has up to four EVENTs. An EVENT is defined as a
DELAY (skip) length followed by a LINE (glue) length.
1. Depress the desired CHANNEL button until the LED to the left of EVENT is
illuminated.
2. Rotate the VALUE knob until the desired EVENT is selected. The table below
indicates the meaning of each display setting.
DISPLAY
OFF
1 through 4

Delay

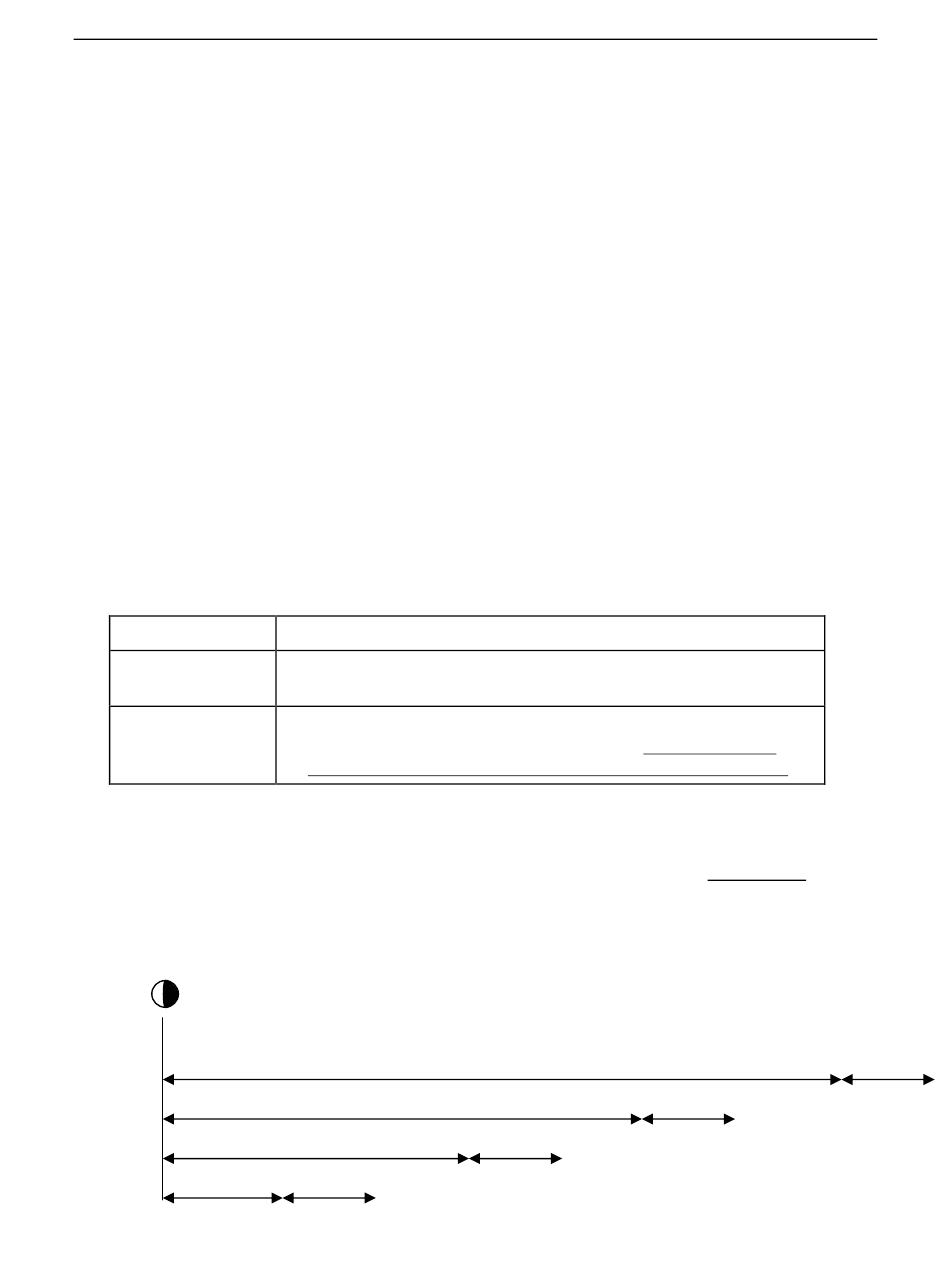

The DPC-2 handles DELAY lengths from one EVENT to the next in a cumulative
fashion as illustrated in the following diagram.
E
TRIGGER
V
E
N
T
4
3
2
DELAY 1
1
EVENT Display Settings
The selected CHANNEL is inactivated, no other parameter
programming will be possible for that CHANNEL
The CHANNEL parameters DELAY, LINE, GAP, and STITCH will
be programmed for the displayed EVENT. SPIKE TIME and
COMPENSATION may only be programmed when in EVENT 1.
DELAY 3
DELAY 2
LINE 1
MEANING
DELAY 4
LINE 3
LINE 2
Page 3 - 11
Revised 7/99
LINE 4
