Start-Up Procedure

1. Open the latch on the right side of the DPC-2 Control Unit and swing open the lid.
2. Two keys for the Programming Security feature should be attached to the inside of the
lid. Remove these keys and unwrap them.
3. Insert one of the keys into the lock on the Display Panel. Assure the key is in the
UNLOCKED (key tab vertical) position.
4. Remove the key and place both keys in a secure location.

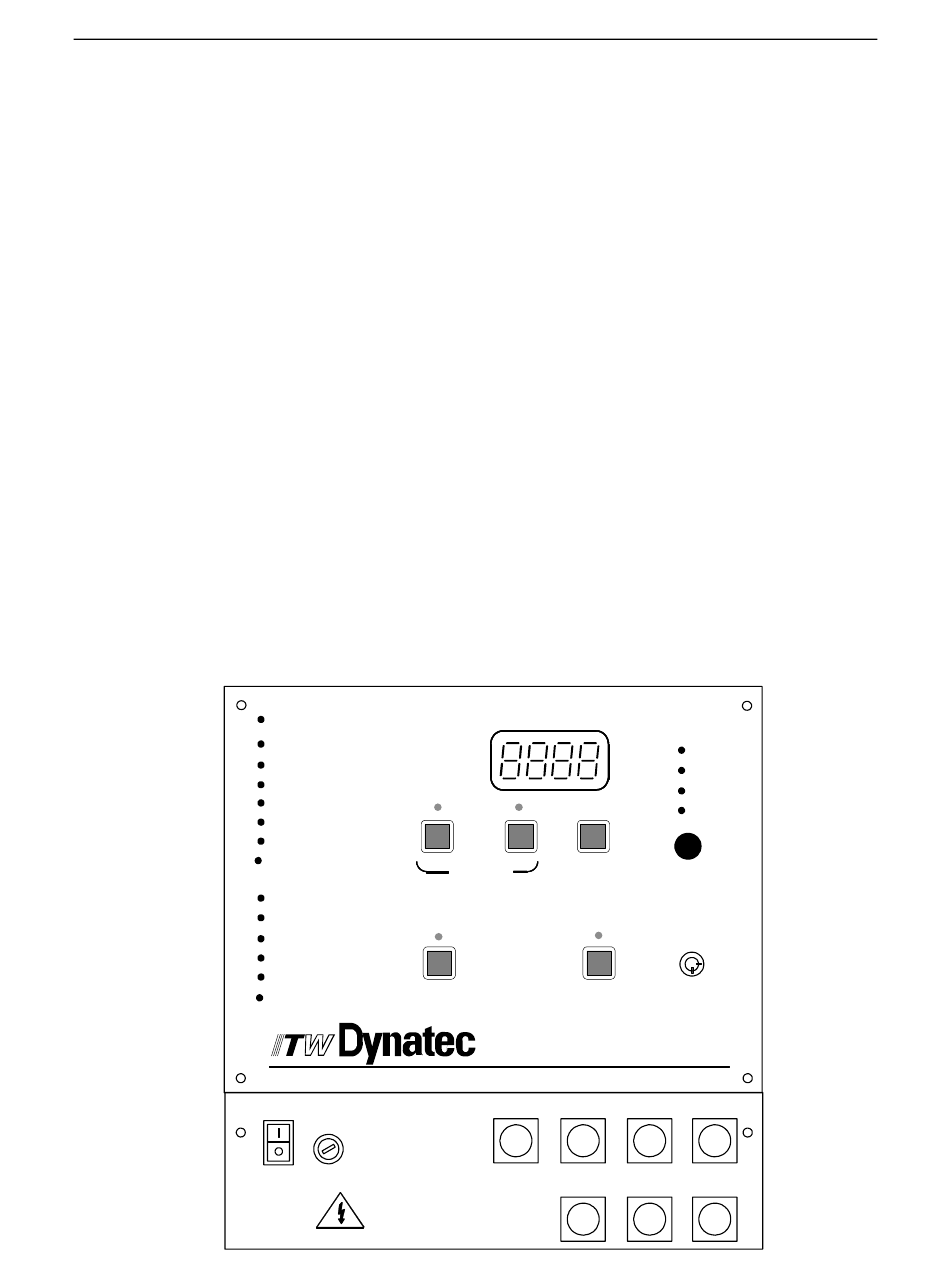

5. Turn ON the Control Unit by depressing the Power Switch in the lower left corner of
the Display Panel. The Power Switch is on a "rocker". The "    " side of the rocker
should be depressed to provide power to the Control Unit.
The LED Display should show 0 0 0 0 and the red LED above the SYSTEM button
should be illuminated.
Chapter 3
OPERATION & PROGRAMMING
Memory
Event
Delay
Line
Gap (Spot / Stitch)
Stitch
Spike Time
1
Compensation
Purge
Trig Mode
Lockout
Pre-Delay
Servo Mode
System
Constants
T630mA
Isolate From Supply Before
Removing Access Cover
2
Digit
Channel
/ Drive
Run / Stop
Drive 1
Drive 2 Trigger
ATS
Purge
Page 3 - 1
Revised 7/99
Drive
Drive
A.T.S.
Trigger
Value
Unlocked
DPC-2
Encoder
Servo
