Page 2 - 6
Revised 8/04

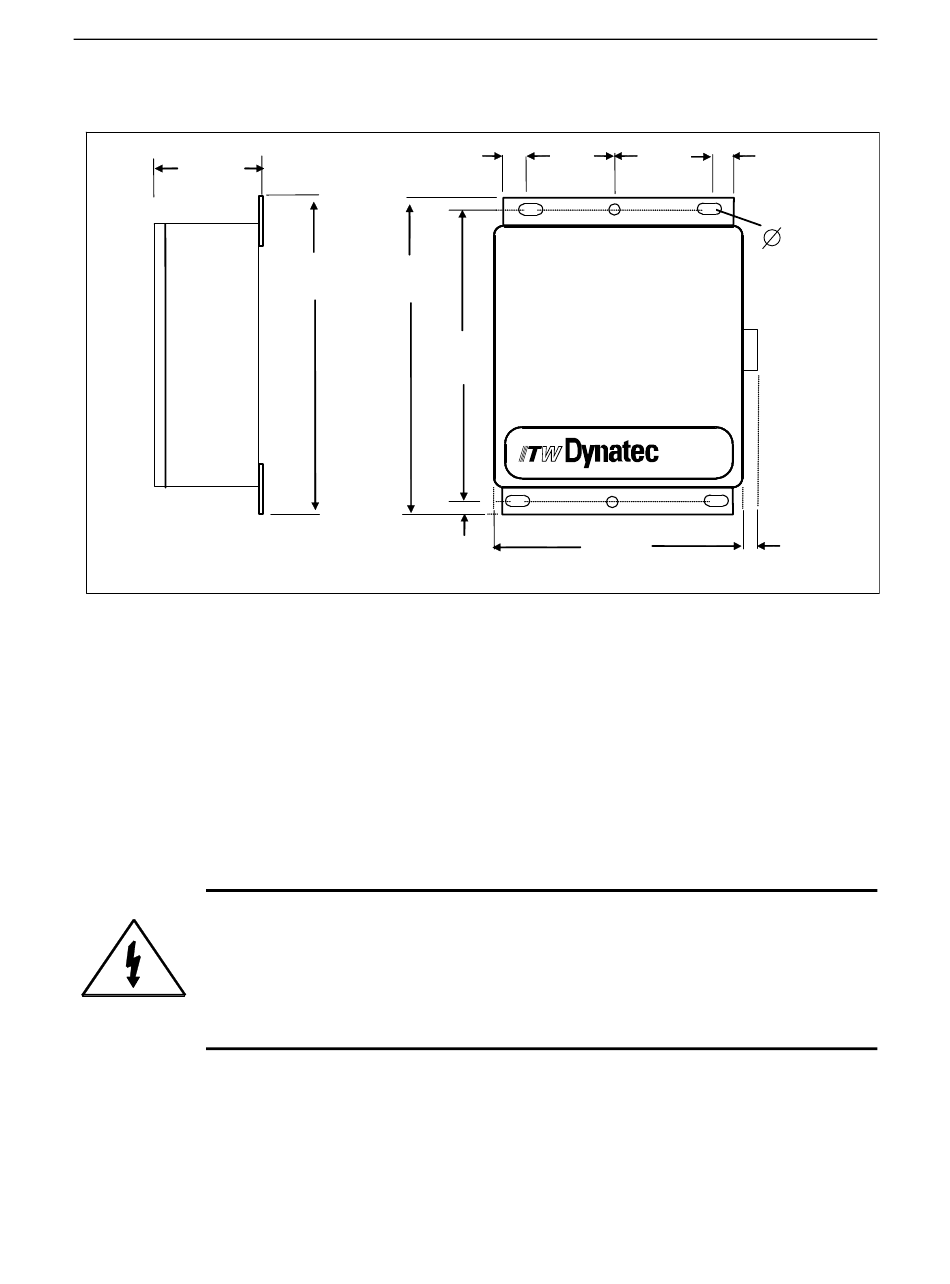

Dimensions

5.25"
133.4mm

Locating the DPC-2 for Installation

Mount the DPC-2 in a cool, dry, clean and well-ventilated area. Allow access space at the
front and sides for operation and maintenance. Do not place the Control Unit where it is
subject to high heat and humidity, in traffic areas or where it could be subject to
mechanical abuse. Do not mount the DPC-2 Control Unit or any of its
components/accessories close to high power wiring or in close proximity to sources of
RF or static energy.
CAUTION: 1. Heat, humidity and mechanical abuse will impair the
performance and shorten the life of Control Unit components.
2. Do not mount the DPC-2 Control Unit or its accessories near high
voltage power lines or in close proximity of radio frequency interference
(such as arc welding or electric motors), as this may cause irregular
operation.
1.19"
30mm
11.56"
11.56"
294mm
294mm
10.81"
275mm
.375"
10mm
ITW Dynatec c. 1999
DPC-2 CONTROL KIT Manual #50-06
3.5" 3.5"
89mm 89mm
9.75"
248mm
1.19"
30mm
0.27"
7mm
.5"
13mm
