DoubleButton User Manual
Updated October 20, 2020

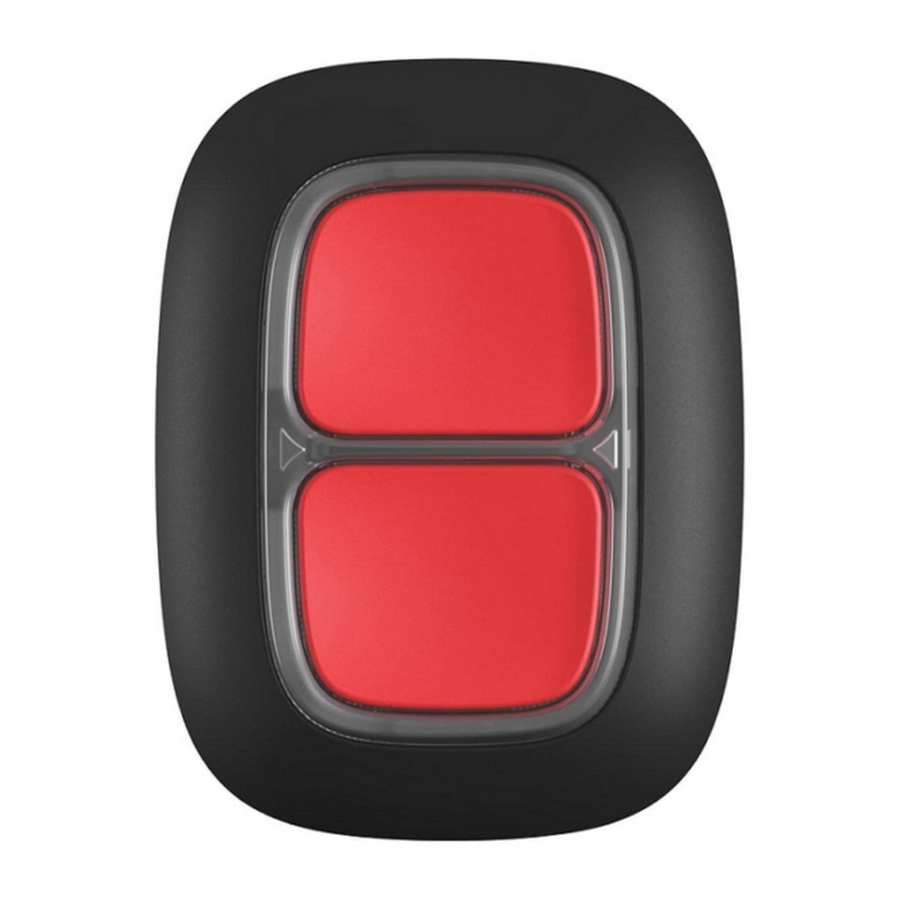

DoubleButton is a wireless hold-up device with advanced protection against
accidental presses. The device communicates with a hub via the encrypted
Jeweller
radio protocol and compatible only with Ajax security systems. The
line-of-sight communication range is up to 1300 meters. DoubleButton operates
from the pre-installed battery up to 5 years.
DoubleButton is connected and configured via
Ajax apps
on iOS, Android,
macOS, and Windows. Push notifications, SMS, and calls can notify about
alarms and events.
Buy the DoubleButton hold-up device
Functional elements

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoubleButton and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX DoubleButton

Summary of Contents for AJAX DoubleButton

  • Page 1 DoubleButton User Manual Updated October 20, 2020 DoubleButton is a wireless hold-up device with advanced protection against accidental presses. The device communicates with a hub via the encrypted Jeweller radio protocol and compatible only with Ajax security systems. The line-of-sight communication range is up to 1300 meters. DoubleButton operates from the pre-installed battery up to 5 years.

  • Page 2: Operating Principle

    SMS, and push notifications do not depend on the pressing manner. DoubleButton can only operate as a hold-up device. Setting the type of alarm is not supported. Keep in mind that the device is active 24/7, so pressing the DoubleButton will raise an alarm regardless of the security mode.
  • Page 3 2. Check if your hub is on and connected to the Internet (via Ethernet cable, Wi- Fi, and/or mobile network). You can do this in the Ajax app or by looking at the Ajax logo on the front panel of the hub. The logo should light with white or green if the hub is connected to the network.
  • Page 4 DoubleButton will appear in the list of hub devices in the app. To connect DoubleButton to a hub, it should be located on the same protected object as the system (within the hub’s radio network range). If the connection fails, try again in 5 seconds.
  • Page 5 Learn more Firmware DoubleButton firmware version Device ID Setting up DoubleButton is set up in the Ajax app: 1. Go to the Devices tab 2. Select DoubleButton from the list. 3. Go to Settings by clicking on the icon. Please note that after changing the settings, you need to press Back to apply them.
  • Page 6 Alarms A DoubleButton alarm generates an event notification sent to the security company’s monitoring station and system users. The pressing maner is indicated in the event feed of the app: for a short press, a single-arrow icon...
  • Page 7 Note that the alarm confirmation is a separate event that does not cancel the alarm transmission. Whether or not the feature is enabled, DoubleButton alarms are sent to a CMS and to security system users. Indication DoubleButton blinks red and green to indicate command execution and battery charge status.
  • Page 8 Battery status indication The battery replacement is After the main indication, the required. DoubleButton entire frame lights up red and (follows Feedback Indication) commands are delivered to a gradually goes out Application DoubleButton can be fixed on a surface or carried around.
  • Page 9 ReX radio signal range extender When routing DoubleButton through ReX, keep in mind that it does not automatically switch between a range extender and a hub. You can assign DoubleButton to a hub or another ReX in the Ajax app.
  • Page 10 The button is easy to carry around thanks to a special hole on its body. It can be worn on the wrist or neck, or be hanged on a keyring. DoubleButton has an IP55 protection index. Which means that the device body is protected from dust and splashes. And a special protective divider, tight buttons, and the need to press two buttons at once eliminate false alarms.
  • Page 11 Note that the alarm confirmation feature does not disable the alarm transmission. Whether or not the feature is enabled, DoubleButton alarms are sent to a CMS and to security system users. How to configure confirmation of a hold-up device...

  • Page 12: Maintenance

    Ajax app. How long Ajax devices operate on batteries, and what affects this If DoubleButton cools down up to -10°C and below, the battery charge indicator in the app can show low battery status until the button heats up to above-zero temperatures.

  • Page 13: Complete Set

    Battery life use) Protection class IP55 Operating temperature range From −10°С to +40°С Operating humidity Up to 75% Dimensions 47 × 35 × 16 mm Weight 17 g Complete set 1. DoubleButton 2. CR2032 battery (pre-installed) 3. Quick Start Guide...

  • Page 14: Warranty

    Warranty The warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after purchase and does not extend to the bundled battery. If the device does not function properly, we recommend that you first contact...
