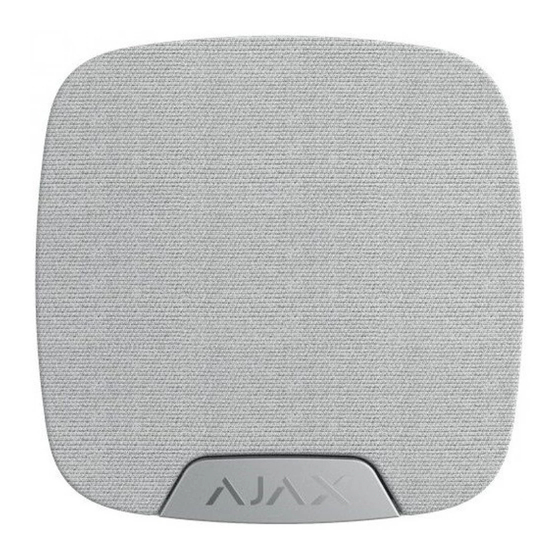

HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only
for indoor use. It can be quickly installed and set up, is furnished with a LED (plus
allows connecting an external LED), and can operate up to 5 years from a battery.
HomeSiren operates within the Ajax security system, by connecting via the
protected
Jeweller
meters if there are no obstacles.
The siren is set up via a
smartphones. The user is notified of all events through push notifications, SMS
messages and calls (if activated).
Operates only with
modules is not provided.
HomeSiren User Manual
Updated February 16, 2022
protocol to the
hub
mobile application
Ajax hubs
. Connection to
. The communication range is up to 2,000
for iOS and Android-based
ocBridge Plus
and
uartBridge
integration
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AJAX HomeSiren
Summary of Contents for AJAX HomeSiren
- Page 1 HomeSiren User Manual Updated February 16, 2022 HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only for indoor use. It can be quickly installed and set up, is furnished with a LED (plus allows connecting an external LED), and can operate up to 5 years from a battery.
-
Page 2: Functional Elements
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company. Buy home siren HomeSiren Functional elements 1. Light indicator 2. Siren buzzer covered with a fabric 3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to tear off the siren from the surface) 4. - Page 3 Connecting the Siren to the hub The HomeSiren siren operates only with the Ajax security system. Up to 10 sirens may be connected to the Ajax hub Before starting connection: 1.
- Page 4 Request for connection to the hub is transmitted for a short time at the time of switching on the device. If the connection to the Ajax hub failed, the siren will switch off after 6 seconds. You may repeat the connection attempt then. To retry the connection, you do not...
- Page 5 Update of the siren statuses in the list depends on the device inquiry time set in the hub settings, with the default value — 36 seconds. States Siren states can be found in the Ajax app: 1. Go to the Devices tab.
- Page 6 ОК Battery discharged Battery Charge How battery charge is displayed in Ajax apps The tamper mode of the device, which reacts to the detachment of or damage to the body Volume level in case of alarm Muted — the siren does not sound when the alarm is raised Quiet —...
-
Page 7: Setting Up The Detector
Number of the device loop (zone) Setting Up the Detector To change the HomeSiren settings in the Ajax app: 1. Select the hub if you have several of them or if you are using the PRO app. 2. Go to the Devices tab. - Page 8 Selecting the virtual room to which StreetSiren Room DoubleDeck is assigned. The room name you can see at notifications in the event feed Selecting the group to which the siren is assigned. You can select one or all groups: When assigned to a group, the siren and its indication are related to alarms and events of this group When attached to all groups, the siren and its...
- Page 9 What is Volume Level Test Switching the siren to the Jeweller signal strength test mode. The test allows you to check the signal level between the hub and HomeSiren and determine the optimal installation location Jeweller Signal Strength Test What is Jeweller Signal Strength Test Switches the siren to the signal fade test mode (available in devices with firmware version 3.50...
- Page 10 Disconnects the siren from the hub and deletes Unpair Device its settings Siren beep settings When this option is enabled, the siren warns of Arming/Disarming arming and disarming by lighting of the LED frame and by a short beep If enabled, the siren alerts you by backlighting the LED frame and a short beep when arming and disarming the system from the Night mode Night mode Activation/Deactivation...
- Page 11 Setting up the processing of detector alarms Through the Ajax app, you can configure which detector alarms can activate the siren. This can help to avoid situations when the security system notifies of LeaksProtect detector alarm or any other device alarm. The parameter is adjusted in the detector or device settings: 1.
- Page 12 5. Enable the Alert with a siren if the hub or detector lid is open option. Setting the response to pressing the panic button in the Ajax The siren can respond to pressing the panic button in Ajax apps. Note that the panic button can be pressed even if the system is disarmed! For the siren to respond to pressing the panic button: 1.
- Page 13 The siren after-alarm indication does not work for always active detectors, if the detector was triggered when the system was disarmed. To enable the siren after-alarm indication, in Ajax PRO app 1. Go to siren settings: Hub → Settings → Service → Siren Settings 2.
- Page 14 3. Select the sirens needed. Go back to Siren Settings. The set parameters will be saved. 4. Click Back. All values will be applied. HomeSiren with firmware 5.55.2 and later supports this function. How to set Chime Chime is a sound signal that indicates the triggering of the opening detectors when the system is disarmed.
- Page 15 If an external contact is open (available if the External Contact option is enabled). . Select the chime sound (siren tone): 1 to 4 short beeps. Once selected, the Ajax app will play the sound. 7. Click Back to save the settings.
-
Page 16: Performance Testing
LED smoothly lights up and goes out when the system is armed or disarmed (if the indication is Battery low activated), the tamper is actuated or alarm is given Performance testing The Ajax security system allows conducting tests for checking the functionality of... -
Page 17: Installing The Siren
Jeweller Signal Strength Test Attenuation Test Installing the Siren Location of the HomeSiren determines its remoteness from the hub and presence of any obstacles between the devices, hindering the radio signal and sound transmission: walls, inserted floors, large-size objects located within the room. -
Page 18: Installation Process
LED. If the light indicator of the siren is not actuated after installation in SmartBracket, check the tamper mode in the Ajax Security System application and then the fixing tightness of the device on the panel. In case of any attempt to dismount the siren, you will receive the notification. -
Page 19: External Led Connection
5. closer than 1 m from the hub. External LED connection The outside-mounted LED connected to the HomeSiren is paralleled with the built- in LED of the device and completely repeats its indication. For connection, use the contact on the rear side of the siren body and observe the polarity during the connection. -
Page 20: Tech Specs
LED will smoothly light up and goes out when the armed mode is activated. How long Ajax devices operate on batteries, and what affects this Battery Replacement Tech specs Type of notification Acoustic and LED Sound notification volume 81 –... -
Page 21: Complete Set
EN 50131-1, Certification EN 50131-4, EN 50131-5-3 Compliance with standards Complete Set 1. HomeSiren 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) — 2 pcs 4. LED connection clamp 5. Installation Kit . Quick Start Guide... -
Page 22: Warranty
Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support service —...
