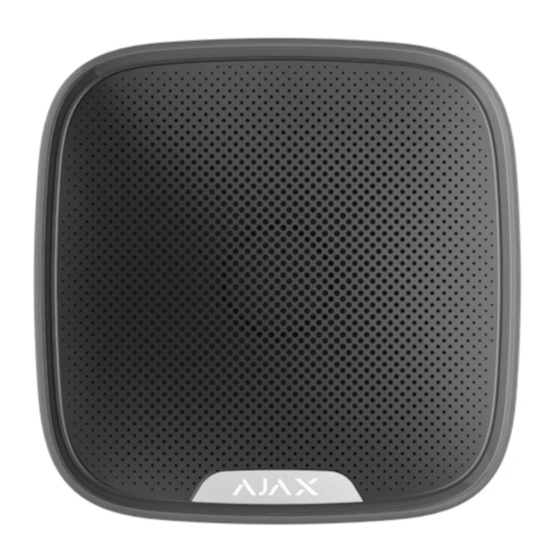

Wireless street siren with the capacity up to 113 db
Hide thumbs Also See for StreetSiren:
Table of Contents

Advertisement

Quick Links

Download this manual

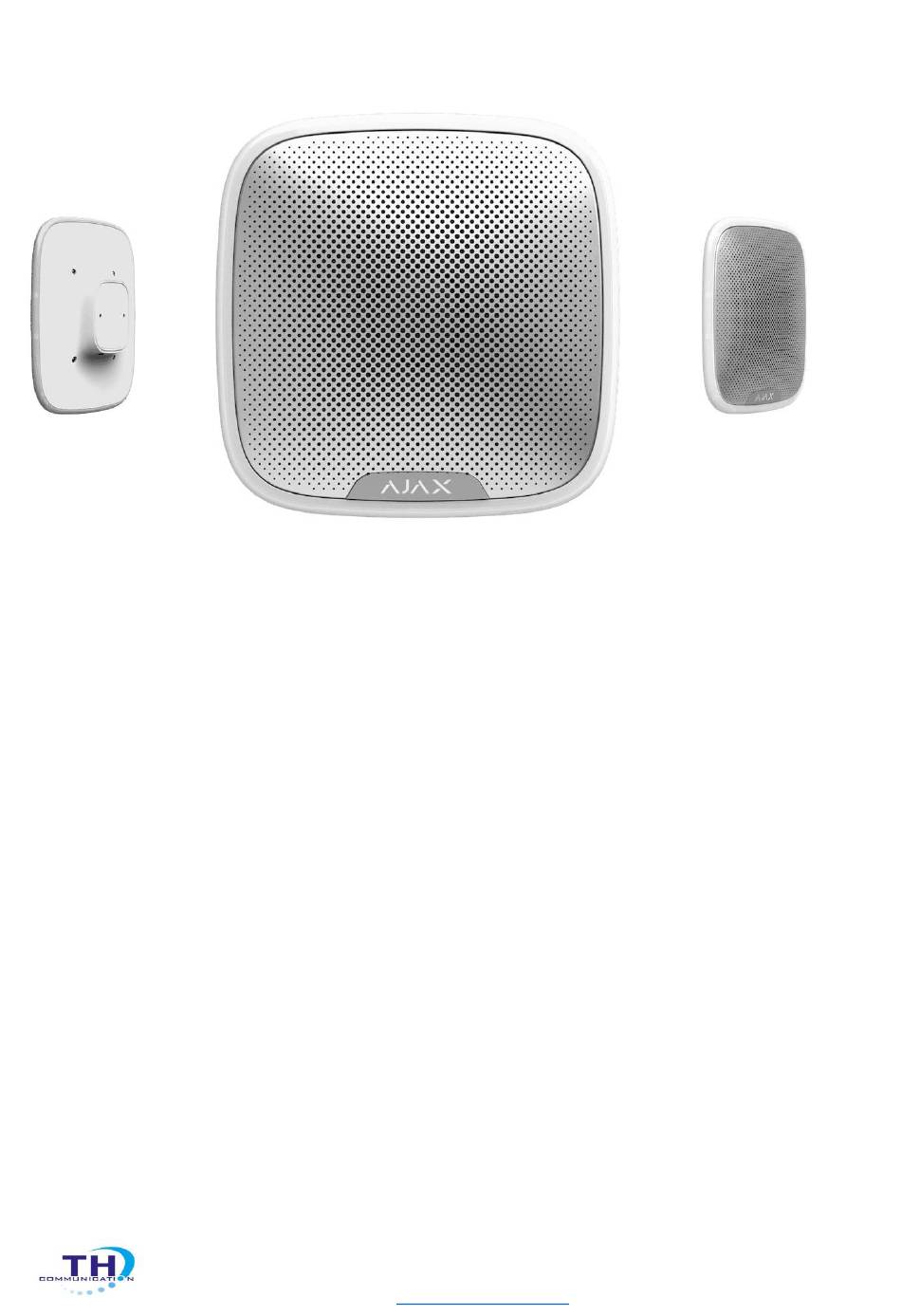

StreetSiren User Manual
StreetSiren is a wireless street siren with the capacity up to 113 dB. It can be quickly installed
and set up, is furnished with bright LEDs, and can operate from a power unit or up to 5 years
from batteries.
StreetSiren operates within the Ajax security system, by connecting via the protected Jeweller
protocol to the Hub. The communication range is up to 1,500 meters if there are no obstacles.
The siren is set up via a mobile application for iOS and Android-based smartphones or a web
application. The user is notified of all events through push notifications, SMS messages and
calls (if activated).
Not compatible with the Ajax uartBridge or Ajax ocBridge Plus
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring
station of a private security company.
��
Buy street siren StreetSiren
Functional elements
TH COMMUNICATION SDN BHD
www.thcomm.com.my
info@thcomm.com.my

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StreetSiren and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX StreetSiren

Summary of Contents for AJAX StreetSiren

  • Page 1 StreetSiren User Manual StreetSiren is a wireless street siren with the capacity up to 113 dB. It can be quickly installed and set up, is furnished with bright LEDs, and can operate from a power unit or up to 5 years from batteries.
  • Page 2 The device is furnished with a powerful buzzer and bright LEDs - StreetSiren can be seen and heard from far. Subject to correct installation, it would be hard to dismount and deactivate the actuated siren: the body is firm, the buzzer is protected by a metal net, there is an autonomous power supply and even the on/off button is locked in case of alarm.
  • Page 3 Request for connection to the Hub is transmitted for a short time at the time of switching on the device. If the connection to the Ajax hub failed, the siren will switch off after 6 seconds. To retry the connection, you do not need to turn off the device.
  • Page 4 Parameter Value Temperature of the device. Measured on the processor and Temperature changes gradually Signal Strength Signal strength between the Hub and the siren Connection Connection status between the Hub and the siren Battery Charge Battery level of the device The tamper mode of the device, which reacts to the detachment of or damage to the body External Power...
  • Page 5 LED frame and a short sound signal If active, siren will beep delays (available from 3.50 FW Beep on delay version) Firmware Siren firmware version Device ID Device identifier Settings Devices →StreetSiren → ⚙ Setting Value TH COMMUNICATION SDN BHD www.thcomm.com.my info@thcomm.com.my...
  • Page 6 First field Device name, can be edited Room Selecting the virtual room to which the device is assigned One of the three volume levels of the siren is set up (85 dB to Alarm Volume 113 dB at a distance of 1 m) The setting determines how long the siren sounds, if the alarm Alarm Duration is activated (from 3 to 180 seconds per each actuation)

  • Page 7: Performance Testing

     Attenuation Test Installing the Siren Location of the StreetSiren determines its remoteness from the hub and presence of any obstacles between the devices, hindering the radio signal and sound transmission: walls, inserted floors, large-size objects located within the room.
  • Page 8 It is strictly prohibited to disassemble the device under voltage! Do not use the device with a damaged power cord. 1. The StreetSiren siren can operate up to 5 years from pre-installed batteries (subject to the inquiry frequency by the hub of 1 minute) or approximately 5 hours of the buzzer sound. If you want to use the external power supply (12 V), then drill a hole for wires in the SmartBracket attachment.

  • Page 9: Tech Specs

    Siren Maintenance and Battery Replacement Check the operational capability of the StreetSiren on a regular basis. Clean the siren body from dust, spider web and other contaminationsas as they appear. Do not use for cleaning the siren any substances containing alcohol, acetone, gasoline and other active solvents.

  • Page 10: Complete Set

    4. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support service — in half of...
