DoubleButton User Manual | Ajax Systems Support

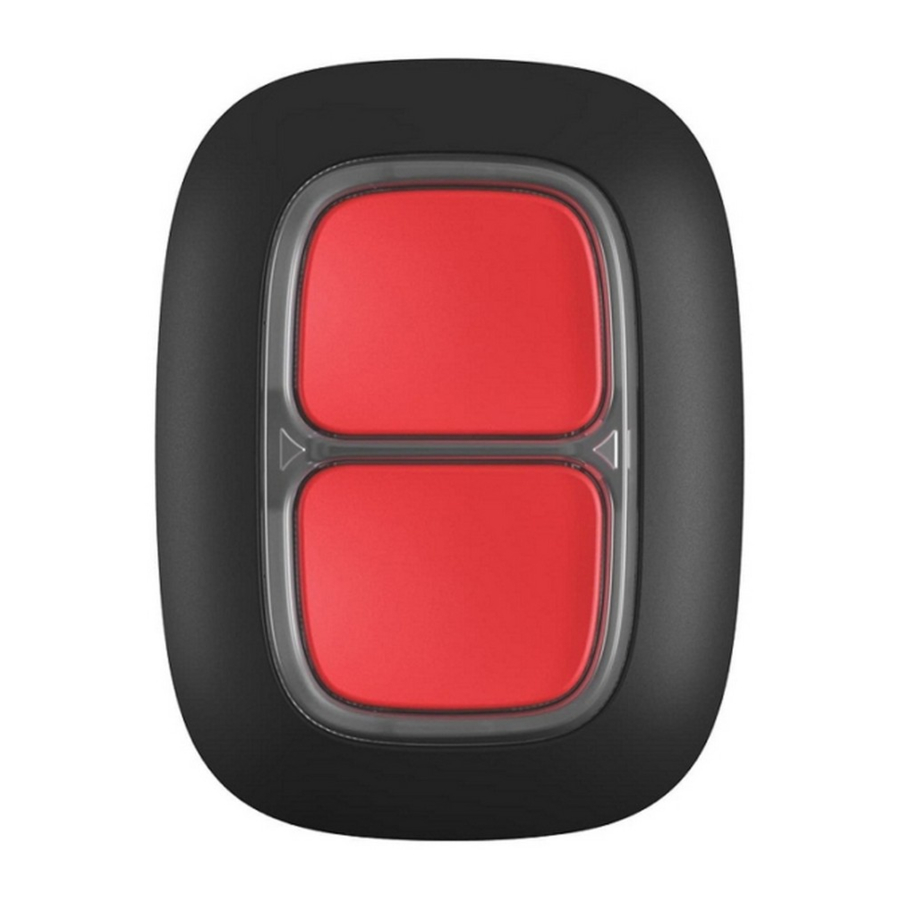

DoubleButton is a wireless hold-up device with advanced protection
against accidental presses. The device communicates with a hub
via the encrypted
Ajax security systems. The line-of-sight communication range is up
to 1300 meters. DoubleButton operates from the pre-installed
battery up to 5 years.
DoubleButton is connected and conFgured via
Android, macOS, and Windows. Push notiFcations, SMS, and calls
can notify about alarms and events.
https://support.ajax.systems/en/manuals/doublebutton/
DoubleButton User Manual
Updated April 23, 2021
Jeweller
radio protocol and compatible only with
Ajax apps
on iOS,
08/07/21, 20:24
Página 1 de 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoubleButton and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX DoubleButton

Summary of Contents for AJAX DoubleButton

  • Page 1 DoubleButton User Manual | Ajax Systems Support 08/07/21, 20:24 DoubleButton User Manual Updated April 23, 2021 DoubleButton is a wireless hold-up device with advanced protection against accidental presses. The device communicates with a hub via the encrypted Jeweller radio protocol and compatible only with Ajax security systems.

  • Page 2: Functional Elements

    2. LED indicators / plastic protective divider 3. Mounting hole Operating principle DoubleButton is a wireless hold-up device, featuring two tight buttons and a plastic divider to protect against accidental presses. When pressed, it raises an alarm (hold-up event), transmitted to users and to the security company’s monitoring station.
  • Page 3 SMS, and push notiFcations do not depend on the pressing manner. DoubleButton can only operate as a hold-up device. Setting the type of alarm is not supported. Keep in mind that the device is active 24/7, so pressing the DoubleButton will raise an alarm regardless of the security mode.
  • Page 4 Ethernet cable, Wi-Fi, and/or mobile network). You can do this in the Ajax app or by looking at the Ajax logo on the front panel of the hub. The logo should light with white or green if the hub is connected to the network.
  • Page 5 DoubleButton, its LED will `ash green once. DoubleButton will appear in the list of hub devices in the app. To connect DoubleButton to a hub, it should be located on the same protected object as the system (within the hub’s radio network range). If the connection fails, try again in 5 seconds.
  • Page 6 DoubleButton User Manual | Ajax Systems Support 08/07/21, 20:24 The states screen contains information about the device and its current parameters. Find the DoubleButton states in the Ajax app: 1. Go to the Devices tab 2. Select DoubleButton from the list.
  • Page 7 Learn more Firmware DoubleButton Frmware version Device ID Setting up DoubleButton is set up in the Ajax app: 1. Go to the Devices tab 2. Select DoubleButton from the list. 3. Go to Settings by clicking on the icon. Please note that after changing the settings, you need to press Back to apply them.
  • Page 8 Unpair Device and removes its settings Alarms A DoubleButton alarm generates an event notiFcation sent to the security company’s monitoring station and system users. The pressing maner is indicated in the event feed of the app: for a short press, a single-arrow icon appears, and for a long press, the icon has two arrows.
  • Page 9 Note that the alarm conFrmation is a separate event that does not cancel the alarm transmission. Whether or not the feature is enabled, DoubleButton alarms are sent to a CMS and to security system users. Indication https://support.ajax.systems/en/manuals/doublebutton/...
  • Page 10 DoubleButton User Manual | Ajax Systems Support 08/07/21, 20:24 DoubleButton blinks red and green to indicate command execution and battery charge status. Category Indication Event The button is not The whole frame blinks connected to a security green 6 times...
  • Page 11 The battery replacement the entire frame lights up is required. DoubleButton (follows Feedback red and gradually goes commands are delivered Indication) to a hub Application DoubleButton can be Fxed on a surface or carried around. https://support.ajax.systems/en/manuals/doublebutton/ Página 11 de 19...
  • Page 12 When routing DoubleButton through ReX, keep in mind that it does not automatically switch between a range extender and a hub. You can assign DoubleButton to a hub or another ReX in the Ajax app. 3. Fix Holder on the surface using the bundled screws or double- sided adhesive tape.
  • Page 13 DoubleButton User Manual | Ajax Systems Support 08/07/21, 20:24 4. Put DoubleButton into the holder. Please note that Holder is sold separately. Buy Holder https://support.ajax.systems/en/manuals/doublebutton/ Página 13 de 19...
  • Page 14 The button is easy to carry around thanks to a special hole on its body. It can be worn on the wrist or neck, or be hanged on a keyring. DoubleButton has an IP55 protection index. Which means that the device body is protected from dust and splashes. And a special protective divider, tight buttons, and the need to press two buttons at once eliminate false alarms.
  • Page 15 08/07/21, 20:24 Note that the alarm conFrmation feature does not disable the alarm transmission. Whether or not the feature is enabled, DoubleButton alarms are sent to a CMS and to security system users. How to conCgure conCrmation of a hold-up device...

  • Page 16: Maintenance

    DoubleButton. The pre-installed battery provides up to 5 years of operation, considering one pressing per day. More frequent use may decrease battery life. You can check the battery status at any time in the Ajax app. https://support.ajax.systems/en/manuals/doublebutton/...
  • Page 17 How long Ajax devices operate on batteries, and what affects this If DoubleButton cools down up to -10°C and below, the battery charge indicator in the app can show low battery status until the button heats up to above-zero temperatures. Note that the battery charge level is not updated in the background, but only by pressing DoubleButton.

  • Page 18: Complete Set

    DoubleButton User Manual | Ajax Systems Support 08/07/21, 20:24 868.0 – 868.6 MHz or 868.7 – 869.2 Frequency band MHz, depending on the sales region Ajax hubs Operates only with Compatibility range extenders on OS Malevich 2.10 and higher Maximum radio signal power...

  • Page 19: Warranty

    DoubleButton User Manual | Ajax Systems Support 08/07/21, 20:24 3. Quick Start Guide Warranty The warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after purchase and does not extend to the bundled battery.
