Click on new module and select the desired Ethernet module, in this case the Ethernet Bridge. This module is
the scanner module in the PLC.

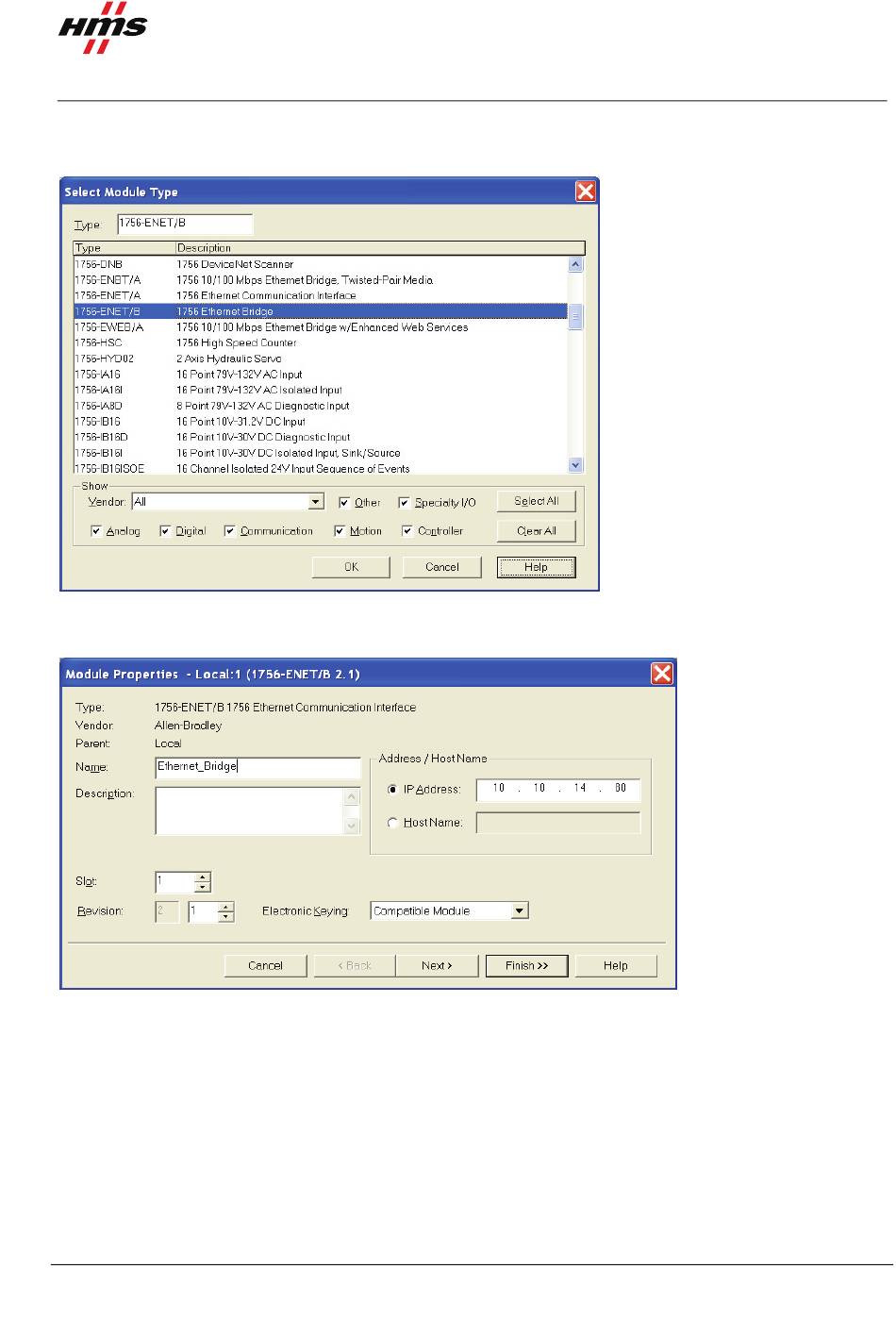

Figure 4 Selecting the type of module.
Then enter the desired settings and press finish.
Figure 5 Configuring the settings for the Ethernet module.
