5.

Anybus configuration

The Anybus module has to be configured for the same I/O size and IP-settings as in the PLC configuration.
The configuration of the IP-settings and the I/O sizes is described in the two following chapters. In the
subsequent two chapters the configuration of the Anybus Communicator and Anybus X-gateway is explained
in detail.
5.1.

IP settings

Make sure each node on the network has a unique IP address. The IP settings of the Anybus EtherNet/IP
modules can be configured in various ways. It is recommended to use the Anybus IPconfig tool for
configuring the IP-settings. The Anybus IPconfig tool can be used to configure the IP settings of all Anybus
1
EtherNet/IP modules. The program can be downloaded at HMS website . Start the program and the main
window will be opened.

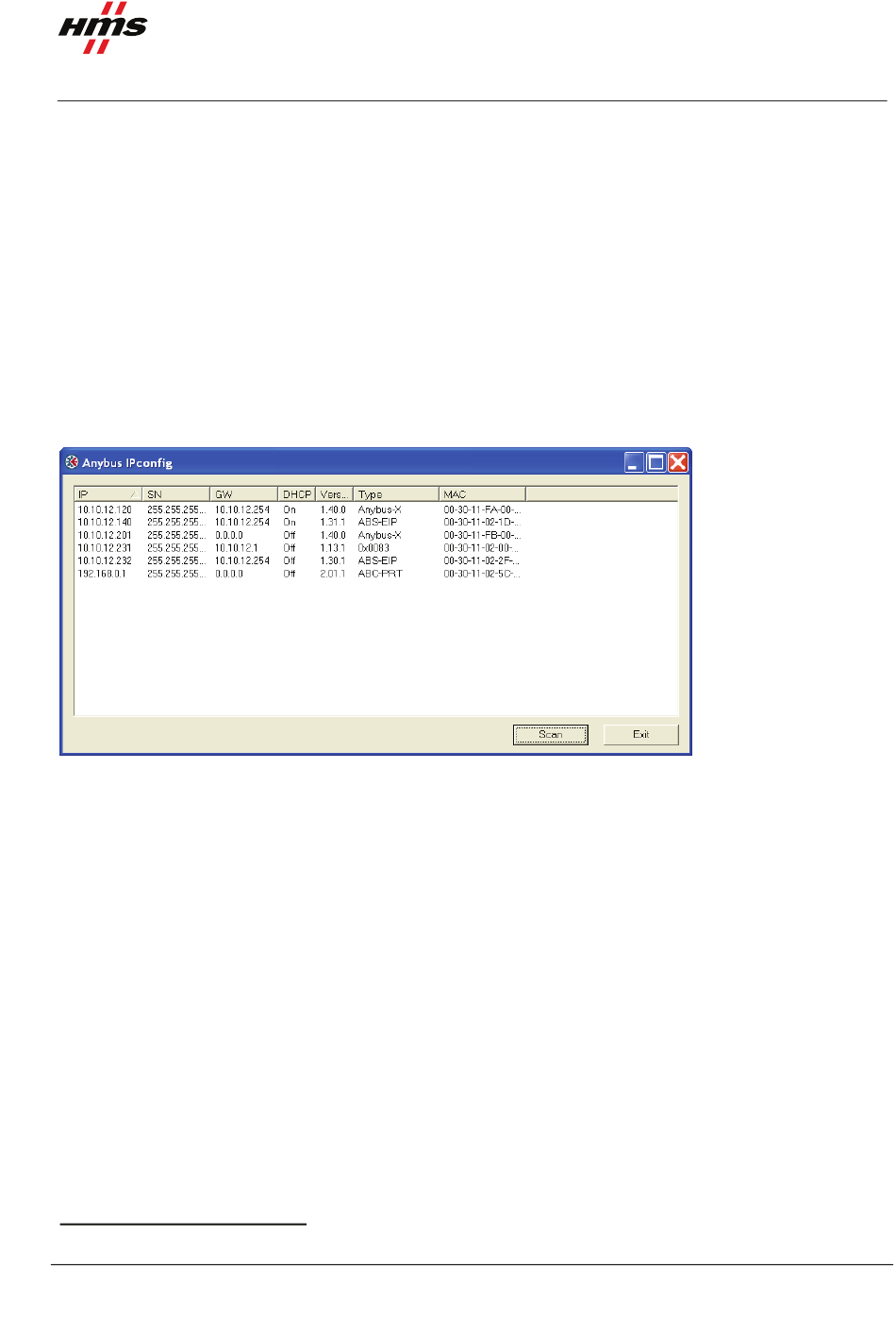

Figure 15 The Anybus IPconfig tool.
The program scans the network for Anybus Ethernet modules.
1
www.anybus.com
