4.2.
EtherNet/IP network configuration

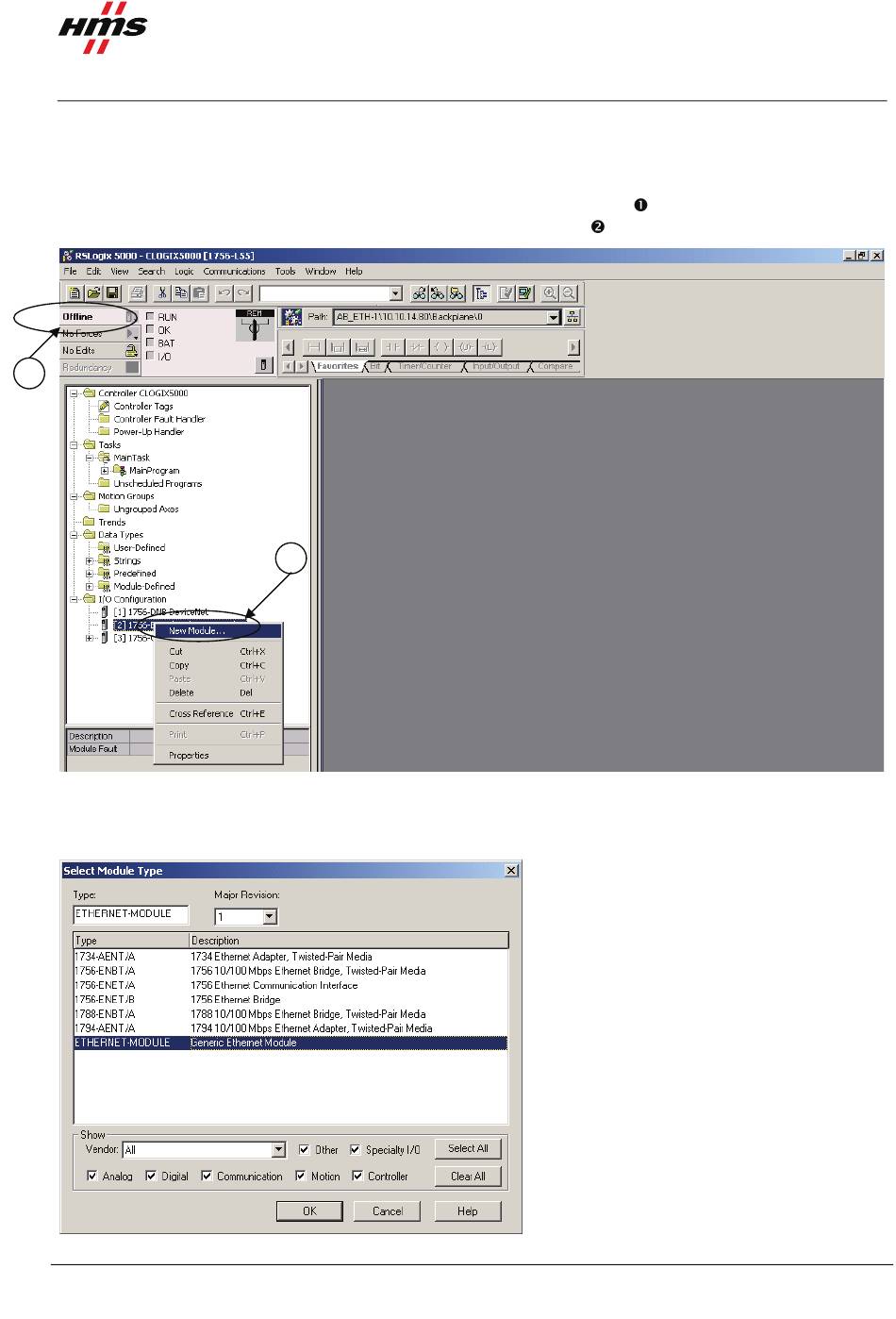

The second step is to configure the EtherNet/IP network and adding the Anybus-S Slave module to the
configuration in the PLC. Begin with setting the program in "Offline" mode . Then right click on the
EtherNet/IP bridge in the I/O configuration, and select "New Module" .
1
Now a dialogue window will appear. In this dialogue window, select "Generic Ethernet module" and press
OK.
Saved: 2008-03-05
Filename: How to configure an EtherNetIP adapter with RSLogix 5000.doc
2
Figure 6 Adding the Anybus module.
Figure 7 Selecting the Generic Ethernet Module.
HMS Industrial Networks AB
How to configure an EtherNetIP adapter with RSLogix 5000.doc
SCM-7032-029
Rev 2.03
Page 8 (20)
