The settings can be configured manually or the DHCP function can be used. For the Anybus Ethernet
modules DHCP is activated by default. To change the settings manually, double click on the desired module
and enter the desired IP-settings as seen below.

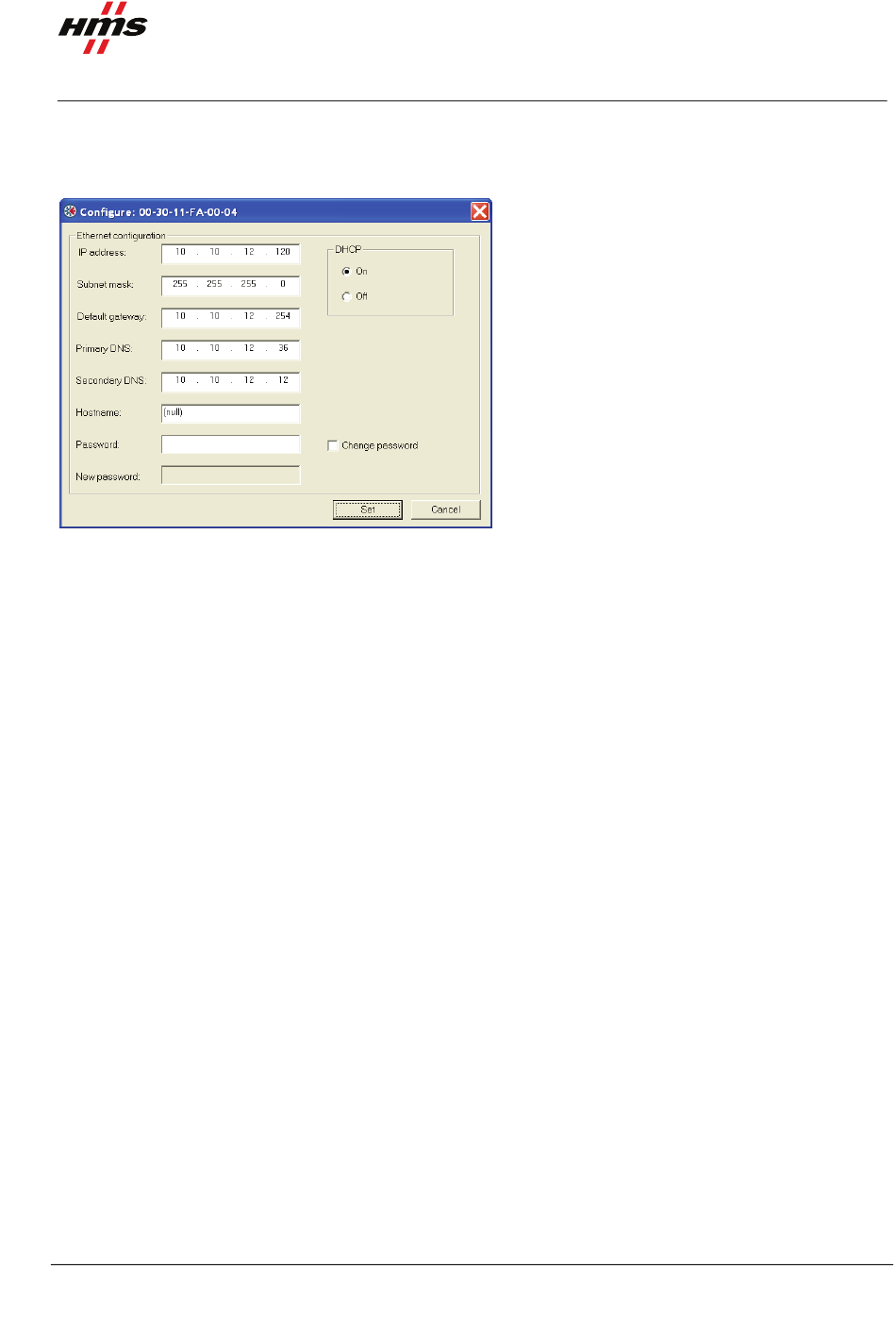

Figure 16 Configuring the IP settings.
As mentioned before there are other ways to configure the IP settings. The IP settings can also be configured
by sending ARP commands or using the web interface in the module, see the Anybus-S Ethernet/IP Fieldbus
Appendix for details. See the notes below for more product specific information.
Note for the Anybus-S Slave, and Communicator:
DIP switches 1-8 set the last part of the IP address, 192.168.0.xxx. The switches will be found next to the
indication LEDs on the Communicator and the Slave Interface. The modules can also be configured by
mailbox commands or by the ethcfg.cfg configuration file.
Note for the X-gateway:
The X-gateway can be configured by the DIP switches as described above or by the ethcfg.cfg configuration
file.
Note for the Anybus PCI card:
The module can be configured by mailbox commands or by the ethcfg.cfg configuration file.
Note for the Anybus-IC:
For the Anybus–IC for EtherNet/IP the configuration is depending on the application. The IP address is set
by the IP configuration parameters or, if mounted, by switches.
Note for the Anybus CompactCom:
The Anybus CompactCom can be configured by the network configuration object.
For further instructions see the respective manual or appendix.
