4.3.
Downloading the configuration to the PLC

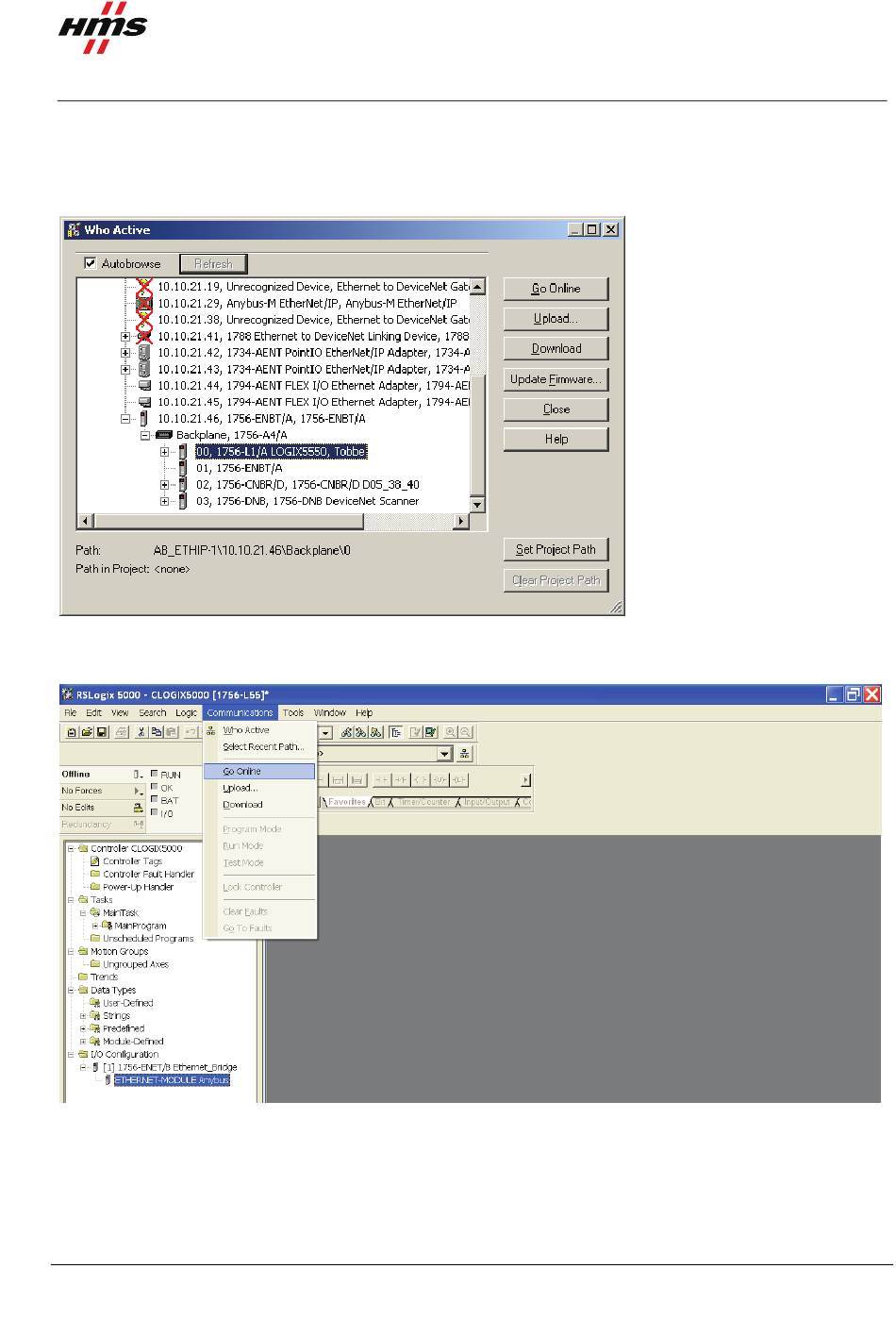

First select the communication path. This can be done by opening the Communications menu and selecting
the Who Active command. Select the desired communication path as seen below.
Figure 11 Configuring the communication path.
Select "Go Online" from the "Communications" menu.
Figure 12 Opening the online window.
Saved: 2008-03-05
Filename: How to configure an EtherNetIP adapter with RSLogix 5000.doc
How to configure an EtherNetIP adapter with RSLogix 5000.doc
HMS Industrial Networks AB
SCM-7032-029
Rev 2.03
Page 11 (20)
