HMS Anybus EtherNet/IP How To Configure page 12

A new window appears, select "Download".

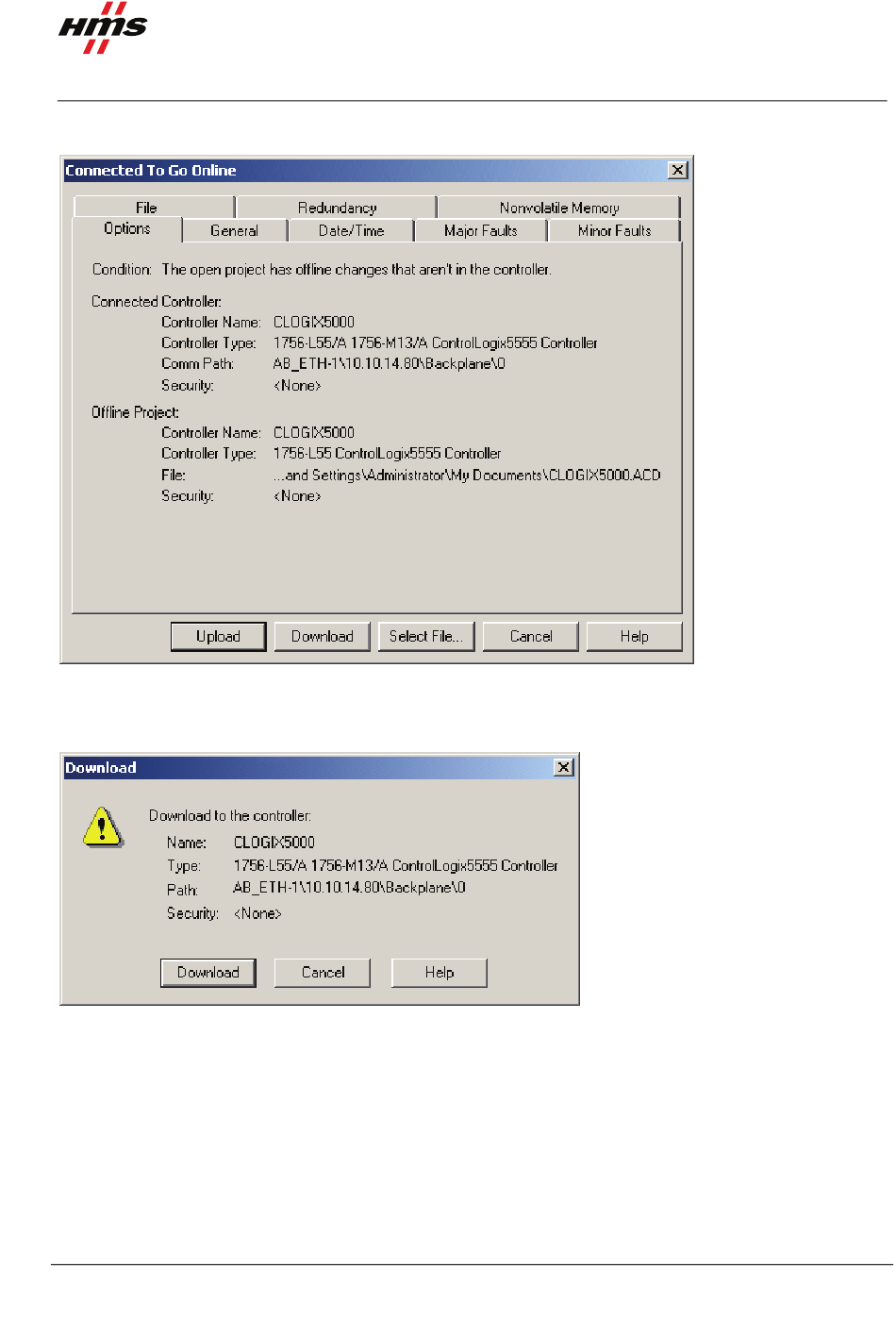

Figure 13 The download window.
A new window will popup with the question if you actually want to download the configuration, select
"Download". The configuration will now be downloaded to the PLC.
Figure 14 Downloading the configuration to the PLC.
If there are any errors, a warning triangle will be present on the Anybus-S Slave in the I/O configuration
listing. Double click the module to view any error that is reported.
