The next step is to configure the sub-network.

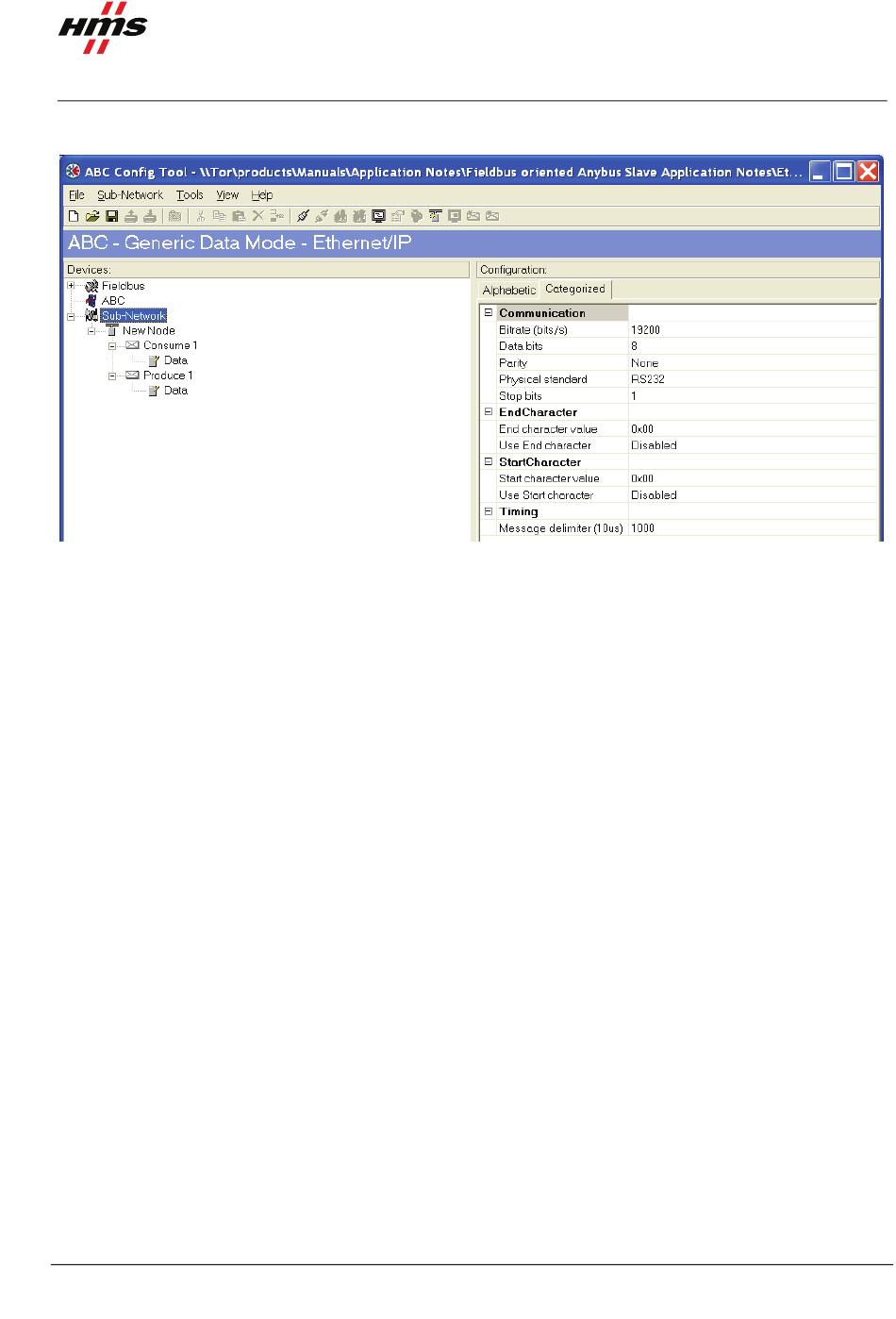

Figure 19 Configuring the sub network.
Right click on new node and add a consume and a produce transaction as shown above. Change the Offline
timeout time for the consume transaction to 2000 ms and the update time for the produce transaction to 1000
ms. Right click on the produce and consume transaction respectively and select add data. In this case 32
bytes of data is used.
Note: The update time for the produce transaction is to be set to less than the offline timeout time for the
consume transaction; in this case the update time is set to 1000 ms and the offline timeout time to 2000 ms.
