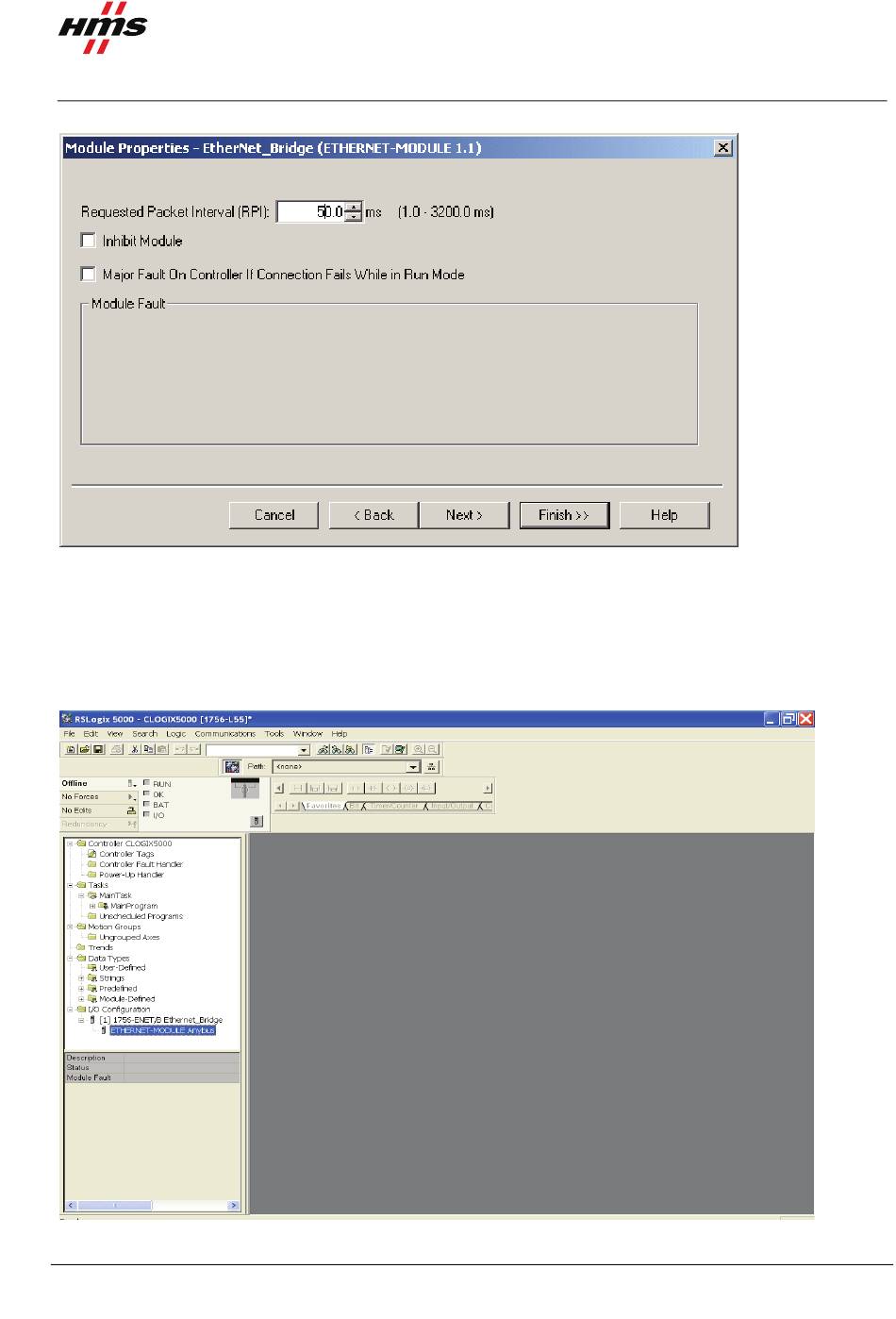

Figure 9 Configuring the scan interval.
In this dialogue we will enter a value for the time between each scan of the module. In this example, we have
set the interval to 50 ms to reduce the network load. Make sure that "Inhibit Module" isn't checked. After
this, press finish.
Now the Anybus-S Slave has been added to the I/O configuration in RSLogix 5000. The main screen will
look as follows.
Figure 10 The main screen when the configuration is completed.
