Center Of Gravity - BVM PNP F-16 Assembly And Operating Manual

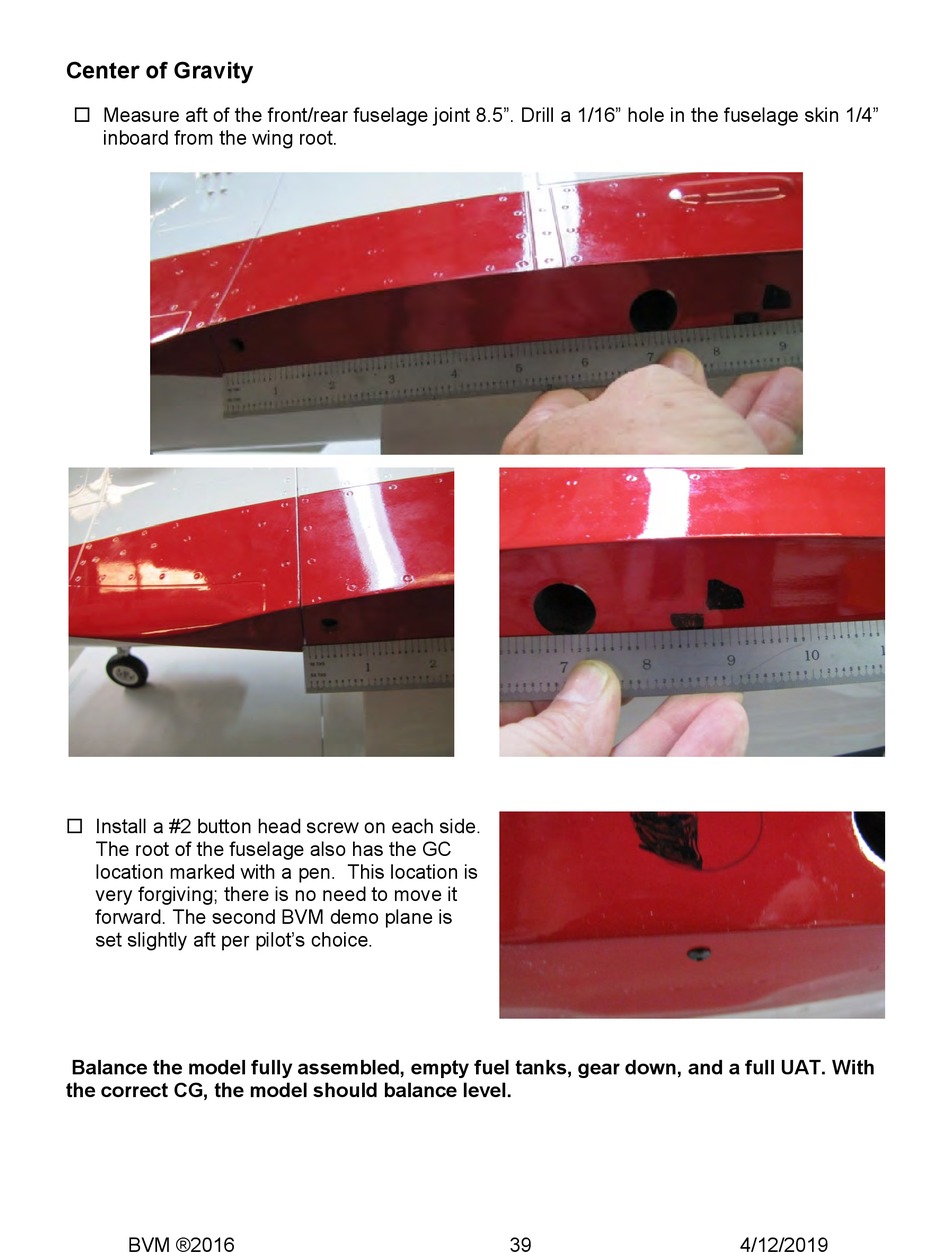

Center of Gravity

 Measure aft of the front/rear fuselage joint 8.5". Drill a 1/16" hole in the fuselage skin 1/4"
inboard from the wing root.
 Install a #2 button head screw on each side.
The root of the fuselage also has the GC
location marked with a pen. This location is
very forgiving; there is no need to move it
forward. The second BVM demo plane is
set slightly aft per pilot's choice.
Balance the model fully assembled, empty fuel tanks, gear down, and a full UAT. With
the correct CG, the model should balance level.
BVM ®2016 39 4/12/2019
