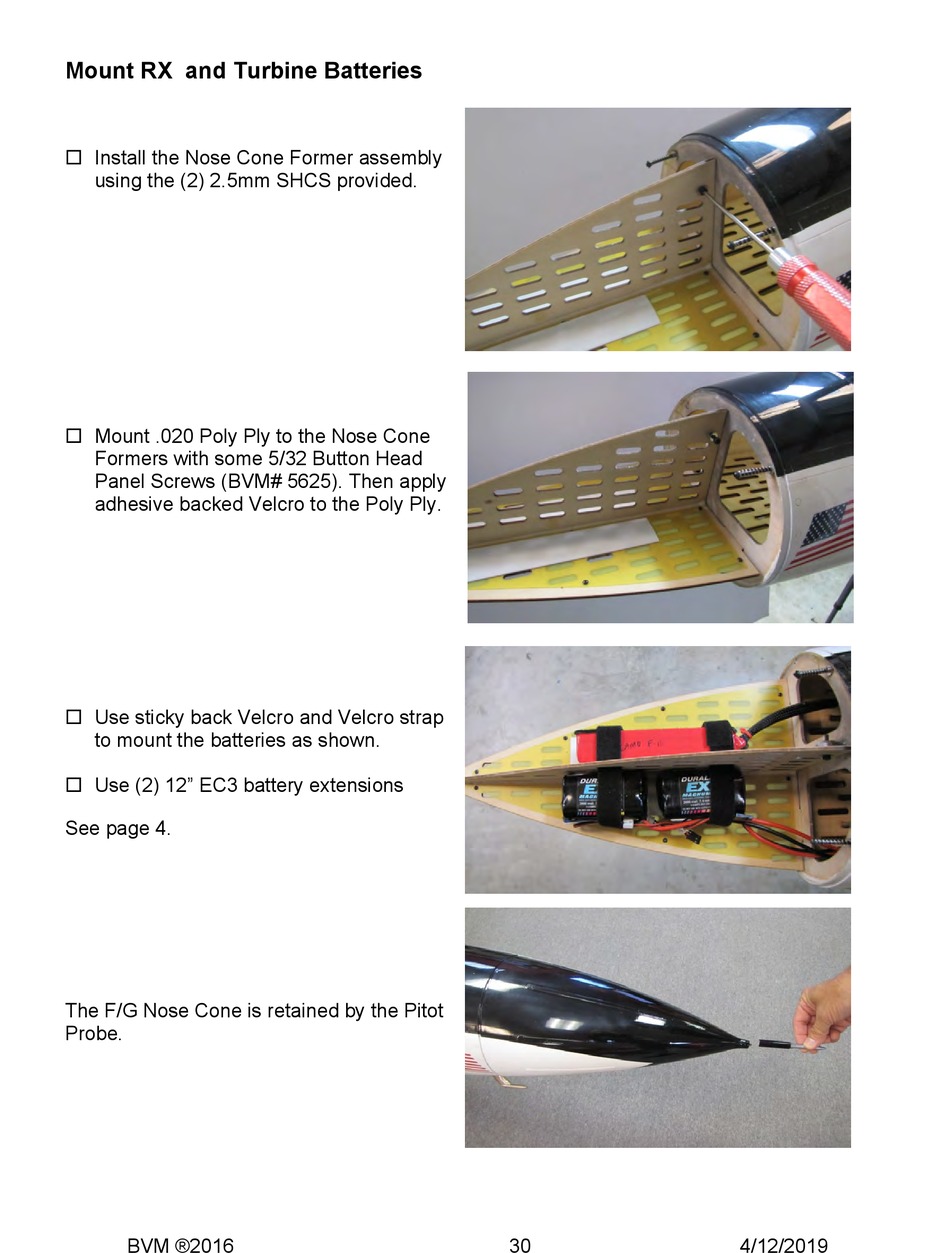

Mount RX and Turbine Batteries

 Install the Nose Cone Former assembly
using the (2) 2.5mm SHCS provided.
 Mount .020 Poly Ply to the Nose Cone
Formers with some 5/32 Button Head
Panel Screws (BVM# 5625). Then apply
adhesive backed Velcro to the Poly Ply.
 Use sticky back Velcro and Velcro strap
to mount the batteries as shown.
 Use (2) 12" EC3 battery extensions
See page 4.
The F/G Nose Cone is retained by the Pitot
Probe.
