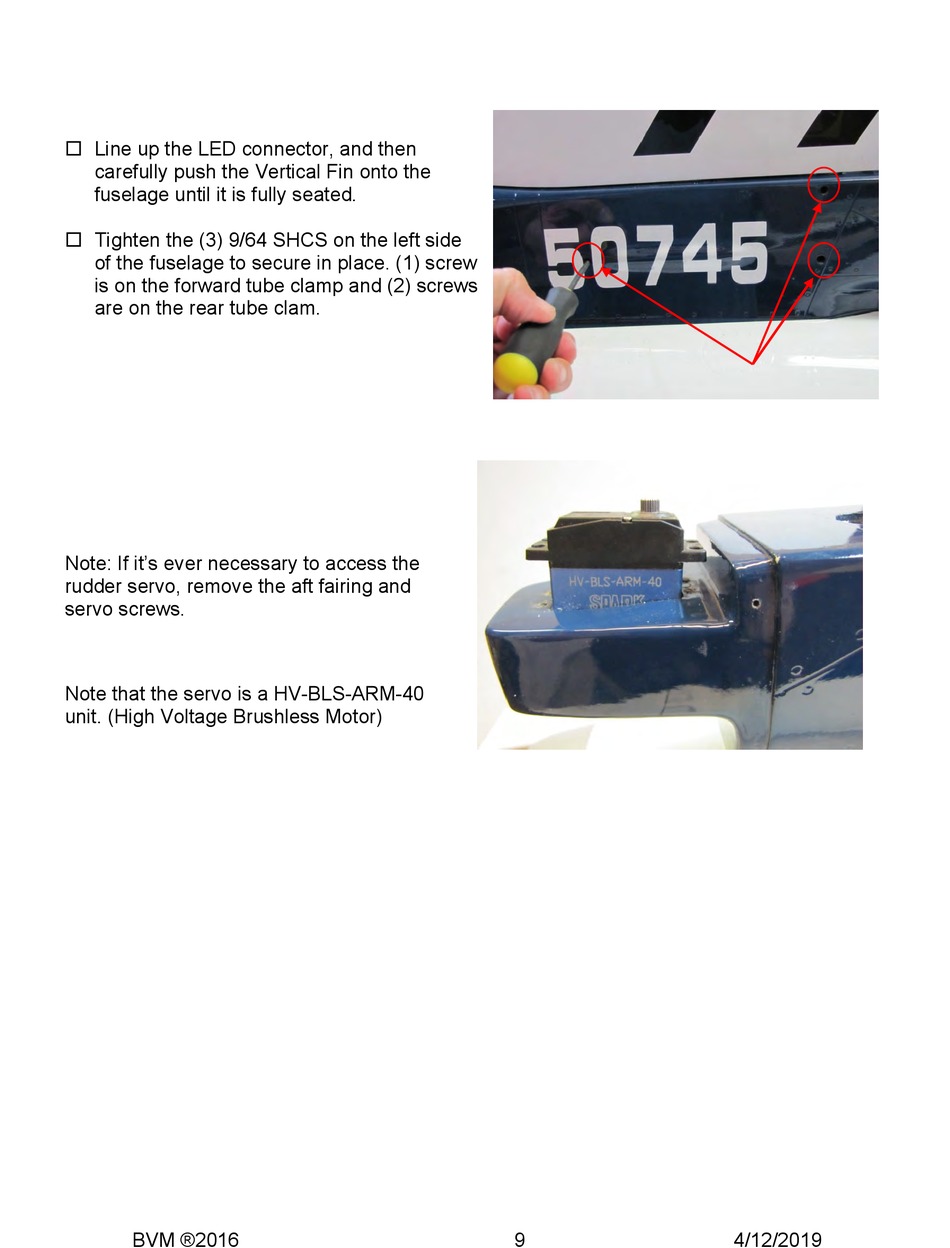

Line up the LED connector, and then
carefully push the Vertical Fin onto the
fuselage until it is fully seated.
Tighten the (3) 9/64 SHCS on the left side
of the fuselage to secure in place. (1) screw
is on the forward tube clamp and (2) screws
are on the rear tube clam.
Note: If it's ever necessary to access the
rudder servo, remove the aft fairing and
servo screws.
Note that the servo is a HV-BLS-ARM-40
unit. (High Voltage Brushless Motor)
BVM ®2016
9
4/12/2019
