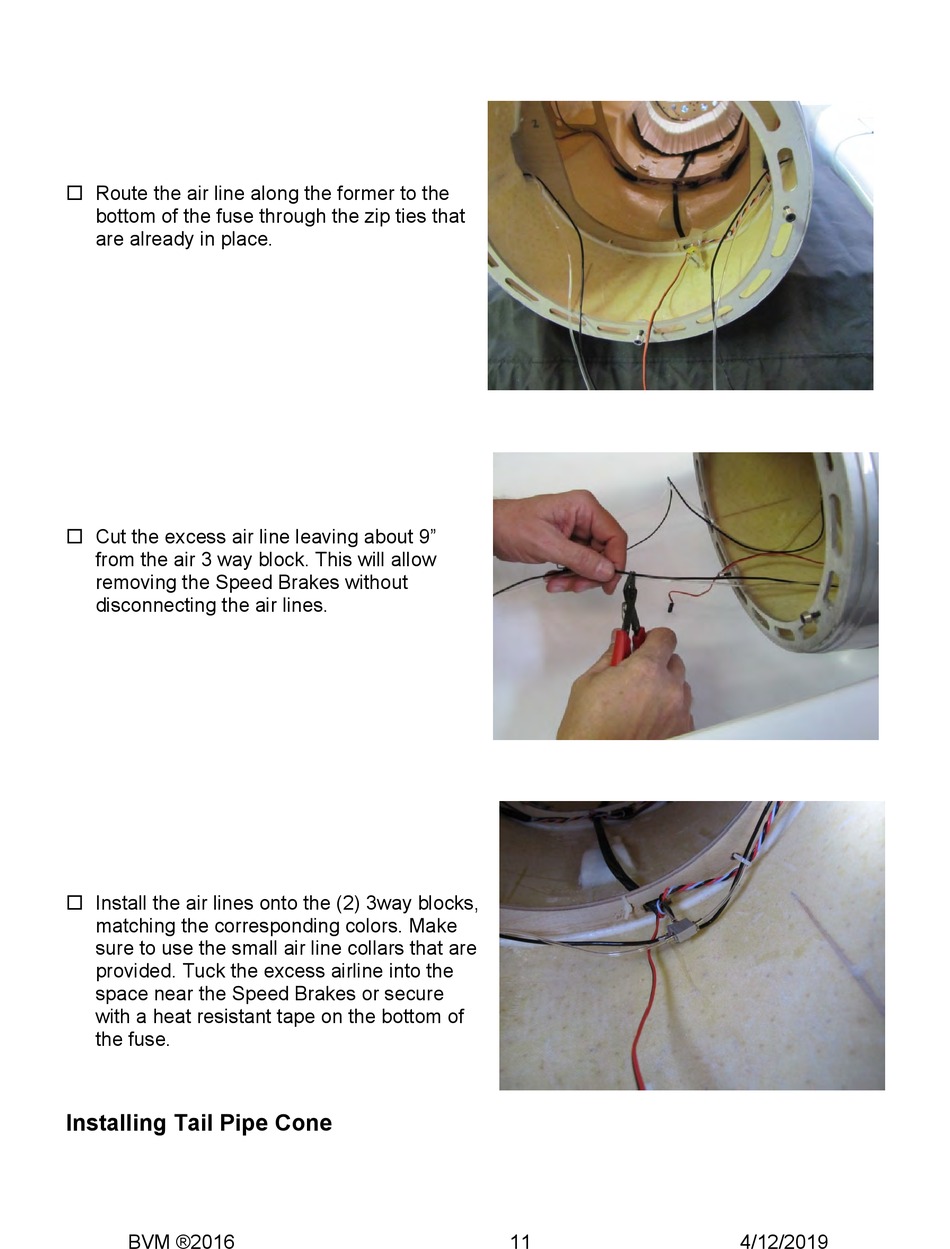

 Route the air line along the former to the
bottom of the fuse through the zip ties that
are already in place.
 Cut the excess air line leaving about 9"
from the air 3 way block. This will allow
removing the Speed Brakes without
disconnecting the air lines.
 Install the air lines onto the (2) 3way blocks,
matching the corresponding colors. Make
sure to use the small air line collars that are
provided. Tuck the excess airline into the
space near the Speed Brakes or secure
with a heat resistant tape on the bottom of
the fuse.

Installing Tail Pipe Cone

BVM ®2016
11
4/12/2019
