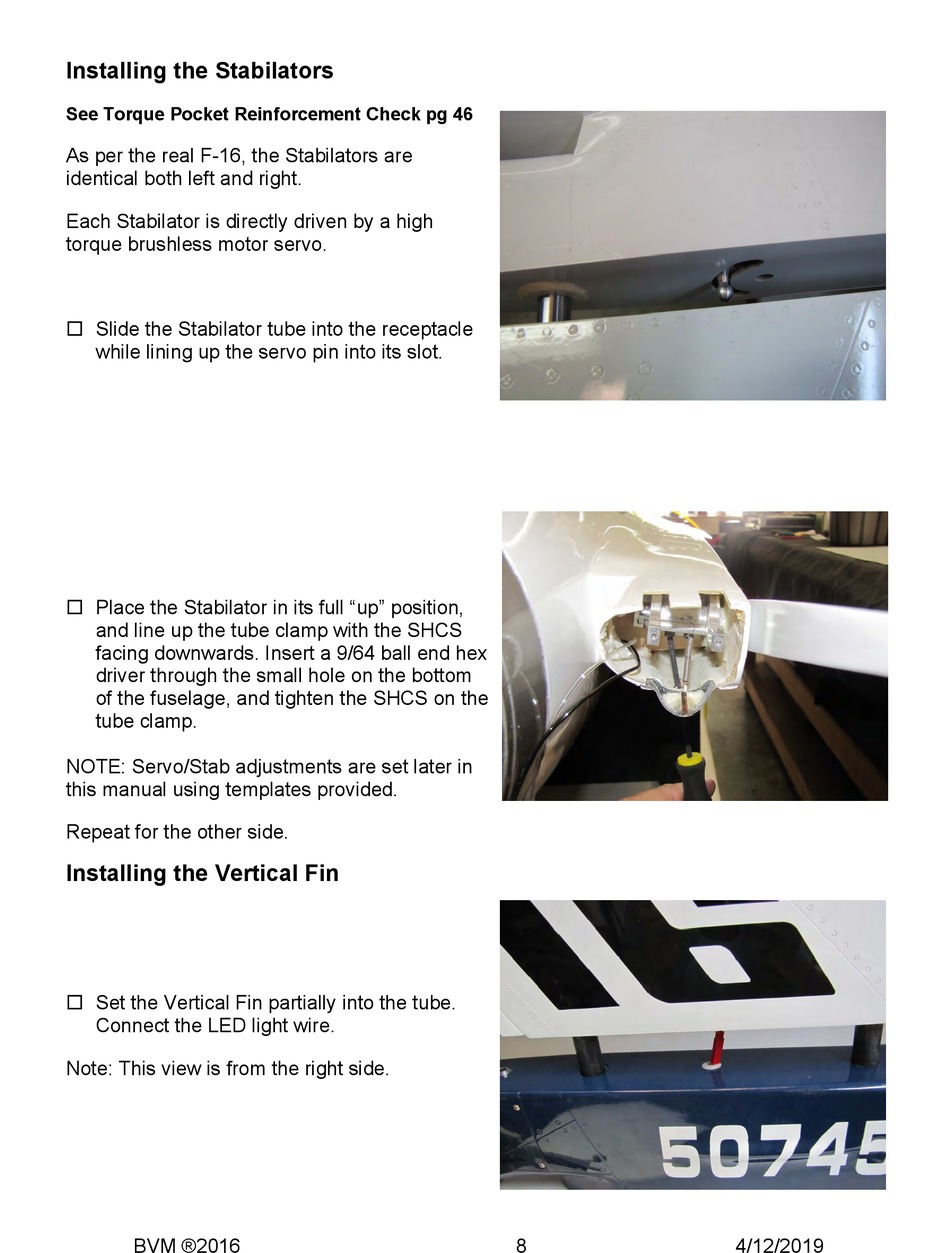

Installing the Stabilators

See Torque Pocket Reinforcement Check pg 46
As per the real F-16, the Stabilators are
identical both left and right.
Each Stabilator is directly driven by a high
torque brushless motor servo.
 Slide the Stabilator tube into the receptacle
while lining up the servo pin into its slot.
 Place the Stabilator in its full "up" position,
and line up the tube clamp with the SHCS
facing downwards. Insert a 9/64 ball end hex
driver through the small hole on the bottom
of the fuselage, and tighten the SHCS on the
tube clamp.
NOTE: Servo/Stab adjustments are set later in
this manual using templates provided.
Repeat for the other side.

Installing the Vertical Fin

 Set the Vertical Fin partially into the tube.
Connect the LED light wire.
Note: This view is from the right side.
BVM ®2016 8 4/12/2019
