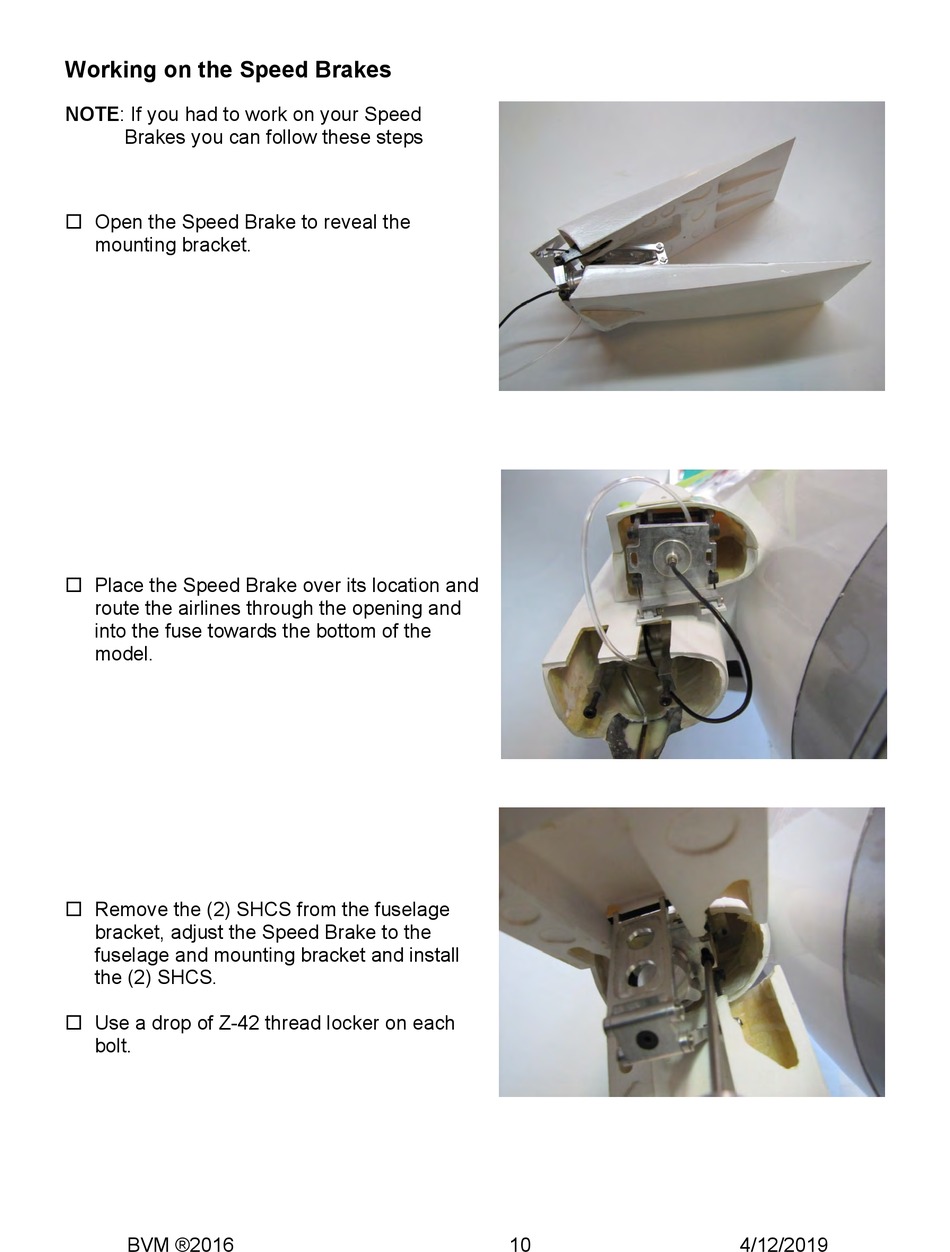

Working on the Speed Brakes

NOTE: If you had to work on your Speed
Brakes you can follow these steps
 Open the Speed Brake to reveal the
mounting bracket.
 Place the Speed Brake over its location and
route the airlines through the opening and
into the fuse towards the bottom of the
model.
 Remove the (2) SHCS from the fuselage
bracket, adjust the Speed Brake to the
fuselage and mounting bracket and install
the (2) SHCS.
 Use a drop of Z-42 thread locker on each
bolt.
BVM ®2016 10 4/12/2019
