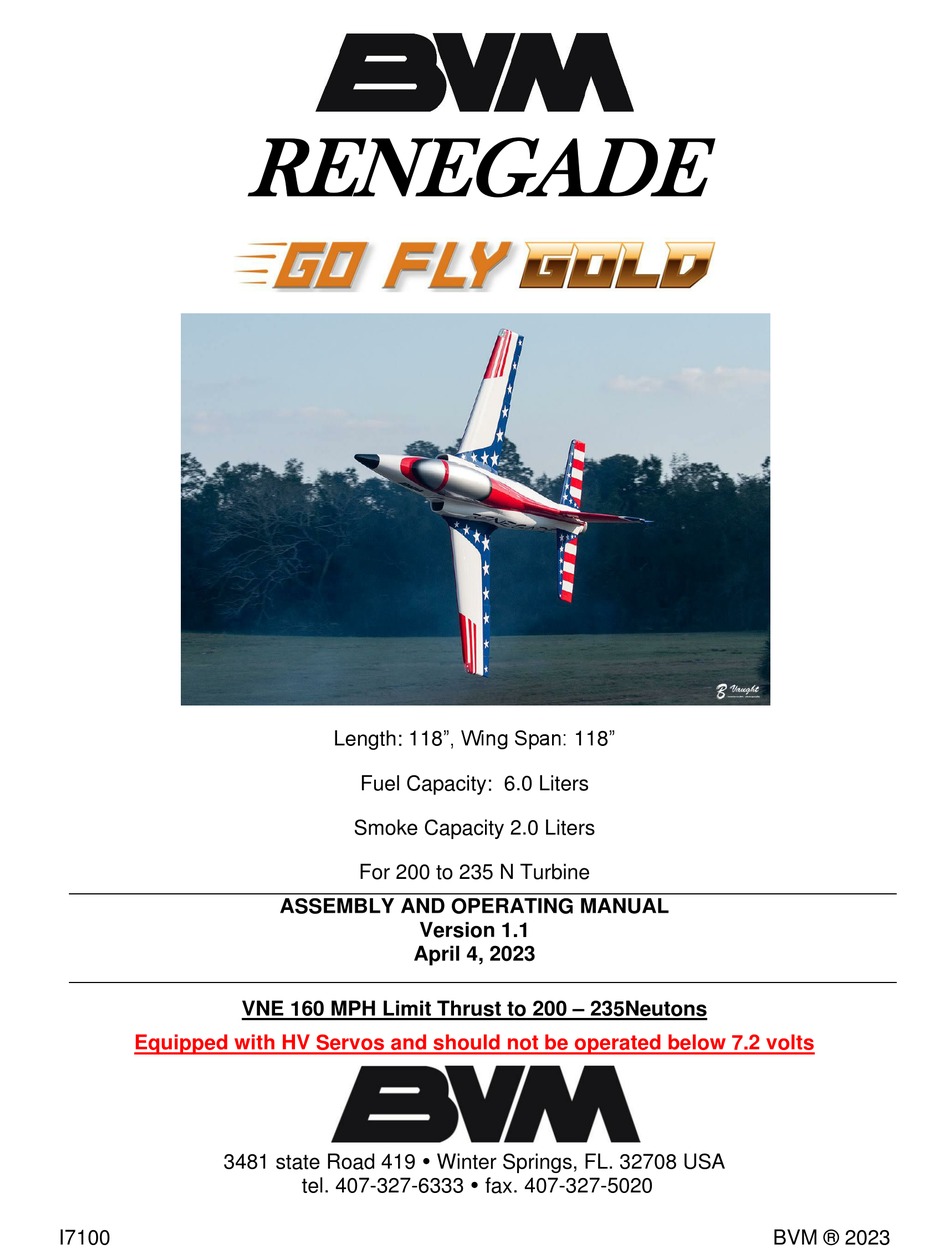

RENEGADE
Length: 118", Wing Span: 118"
Fuel Capacity: 6.0 Liters
Smoke Capacity 2.0 Liters
For 200 to 235 N Turbine
ASSEMBLY AND OPERATING MANUAL
Version 1.1
April 4, 2023
VNE 160 MPH Limit Thrust to 200 – 235Neutons
Equipped with HV Servos and should not be operated below 7.2 volts
3481 state Road 419 Winter Springs, FL. 32708 USA
tel. 407-327-6333 fax. 407-327-5020
I7100
BVM ® 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BVM Go Fly Gold Renegade
Summary of Contents for BVM Go Fly Gold Renegade
- Page 1 VNE 160 MPH Limit Thrust to 200 – 235Neutons Equipped with HV Servos and should not be operated below 7.2 volts 3481 state Road 419 Winter Springs, FL. 32708 USA tel. 407-327-6333 fax. 407-327-5020 I7100 BVM ® 2023...
-
Page 2: Table Of Contents
Disclaimer .......................... 1 List of BVM supplied items ....................1 Recommended Accessories ....................1 BVM Accessories Used in Demo Model ................2 Required Tools ........................2 List of Adhesives/Lubricants needed ................. 2 List of Adhesives/Lubricants not necessarily needed ............2 UNPACKING ........................ -
Page 3: Renegade
Notice: Do not use with incompatible components or alter this product in any way outside of the instructions provided by BVM. The BVM Renegade has been designed and flight tested around 200-235N class engines. Damage to the aircraft may result from exceeding this thrust limitation. -
Page 4: Bvm Accessories Used In Demo Model
RENEGADE Assembly & Operation Manual BVM Accessories Used in Demo Model You may have some of these products in your shop, but if not, refer to this list. 220 Class Turbine BVM Go Fly Over Flow Tank (BVM# 6037) Spektrum 20 Channel Power Safe Receiver (SPMAR20400T) (2) 7.4v Batteries Pulse 5000mAh RX... -
Page 5: Unpacking
After reading this entire manual, get familiar with the major kit components. Note: Damaged parts must be reported to BVM within 7 days of receiving your kit. Become familiar with the work completed at the factory. It is important that you inspect and approve this work now. - Page 6 There are 3 Servo connections and 1 Led wire to join. Use your favorite method of securing the servo connections together. BVM uses our Black Tape to secure these together. BVM Part # V-PNP-SP087 BVM ® 2023 2/2023...
-
Page 7: Install The Stabs
The Stab is secured by a single bolt through the fuse into the Carbon tab. You will need a 2 mm driver for this step. You can use BVM # PS-TO-0014 for this step. Install the vertical fin Connect the LED lead and secure with your favorite method. -
Page 8: Wing Preperation And Installation
9/64 ball wrench. There is 1 receptacle in the rear and 1 in the front. The front receptacle has 2 bolts. BVM # PS-TO-0008 WING PREPERATION AND INSTALLATION Lubricate the O-Rings with Super O- Lube (BVM#5779). -
Page 9: Installing The Wings
Connect your servo connections and your LED wires then secure with your favorite method. The wings are held by a front and rear receptacle. A 9/64 driver is all you need to secure the wings. BVM Part # PS-TO-0008 BVM ® 2023 2/2023... -
Page 10: Turbine Installation
1 inch from the beginning of the tailpipe. Use your favorite mounting hardware for this step. Note: Mount your Turbine, Pump and ECU in accordance to your manufactures recommendations. Make sure to center your Turbine in the Pipe. BVM ® 2023 2/2023... -
Page 11: Equipment Board Layout
Manufactures mounting instruction for your specific RC components. AIR VALVES The BVM demo Renegade uses the stock UAT the plane is shipped with. If you decide to use the supplied UAT you must hold the UAT vertical and shake the tank during the first run up to ensure all the air is out of the Filter bag inside the tank. -
Page 12: Fuel System Setup
2 are for smoke. For filling the Renegade we use the supplied quick Fill Valve. BVM mounted it to the outside of the fuse to make it easy to access. For the smoke we used a BVM Smoke Line Plug (BVM # PA-SR-0145) and a T fitting (BVM # V-PNP-SP003) in the system. -
Page 13: Wire Codes
RENEGADE Assembly & Operation Manual On the BVM demo model we use a 6mm ball valve (BVM # 5315) at the Smoke tube to stop the smoke from dripping into the Pipe during fill up and shutdown. Note: Smoke Fluid when run at low Turbine power settings can Ignite and cause fire to occur. - Page 14 Use an overflow tank while fueling to prevent spillage and to ensure fuel tanks are full before flight. Use BVM Overflow tank Part # BVM6037 Below, the overflow/taxi tank is connected. The vent plug is installed. BVM ® 2023...
-
Page 15: Center Of Gravity
The Factory Mark on the fuse is what the Demo Renegade uses. It is not uncommon to have to add weight to the nose. Control Surface Deflections and Expo Settings Note: The BVM Demo plane is set up using the following Expo percentages. Positive values are used on Spektrum and JR radios, Futaba uses negative. Control... -
Page 16: First Flight Profile
Make the first flight with the gyro “off”. See also BVM article “Gyro Sense”. Flight Time The BVM demo model’s transmitter timer is set for 6:45 min. On the first flight, land a couple minutes early to check fuel consumption. Adjust the flight timer accordingly.
