Mount Rx And Turbine Batteries; Flush Mount Vent And Overflow System - BVM GO FLY GOLD Assembly And Operating Manual

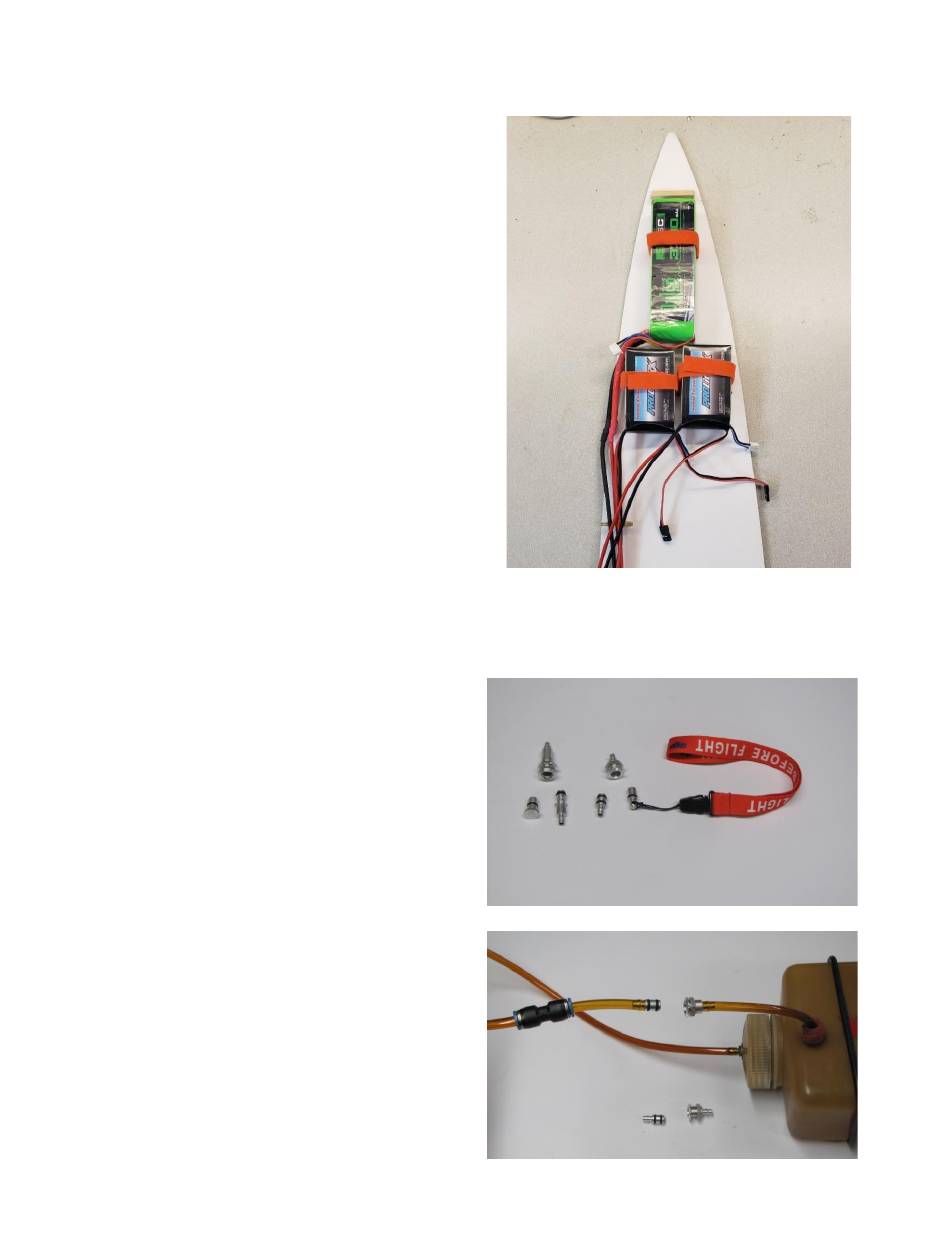

Mount RX and Turbine Batteries

RX Batteries and ECU Battery shown
mounted.
NOTE: Woods parts have a catalyzed sealer
on them.
The BVM Demo Model balances with this
configuration and 6 ounces of ballast.

Flush Mount Vent and Overflow System

A flush mounted vent system is used on
the fuel system. A magnetic vent plug
with red "Remove Before Flight" tag and
BVM Overflow/Taxi tank conversion
fittings are provided. (Tank not included)
Install the fittings to your overflow/taxi
tank. Use an overflow tank while fueling
to prevent spillage and to ensure fuel
tanks are full before flight.
Use BVM Overflow tank Part #BVM6047
BVM ® 2019
Ultra Bandit EVO
Assembly & Operation Manual
16 11/12/2019
