For each calling party number, enter a corresponding destination number in the Destination Number
column. Destination numbers may consist of a maximum of 24 characters. Digits 0 to 9, *, # and. (dot)
are allowed. Default: Blank.
•
Click Submit to save your entries. Close the window to return to the SIP Trunk page.
You can also configure the Calling Number Based Table from Advanced Settings. See
Number Determination"
•

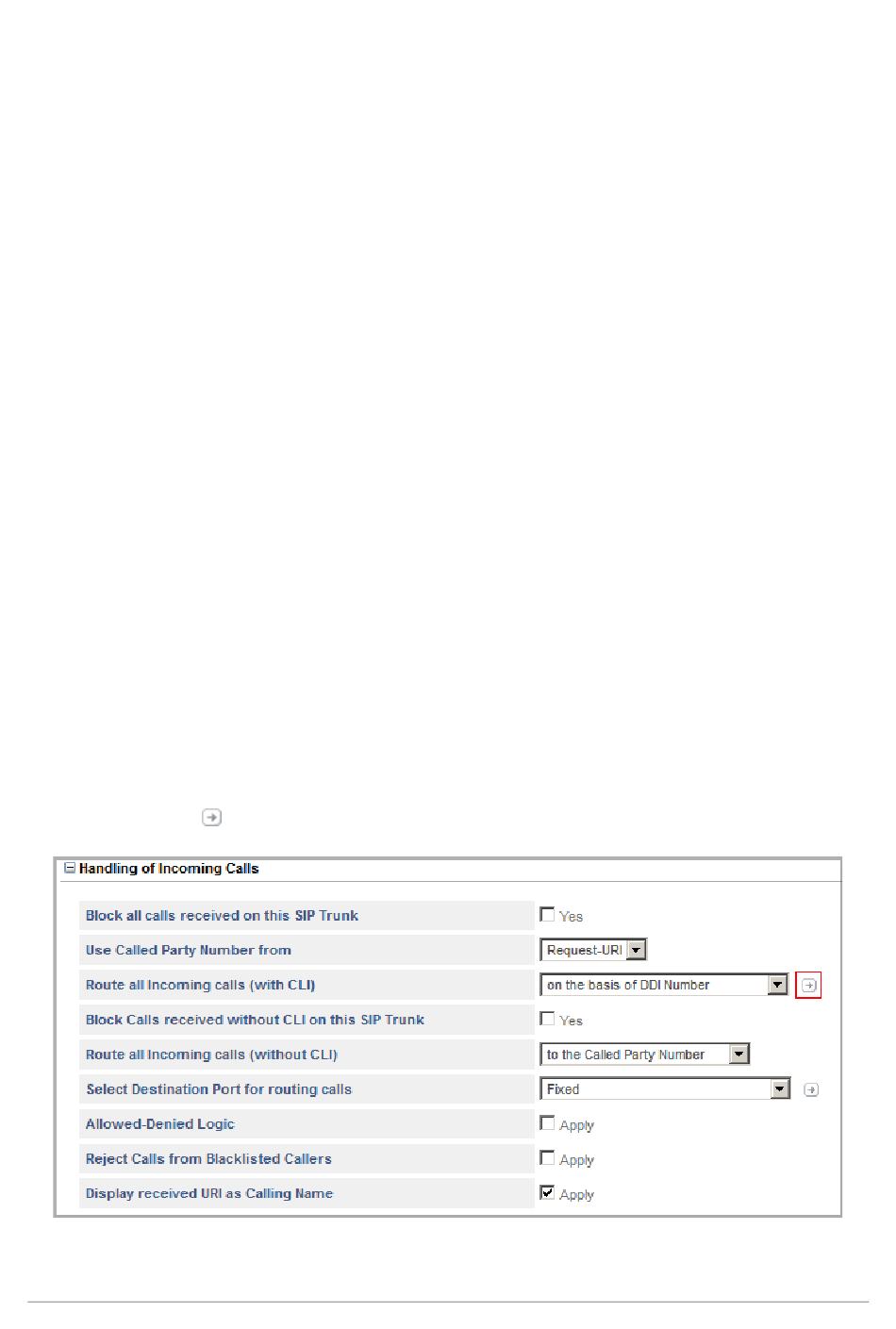

Select a method for routing incoming calls with CLI that do not match with any entries in the Calling Party
Number Based Table.
In the If no match found in the Calling Party Number Table, route calls box, click the desired method
from the following options for processing the call:
•
to a Fixed Destination Number
•
to the Called Party Number
•
on the basis of DDI Number
Default: to the Called Party Number.
Route on the basis of DDI Number
In this method, a call received on the SIP Trunk is routed to a specific number as per the DDI number received in
the SIP INVITE message.
You must configure the DDI numbers in the DDI Number Based Table. When there is an incoming call on the SIP
Trunk, SETU VFXTH will match the CLI of the number received with the entries of this table. If a match is found for
the number in the table, the call is routed to the destination port.
To apply this method, do the following:
•
In the Route all Incoming calls with CLI list, click on the Basis of DDI Number.
•
Click Settings
Matrix SETU VFXTH System Manual
under Advanced Settings for instructions.
.
"Destination
96
