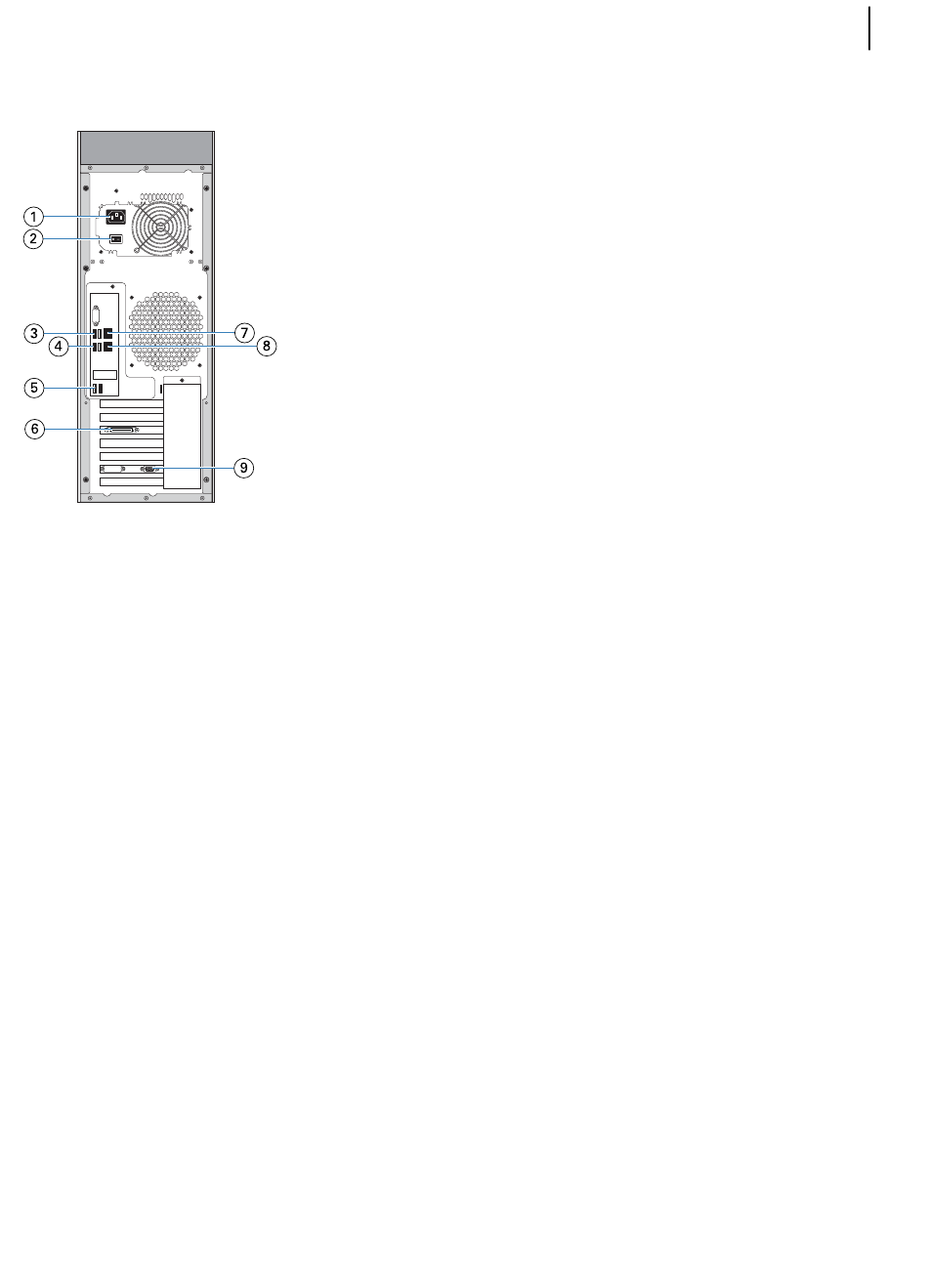

Figure 5: Canon imagePRESS Server B5000 connector panel
Callout
Refers to
1
Power connector
2
Power switch
I: Power ON
O: Power OFF
3
USB ports (x2)
4
USB ports (x2)
5
USB ports (x2)
6
Printer interface port
7
Network port (straight-through Ethernet port)
8
Crossover Ethernet port
9
Monitor (VGA) port
Start the imagePRESS Server
1 Make sure that the printer is on.
Note: The printer must be on before you start the imagePRESS Server.
2 Make sure that the imagePRESS Server power cable is connected.
