REFERENCE MANUAL
Oct. 1999

Advertisement

   Also See for Canon BJC-85

   Related Manuals for Canon BJC-85

   Summary of Contents for Canon BJC-85

  • Page 1

    REFERENCE MANUAL Oct. 1999...

  • Page 2: Table Of Contents

    Table of content Page 1. PRODUCT OUTLINE 2. CHANGES FROM THE BJC-80/80v 3. EXTERNAL APPEARANCE 4. SPECIFICATIONS 4.1 PRINTER SPECIFICATIONS 4.2 INTERFACE SPECIFICATIONS 4.3 PAPER SPECIFICATIONS 4.4 PHOTO BJ CARTRIDGE SPECIFICATIONS 5. OPERATION 5-1. FUNCTION SETTING 5.2 ERROR INDICATIONS 5-3. INK LOW WARNING RESET BY BUTTON OPERATION 5-4.

  • Page 3: Product Outline

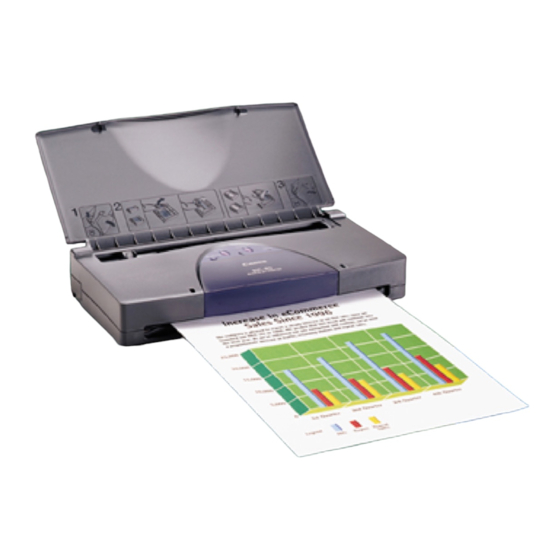

    1. PRODUCT OUTLINE The BJ M70 and the BJC-85 are portable, color BJ printers targeting the personal use market. As successive models of the BJC-80/80v, the following functions have been added, the ease of connection has been improved, and the functions as a portable space- saving printer has been strengthened.

  • Page 4: Specifications

    4. SPECIFICATIONS 4-1. PRIINTER SPECIFICATIONS Type Portable serial color bubble jet printer Paper feeding Auto sheet feed method Printing speed Burst HS: 434cps HQ: 346cps (when using the BC-10) Throughput: BC-10 New monochrome pattern (E) 5 ppm(HS) 3.9 ppm(Standard) New monochrome pattern (J) 5 ppm(HS) 4.3 ppm(Standard) BC-11e New color pattern (E)

  • Page 5: Interface Specifications

    4-2. INTERFACE SPECIFICATIONS The interface specifications of this printer is shown below. Bidirectional Centronics Interface (IEEE1284 compatible) Infrared Interface IrDA Interface Ver. 1.1 / IrTranP ASK Interface USB Interface <Difference from the BJC-80/80v> The specified version of IrDA is changed from Ver. 1.0 to 1.1. IrTranP compliant.

  • Page 6

    Maximum received 2048 byte/packet data size Modulation method 3/16 RZI (Return to Zero Invert): when the transfer speed is less than 115.2kbps 1/4 RZI (Return to Zero Invert): when the transfer speed is 0.576Mbps and 1.152Mbps 4 PPM (Pulse Position Modulation): when the transfer speed is 4Mbps 4-2-2.

  • Page 7

    <Technical explanation> USB is a serial interface which connects up to 127 peripheral devices to a host computer, and transmits data at a high-speed rate of 12Mbps. Hot plugging, in which connecting/disconnecting devices while the host or the printer is in use, is supported. Each device is connected to a hub's port, where each port's detection/disconnection status is returned to the host.

  • Page 8: Paper Specifications

    Government postcard (Weight: 90g / m , Thickness: 0.23 mm) Coated paper (Canon coated paper LC-301, A4/LTR) High resolution paper (Canon high resolution paper HR-101, A4/LTR) Glossy paper (Canon glossy paper GP-301, A4/LTR) Transparency film (Canon transparency film CF-102, A4/LTR)

  • Page 9: Photo Bj Cartridge Specifications

    4-4. PHOTO BJ CARTRIDGE SPECIFICATIONS Photo cartridge BC-12e BJ cartridge BC-12e: Ink cartridge replaceable type of color BJ cartridge (drop modulation adopted) Ink cartridge BCI-12Bk: Black (64 nozzles) Ink cartridge BCI-12Color: Yellow, Magenta, Cyan (24 nozzles x 3) No. of pages printed Approx.

  • Page 10: Operation

    5. OPERATION 5-1. FUNCTION SETTING Default setting The default setting can be set by button operation when the power is turned on. When the printer is turned on, hold down the POWER button until the beeper sounds the specified number of times for the desired function setting, and release the POWER button to set. Function Setting Mode Beeper...

  • Page 11

    <Difference from the BJC-80v> BJ M70 1) No setting regarding the LQ mode 2) The setting to enable/disable the ink low warning is added. Table 1 Table 2 Table 3 Table 4 Table 5 Operation mode change Print mode Automatic power off Disable Disable Smoothing...

  • Page 12: Error Indications

    5-2. ERROR INDICATIONS <Difference from the BJC-80/80v> Beeper BJC-80/80v BJC-85/BJ M70 Waste ink warning 4 times 5 times Low battery warning 3 times 4 times Ink low warning Once Twice Cartridge replacement compulsory Twice 3 times completion warning Diode sensor error 9 times ------* : Eliminated...

  • Page 13: Ink Low Warning Reset By Button Operation

    5-3. INK LOW WARNING RESET BY BUTTON OPERATION Ink low warning This printer detects the remaining ink level by counting the number of ejected ink dots in the same way as the BJC-80/80v. When the setting of the ink low warning is enabled, and the remaining ink gets low, the beeper sounds twice, and the ERROR LED blinks.

  • Page 14: Direct Printing Function Of The Image From Digital Cameras

    5-4. DIRECT PRINTING FUNCTION OF THE IMAGE FROM DIGITAL CAMERAS (BJ M70 only) <Difference from the BJC-80/80v> The new adoption of IrTranP has enabled the printing of data directly sent from digital cameras compliant to IrTranP standards, not through the host computer, but via IrDA communication.

  • Page 15: Special Tools

    6. SPECIAL TOOLS Clean spurs by using the spur cleaner in case spur marks are left on the print images. Special tool (part number) Remarks Spur cleaner (QY9-0055-000) For cleaning spurs Usage 1) Moisten the fabric part of the spur cleaner with approx. 5 cc of water. Moisten the fabric with the water, as shown below, so that the fabric absorbs the water from end to end.

  • Page 16: Parts List

    7. PARTS LIST BJC-85 BJ M70 COVER, INNER QB1-4449 QB1-4450 COVER, PANEL QB1-4451 QB1-4452 CONTROL PCB ASS'Y QG2-3096 QG2-3097 CHASSIS PLATEN UNIT QG5-1476 QG5-1481 FLASH-ROM QH8-0258 QH8-0259 Service parts other than the above are common for BJC-85 and BJ M70. See the BJC-85 and BJ M70 Parts Catalog for details.

  • Page 17: Circuit Diagram

    8. CIRCUIT DIAGRAM (Common for BJC-85 and BJ M70)

  • Page 18

    VSS_9 VSS_7 VSS_10 VSS_6 5VDD_B 5VDD_5 NTEST1 VSS_5 <04-B6> STBN IFD0 <04-B6> IFD0 SXOUT IFD1 <04-B6> IFD1 SXIN IFD2 <04-B6> IFD2 NTEST2 IFD3 <04-B6> IFD3 IFD4 <04-B6> IFD4 IFD5 <04-C6> IFD5 IFD6 <04-C6> IFD6 <04-C6> IFD7 IFD7 <04-D6> CS1N BUSY <04-D6>...

  • Page 19

    VCC2 PB7/INT0 <05-C7> T-OE PB6/TO6 <05-D7> E-OE PB5/INT7/TI7 <02-A4> INT7 PB4/INT6/TI6 <02-A4> INT6 PB3/TO5 <05-D7> TE-CLK PB2/TO4 <02-F6> <05-E7> TE-DIO PB1/INT5/TI5 <02-F6> <02-A4> INT5 P52/_HWR PB0/INT4/TI4 <02-F6> <02-A4> INT4 P53/_BUSRO PA3/TO3 <05-B7> CRREF2 <04-B7> P54/_BUSAK PA2/TO1 <05-B1> CRREF1 P55/R/_W PA1/TI0 <04-B7>...
