6.2.3

Inserting the Flow Sensor

1
2
3b
a
3
Page 60
1
4
3b
a
3
4
Serial no.: xx|8|401|yyy and 2401xxxxx

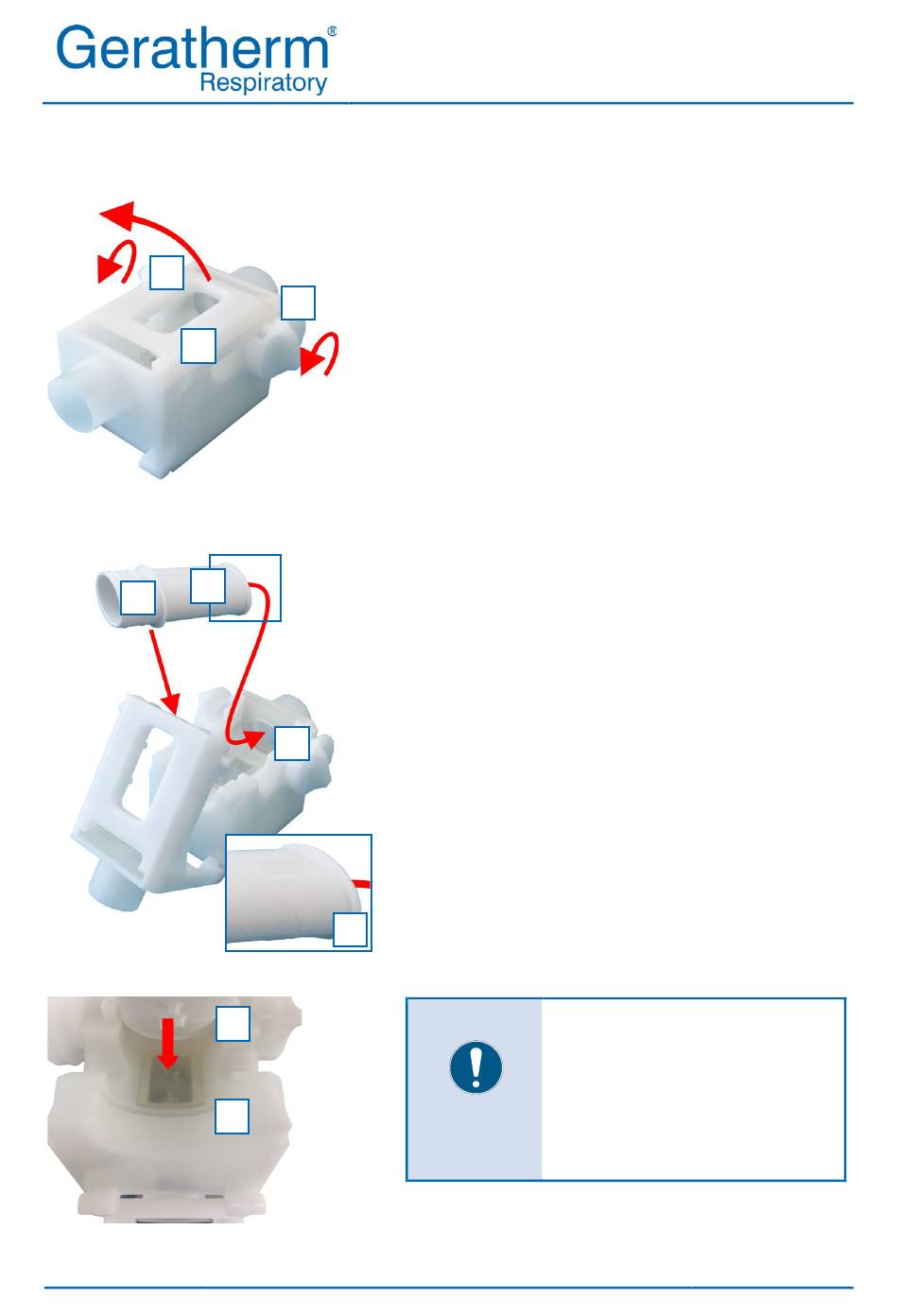

1. Open the closing clap [2]
on the flow unit
For this:
Turn the closure panel [1] on the left
and right side
and
Open the closure cap [2] upwards.
2. Insert flow sensor [3]
For this:
Carefully press the patient-far side with
connection piece [3b] into the holder
with silicone seal [4].
Press the patient-close side [3a] into
the receptacle.
3. Close and lock the closure panel
For this:
Proceed in reverse order as described
in point 1.
Measurement function
could be impaired.
Therefore:
Make sure that the
Attention
sensor pins [3a] inserted
SI093
in the silicone seal [4]!
