Functional disorders possible.
Reason: Components and e.g. plug connections can be
damaged. Therefore:
Attention
a
2
Page 56
•
All connections must be made carefully and without
too much force!
1
2
3
Serial no.: xx|8|401|yyy and 2401xxxxx

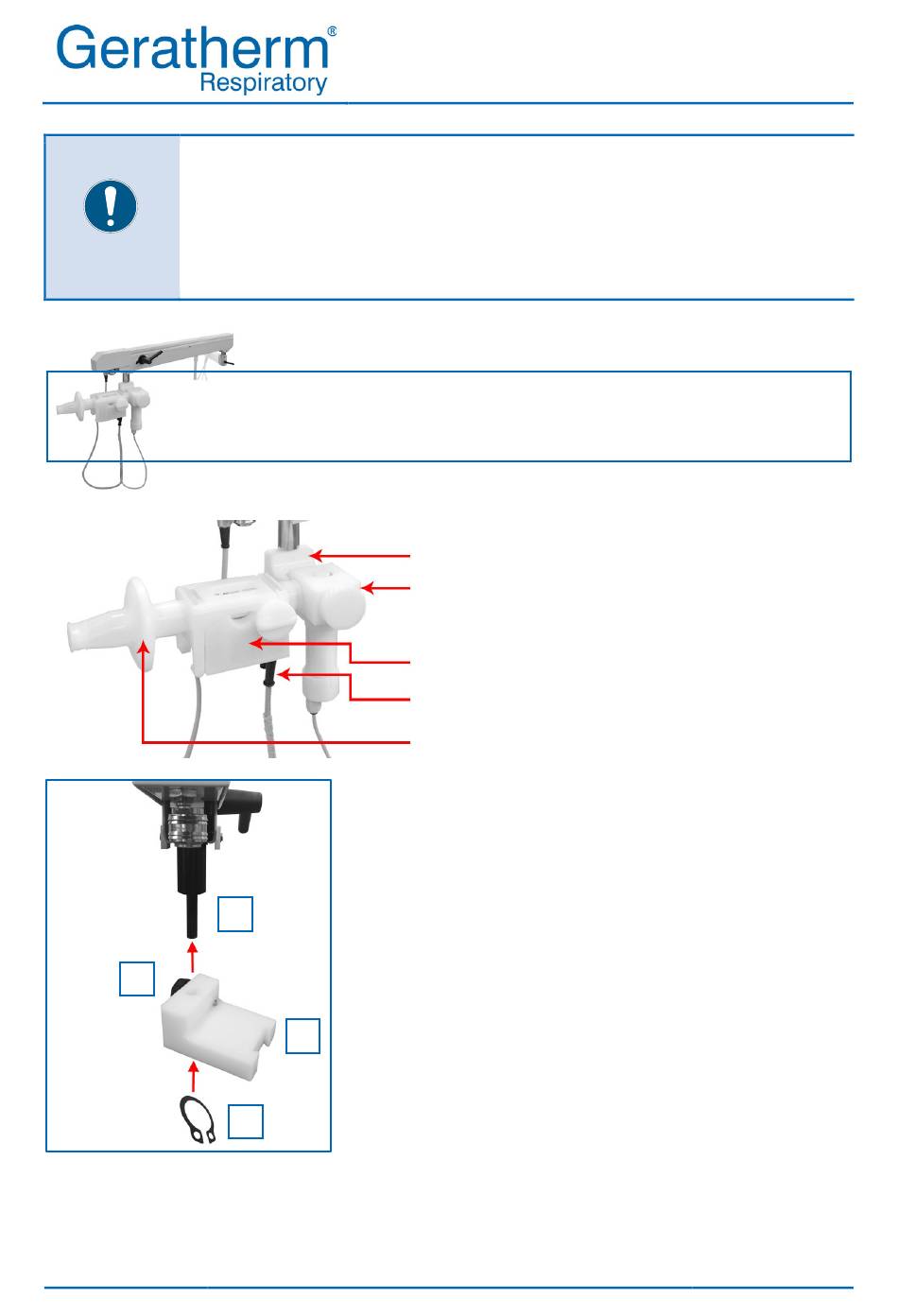

Flow measuring system and shutter
system on the height-adjustable arm
Mounting plate
Shutter block and shutter plug
(from prod. 11 / 2018)
Flow unit
Connection cable
Neumofilt
1. Attach the stand mounting plate [2]
to the height-adjustable arm
For this:
Put the mounting plate on the bolts
[1] on the height-adjustable arm.
By turning the rotary knob [2a] until
the mounting plate remains movable.
Attach snap ring [3] to bolt [1]
