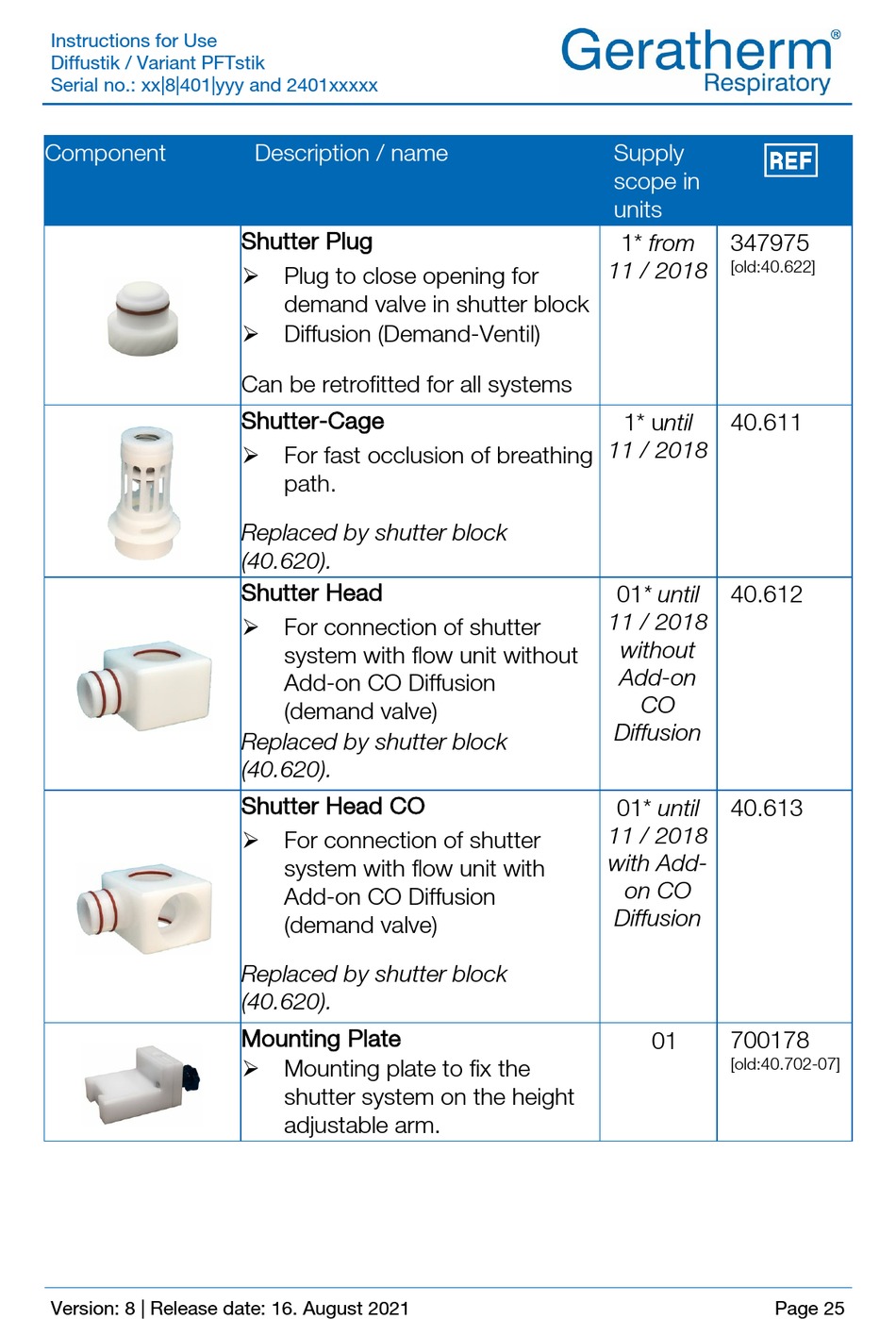

GERATHERM Diffustik Instructions For Use Manual page 25

Instructions for Use
Diffustik / Variant PFTstik
Serial no.: xx|8|401|yyy and 2401xxxxx
Component
Version: 8 | Release date: 16. August 2021
Description / name
Shutter Plug
 Plug to close opening for
demand valve in shutter block
 Diffusion (Demand-Ventil)
Can be retrofitted for all systems
Shutter-Cage
 For fast occlusion of breathing
path.
Replaced by shutter block
(40.620).
Shutter Head
 For connection of shutter
system with flow unit without
Add-on CO Diffusion
(demand valve)
Replaced by shutter block
(40.620).
Shutter Head CO
 For connection of shutter
system with flow unit with
Add-on CO Diffusion
(demand valve)
Replaced by shutter block
(40.620).
Mounting Plate
 Mounting plate to fix the
shutter system on the height
adjustable arm.
Supply
scope in
units
1* from 347975
11 / 2018 [old:40.622]
1* until 40.611
11 / 2018
01* until
40.612
11 / 2018
without
Add-on
CO
Diffusion
01* until 40.613
11 / 2018
with Add-
on CO
Diffusion
01 700178
[old:40.702-07]
Page 25
