- Page 1 Ergostik User Manual Version 1.2.2 Date 17th October, 2014...
-
Page 2: Table Of Contents
User Manual Ergostik ..............3 ELCOME TO HERRY ..................4 RGOSTIK .......... 4 EVICE DESCRIPTION AND SCOPE OF DELIVERY 2.1.1 ................5 COPE OF DELIVERY 2.1.2 ..................6 CCESSORIES 2.1.3 ..................8 PARE PARTS ....................9 ETUP 2.2.1 .......... 9 ONNECTING THE TUBES TO THE FRONT PANEL 2.2.2... -
Page 3: Welcome To Blue Cherry
The copyright for Blue Cherry is owned by Geratherm Respiratory. Permission is given to use the Blue Cherry software provided on the installation CD upon acceptance of the EULA. (see appendix) Blue Cherry™... -
Page 4: Ergostik
MVV or Pulse Oxymetry measurements. The Ergostik is designed with versatility in mind, and can be used in many areas including Sport Medicine, Pulmonary Rehabilitation, Pre- operative assessment and Cardio Pulmonary Exercise Testing. It can be operated in a stationary or mobile way. -
Page 5: Scope Of Delivery

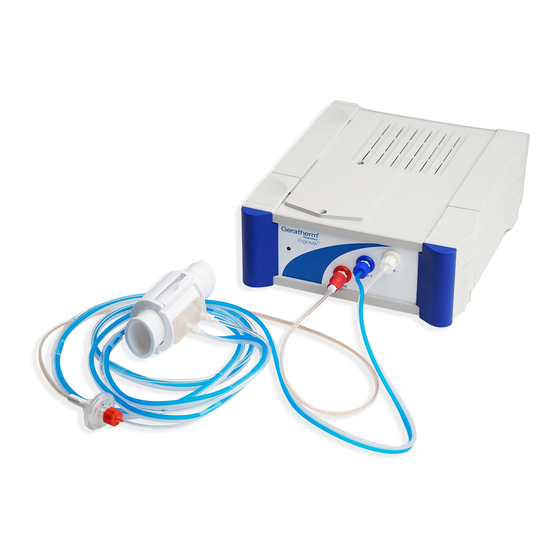

Blue Cherry has a unique report interface allowing the preview and print of chosen numeric and Graphic data and the editing of curves retrospectively. 2.1.1 Scope of delivery Ergostik includes the following components: Component Description Ergostik Cardiopulmonary exercise system Blue Cherry Software CD... -
Page 6: Accessories
User Manual Ergostik Component Description Power supply USB cable Silicone adapter to connect flow sensor to calibration pump. Note user manual for indications for the conduct of the calibration. Ambistik including USB Dockingstation 2.1.2 Accessories The following accessories can be purchased from you dealer:... - Page 7 User Manual Ergostik Component Description Part number Headgear M (for face mask Large, 10.812 Medium and Small) Headgear S (for face mask Extra 10.829 Small and Petit) Headgear (for face mask Pediatric 10.826 Small and Pediatric Large) Maskadapter 10.815 Mouthpiece including saliva tap 10.819...
-
Page 8: Spare Parts
User Manual Ergostik 2.1.3 Spare parts The following spare parts can be purchased from your dealer: Component Description Part number Permapure tube and filter 40.424 O2 Sensor 40.401 ERGOSTIK_MAN_ENG_V1.2.2_REV01.DOCX Page 8... -
Page 9: Setup
2.2.1 Connecting the tubes to the front panel On the front side of the Ergostik device are three connectors for the connection of the pressure tubes. These connectors are colour coded to ensure correct connection of the tubes. Flow- connector... -
Page 10: Flow Sensor Connection
User Manual Ergostik 2.2.2 Flow Sensor connection The double pressure tube and the gas sample tube should be connected to the flow sensor as illustrated in the following illustrations. Always ensure the tubes are firmly connected and are not bent. -
Page 11: Connection On The Rear Side Of The Ergostik
Connect the USB hook up of the Ergostik device with a spare USB connector of the computer while using the provided USB cable. -
Page 12: Connect Ambistik
2.2.5 Switch-on Ergostik Connect the power supply to the rear of the Ergostik then connect the power supply to a suitable power outlet. The device can then be switched on using the switch at the rear side of the unit. -
Page 13: Security
Geratherm Respiratory is responsible for the security and reliability of function of the Ergostik, as such only authorized personnel should perform changes or repairs to the system. Please consult your Geratherm Respiratory specialist service centre for any repairs. This... -
Page 14: Norms And Guidelines
Strong radio transmitters should not be used close to the device. Do not use mobile phones and cordless phones close to the device. There may be an influence to medical devices. The interference resistance is 3V/m. Do not use a higher level close to the Ergostik. ERGOSTIK_MAN_ENG_V1.2.2_REV01.DOCX Page 14... -
Page 15: Secure Use Of The Ergostik
Ergostik 2.3.2 Secure Use of the Ergostik The Ergostik is a cardiopulmonary exercise system. It is highly recommend that the user observes all warning notices in order to ensure a safe use of the device. The Ergostik should not be used in conjunction with multiple... -
Page 16: Cleaning And Disinfecting The Mask, Mouthpiece And Flow Sensor
User Manual Ergostik Disconnect the device from power supply before cleaning. Wipe the housing and the PC using a soft cloth dampened with a non-abrasive cleaning solution and warm water. Remove excess fluids using a dry cloth. For housing and PC use a surface wipe disinfection. Please see additional notes in section disinfection. -
Page 17: Combination With Other Devices
User Manual Ergostik 2.3.4 Combination with other devices Connecting additional USB devices and high processor load can reduce the sample rate and therefore cause an error. We strongly recommend not connecting additional USB devices except mouse, keyboard and printer and not installing additional software. - Page 18 User Manual Ergostik Situation Medical used room Non-medical Possible used room solution Within patient Out of area patient area resource A and B within patient area IEC 60601 IEC 60601 resource A and B for B: additional within patient area...
-
Page 19: Disposal
2013. The identifier |8|201| is a product specific code. The remaining digits define the device number of the Ergostik. In this example number 1. REF: designates the part number for the Ergostik 40 400. -
Page 20: Used Symbols
Separate collection of electro and electronic devices IPX0 Indicates no protection against dripping water Manufactured according RoHS directive 2002/95/EC Geratherm Respiratory devices carry this CE no according to directive 93/42 ECC for medical devices and fulfil the requirements of annex II 0494 of the directive ERGOSTIK_MAN_ENG_V1.2.2_REV01.DOCX... -
Page 21: Maintenance
User Manual Ergostik Maintenance The Ergostik has been designed to ensure it is a low maintenance device. Only minor maintenance is required to ensure trouble free operation. Repair and maintenance should only be done by authorized service partner of Geratherm Respiratory. -
Page 22: Replacement Of Nafion ® Sampling Line And Filter
Both items may only be purchased from a local Geratherm Respiratory service partner. Saliva or high humidity within the tube can affect the measuring accuracy of the Ergostik. The tube and filter should be replaced in this case. ERGOSTIK_MAN_ENG_V1.2.2_REV01.DOCX Page 22... -
Page 23: Warranty
Geratherm Respiratory, and respectively equal to installation date if purchased from a sales partner. All service must be provided by Geratherm Respiratory or an authorized service partner of Geratherm Respiratory. Geratherm Respiratory will not accept warranty claims on any unauthorised repairs. -
Page 24: Technical Data Ergostik
User Manual Ergostik Technical Data Ergostik Modifications are not permitted with this device Technical Data: Dimensions: 210 mm x 175mm x 75mm (L x w x h) Weight: 1120 g Electrical data: IP protection type: IPX0 IEC 529 Protection class: Classification according to IIa 93/42/EWG date June 14th 1993 14.06.93... -
Page 25: Technical Data Pulstik
User Manual Ergostik Technical Data Pulstik Modifications are not permitted with this device Technical Data: Dimensions: 76,5 mm x 30mm x 18,5mm (L x w x h) Weight: 20 g Electrical data: IP protection type: IPX0 IEC 529 Classification according to...
