Instructions for Use
Diffustik / Variant PFTstik
Serial no.: xx|8|401|yyy and 2401xxxxx
7.4

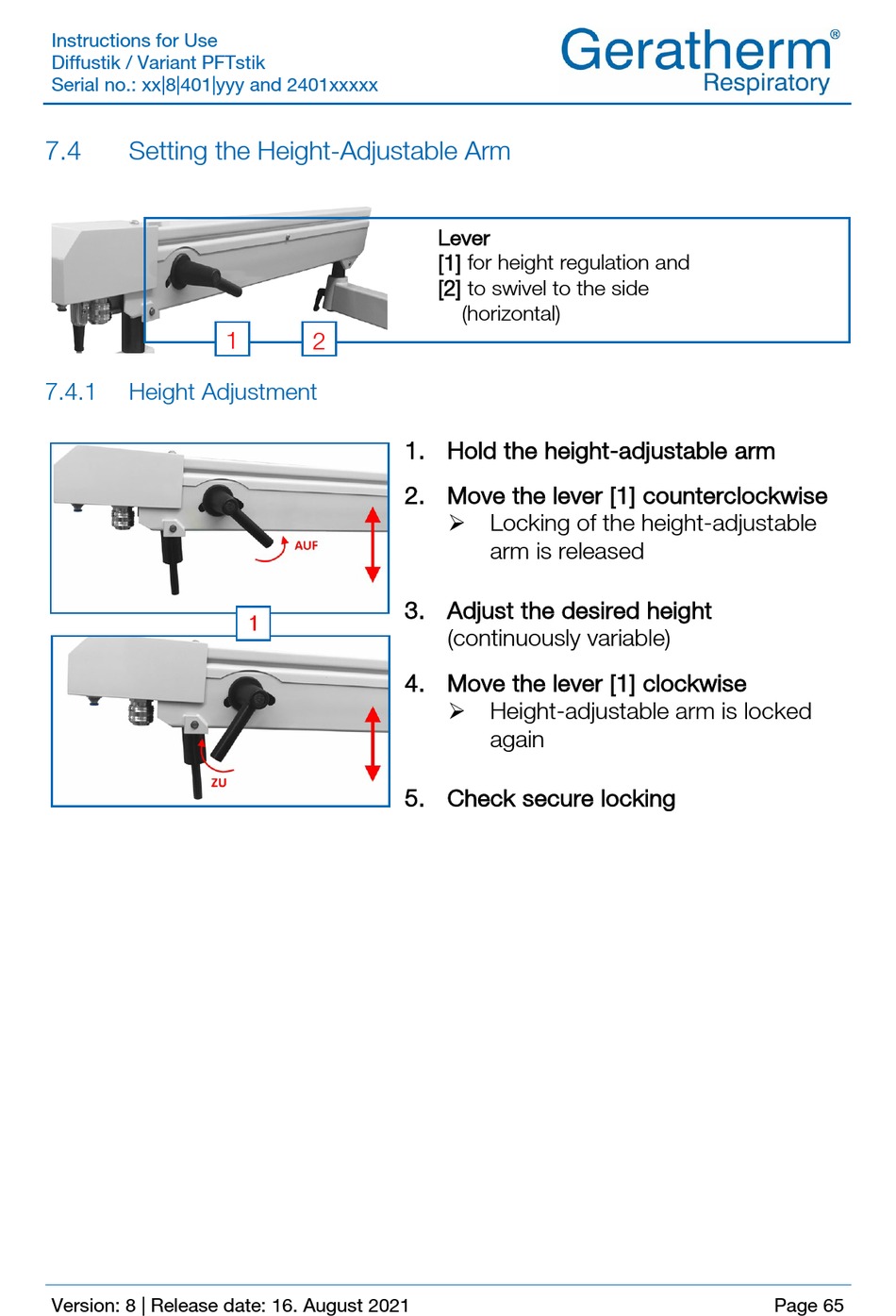

Setting the Height-Adjustable Arm

7.4.1

Height Adjustment

Version: 8 | Release date: 16. August 2021
1 2
1
Lever
[1] for height regulation and
[2] to swivel to the side
(horizontal)
1. Hold the height-adjustable arm
2. Move the lever [1] counterclockwise
 Locking of the height-adjustable
arm is released
3. Adjust the desired height
(continuously variable)
4. Move the lever [1] clockwise
 Height-adjustable arm is locked
again
5. Check secure locking
Page 65
