Overview Of The Complete System Of The Pftstik Variant - GERATHERM Diffustik Instructions For Use Manual

Incl. system variant pftstik

Hide thumbs Also See for Diffustik:

Table of Contents

Instructions for Use

Diffustik / Variant PFTstik

Serial no.: xx|8|401|yyy and 2401xxxxx

4.1.2

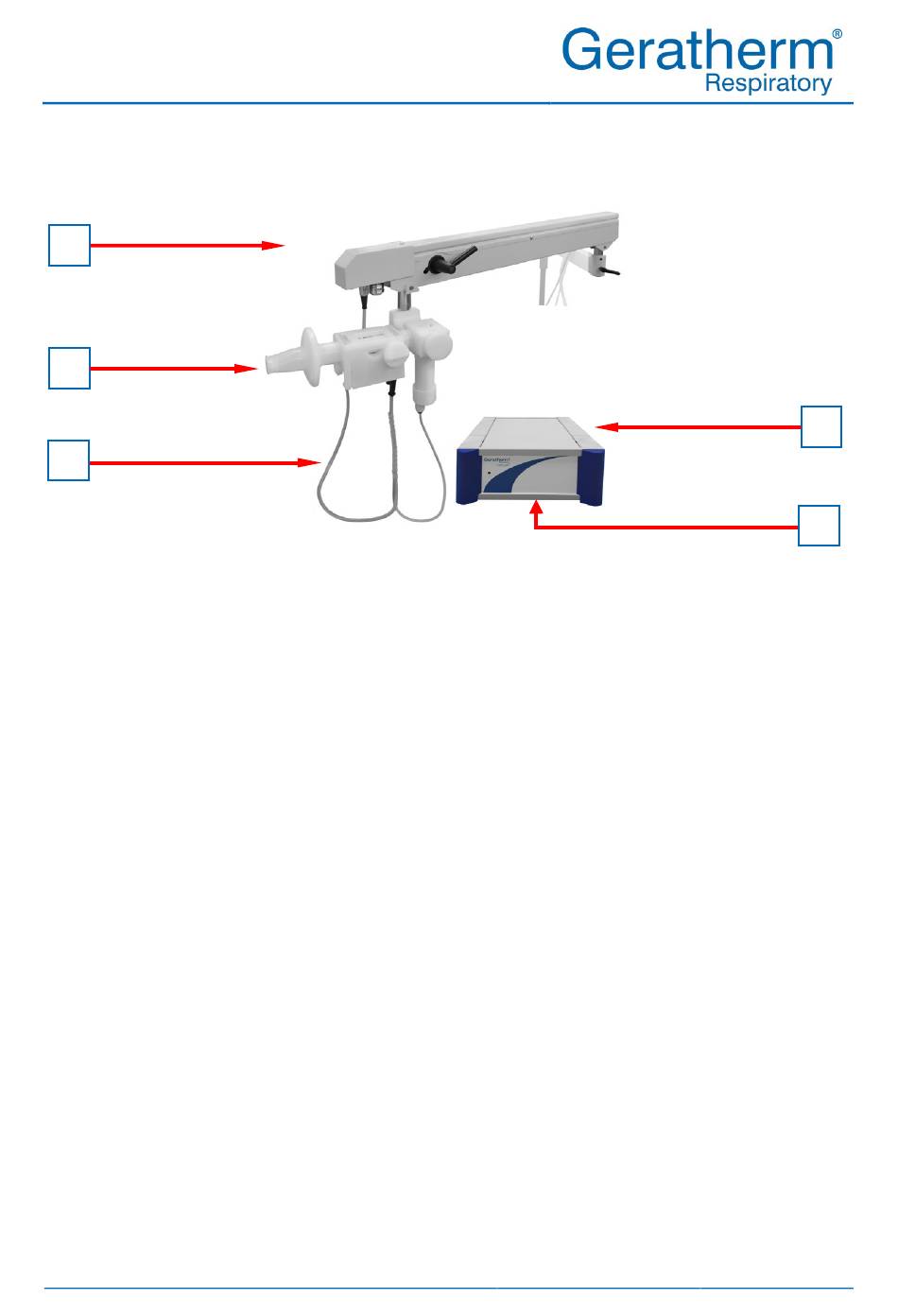

Overview of the Complete System of the PFTstik Variant

[1] Movable arm for connection of [2]

[2] Flow-measuring and shutter system (see also chap. 6.2.1 und 6.2.2)

[3] Connections for gas sample and gas supply CO Diffusion

(see also chap. 4.1.3.3

[4] Diffustik / Variant PFTstik (see also chap. 4.1.2)

[5] Type label on the bottom of the case (see also chap. 14)

Version: 8 | Release date: 16. August 2021
